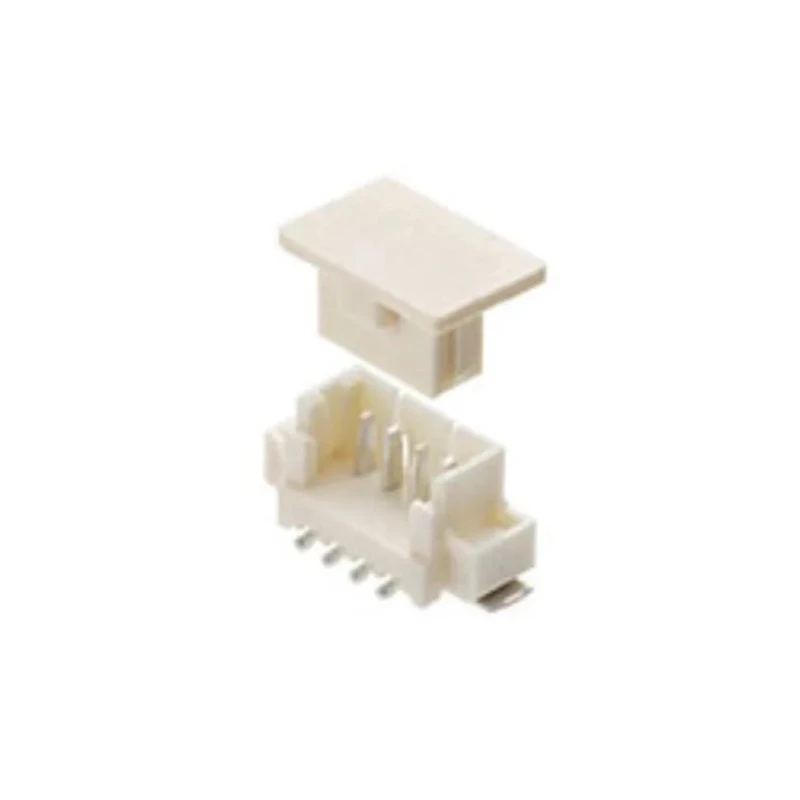

Molex PicoBlade Series Vertical Surface PCB Header 3 Contacts 1.25 mm Pitch 1 Row Shrouded 53398-0367

Molex 53398-0367 PicoBlade Series Vertical Surface PCB Header is designed as a 3-contact connector with 1.25 mm pitch in a single row configuration featuring a shrouded vertical housing. This PCB header offers a surface mount termination type suitable for mounting onto printed circuit boards efficiently and securely. The housing is made of natural nylon, which provides mechanical strength and electrical insulation for reliable performance in electronic assemblies.

The contacts are constructed of phosphor bronze for excellent conductivity and durability, with a tin plating finish to resist corrosion and ensure stable electrical connection. It supports an operating voltage of 125V and a current rating of 1A, making it ideal for low-current electronic and industrial applications.

This header is rated to operate within -40°C to +85°C, permitting use in a variety of environmental conditions including industrial and commercial electronics. The male contact orientation complements mating connector parts with a tail pin length of 0.60 mm and mating pin length of 2 mm for secure insertion.

It is UL E29179 approved, underscoring compliance with safety and quality standards, and is manufactured in Malaysia to stringent quality controls.

Applications for this Molex PicoBlade vertical PCB header include electronic component assemblies in manufacturing, electronics prototyping, custom PCB development, and other industrial or commercial PCB interfacing tasks.

Features a vertical orientation with surface mount termination for PCB mounting. Utilizes a natural nylon housing material ensuring durability and insulating properties. Contact material is phosphor bronze with tin plating for reliable electrical conductivity.

Rated for 125V voltage and 1A current to suit low power applications. Operates reliably within a temperature range of -40°C to 85°C. Includes a single row configuration with 3 male contacts for compact design. Tail pin length is 0.60 mm and mating pin length is 2 mm for effective mating.

Complies with UL E29179 standards ensuring safety and quality. Manufactured in Malaysia with high-quality build standards. Explore our range of Molex connectors and PCB Headers for industrial and commercial electronics assembly on EnvMart’s platform.
