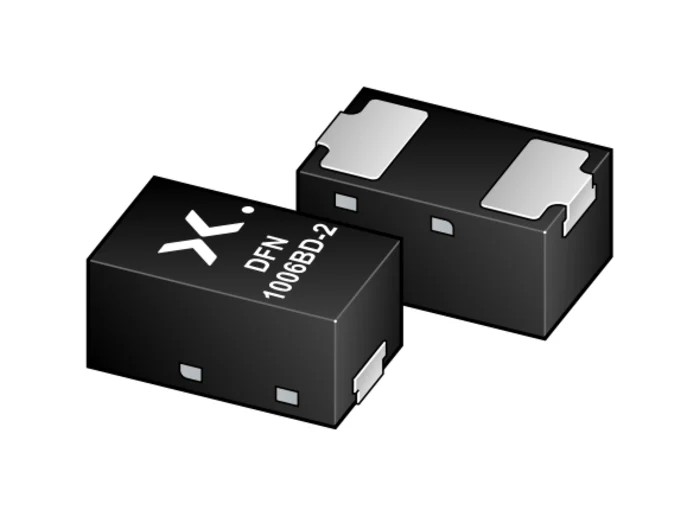

Nexperia 1.36 V Zener Diode Single 365 mW 5% Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C36YL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C36YL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 36V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 350Ω |
| Typical Voltage Temperature Coefficient | 30.4mV/K |
Key Features
- Operates with a nominal Zener voltage of 36 V.
- Supports maximum power dissipation up to 365 mW.
- Surface mount type with a compact DFN1006BD-2 package.
- Features a low test current of 50 µA ideal for low bias and portable applications.
- Has a temperature tolerance of ±5% with working voltage range from 1.8 V to 75 V.
- Maximum reverse leakage current rated at 50 nA ensuring low leakage performance.
- Meets automotive standard AEC-Q101 compliant for quality assurance.
- Suitable for use in general voltage regulation and low current regulation functions.
Product Description
Nexperia BZX8850S-C36YL Zener Diode is a single low-current voltage regulator diode intended for use in electronic and industrial applications requiring precise voltage regulation. It comes in an ultra small DFN1006BD-2 leadless surface mounted device (SMD) plastic package with side-wettable flanks for reliable PCB mounting.
This device provides a maximum power dissipation of 365 mW and features a nominal Zener voltage of 36 V with ±5% tolerance, making it suitable for low noise and portable battery-powered circuits. Its low test current of 50 µA makes it ideal for low bias current scenarios.
The Zener diode operates over a temperature range of -55°C up to 150°C, ensuring robust performance in demanding industrial and automotive environments. Compliance with the automotive standard AEC-Q101 highlights its suitability for automotive electronics.
Compact dimensions with a height of 0.47 mm and length of 1 mm enable use in space-constrained applications. Its maximum reverse leakage current of 50 nA and maximum Zener impedance of 350 Ω contribute to stability and low power losses.
This part is recommended for use as a voltage regulator in electronic components and systems, including semiconductor devices for power management and protection. Common use cases include industrial controls, telecommunications equipment, automotive electronics, and general electronic circuits requiring voltage stabilization.
Operates at a nominal Zener voltage of 36 V. Provides effective voltage regulation at low test currents. Suitable for surface mounting with a 2-pin DFN1006BD-2 package. Low leakage current enhances circuit reliability. Compact form factor supports miniaturized electronic designs.
Wide operating temperature range for harsh environments. AEC-Q101 compliant suitable for automotive applications. Voltage temperature coefficient of 30.4 mV/K ensures consistent performance.
Choose this Nexperia Zener diode for dependable voltage regulation in industrial, automotive, and electronic manufacturing projects. Explore additional Nexperia semiconductor components and other Zener Diodes available on EnvMart for your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 36 V.
This model supports a maximum power dissipation of 365 mW.
It operates over a temperature range of -55°C to 150°C.
The dimensions of the DFN1006BD-2 package are 1 mm in length and 0.47 mm in height.
The maximum reverse leakage current is rated at 50 nA.
The test current for this model is 50 µA.
Yes, it meets the automotive standard AEC-Q101.
The maximum Zener impedance is 350 Ω.
It is suitable for general voltage regulation and low current regulation functions in electronic components and systems.
The working voltage range is nominally from 1.8 V to 75 V.
This chip contains one element per chip.
It uses a surface mount type with a 2-pin configuration.
