Infineon 1200 V 20 A SiC Schottky Diode 2-Pin TO-263 Package IDK20G120C5XTMA1

Free Delivery in India | Lowest Global Shipping Charges

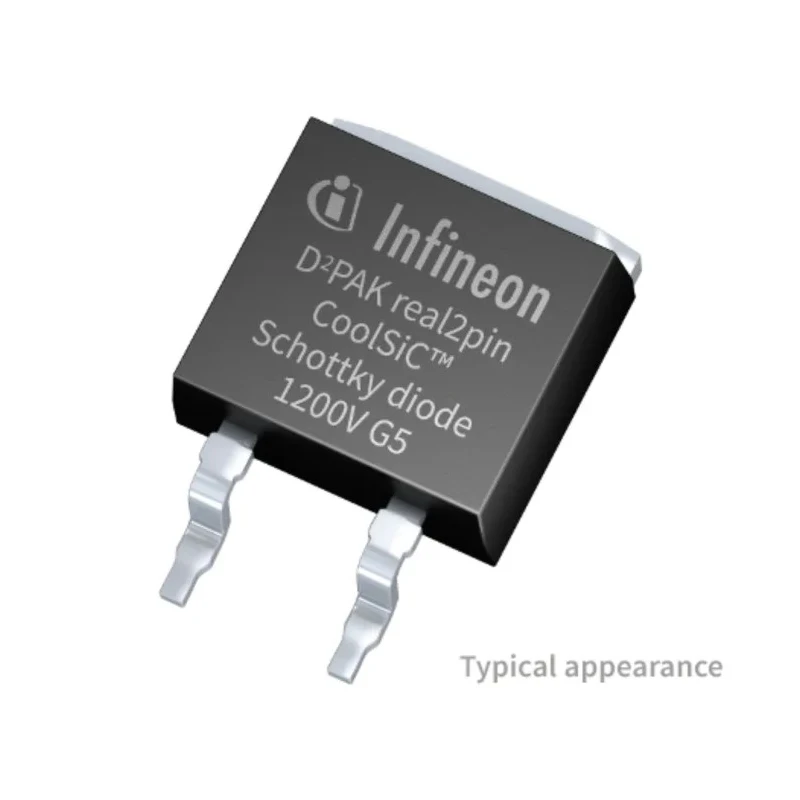

Infineon 1200 V 20 A SiC Schottky Diode 2-Pin TO-263 Package IDK20G120C5XTMA1

Name: Infineon 1200 V 20 A SiC Schottky Diode 2-Pin TO-263 Package IDK20G120C5XTMA1
Brand: Infineon
SKU: 178524
Price: 7.28 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	IDK20G120C5XTMA1
Mount Type	SMD
Series	IDK20G120C5
Maximum Operating Temperature	175°C
Package Type	TO-263
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	123μA
Peak Non-Repetitive Forward Surge Current Ifsm	198A
Maximum Forward Voltage Vf	1.8V

Key Features

Low forward voltage of 1.8 V reduces conduction losses during operation.
Continuous current rating of 20 A supports sustained load conditions reliably.
High peak reverse repetitive voltage of 1200 V enables robust high-voltage blocking.
Peak non-repetitive surge current tolerance of 198 A withstands transient events effectively.
Operating temperature range from −55°C to 175°C suits demanding environments.
Single Schottky rectifier diode configuration for fast switching applications.
RoHS compliant, ensuring environmental and safety standards compliance.
2-pin design facilitates surface mounting on power assemblies with TO-263 package.

Product Description

Infineon IDK20G120C5XTMA1 is a silicon carbide (SiC) Schottky diode designed for high-voltage power conversion and switching applications. It is supplied in a TO-263 package suitable for surface-mounted assemblies requiring efficient thermal management. The diode provides a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 1200 V, making it ideal for industrial power modules, DC-DC converters, and inverter front-end circuits.

This diode features a low forward voltage drop of 1.8 V, which significantly reduces conduction losses, enhancing energy efficiency in power supplies. It withstands peak non-repetitive surge currents up to 198 A, providing excellent robustness during transient events. Additionally, the device has a low peak reverse current of 123 μA, minimizing leakage currents under high voltage.

Designed to operate reliably over a wide temperature range from −55°C to 175°C, the IDK20G120C5XTMA1 suits harsh industrial, commercial, and automotive electronic environments. Its single Schottky rectifier configuration enables fast switching performance, beneficial for high-frequency power applications.

The diode is fully RoHS compliant, adhering to environmental regulations. The 2-pin TO-263 surface-mount package ensures ease of mounting and effective heat dissipation on power assemblies.

Low forward voltage reduces power loss. High continuous current capacity ensures performance under load. Robust voltage blocking for high-voltage applications. Excellent surge current tolerance for transient protection. Wide operating temperature range enhances reliability.

Fast switching enabled by Schottky diode design. Compliance with RoHS environmental standards. Surface-mount TO-263 package for efficient assembly.

This component is suitable for use in power supplies requiring high-voltage rectification, industrial DC-DC converters, inverter applications, braking circuits, and motor drive rectification. Its rugged design and thermal performance make it a preferred choice in demanding electronic power conversion environments.
