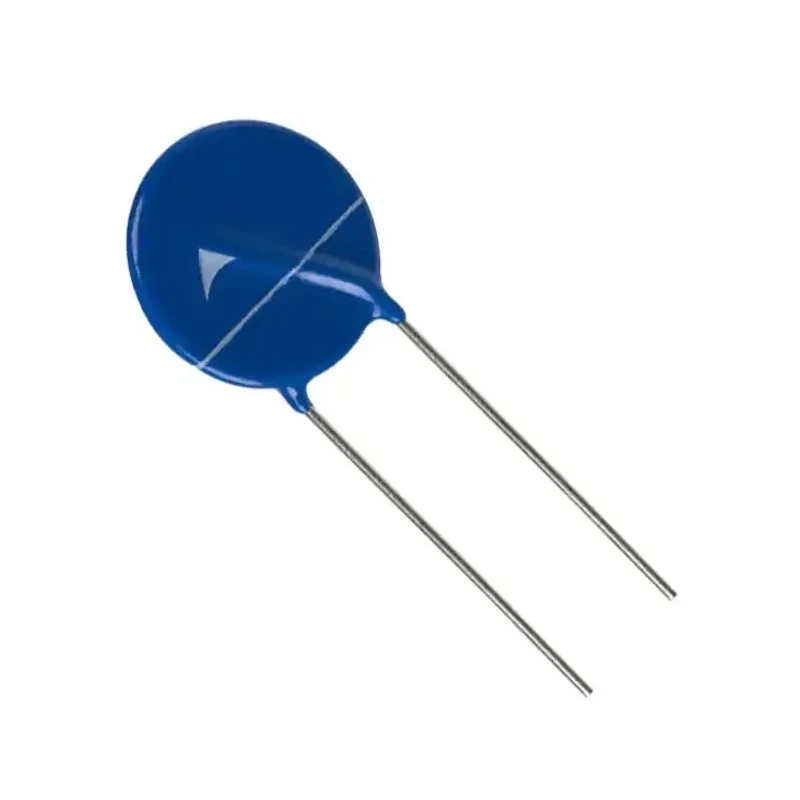

TDK Automative E Metal Oxide Varistor 45 V Varistor Voltage 9.4 pF Capacitance 20 A Clamping Current B72220S1300K102

Free Delivery in India | Lowest Global Shipping Charges

TDK Automative E Metal Oxide Varistor 45 V Varistor Voltage 9.4 pF Capacitance 20 A Clamping Current B72220S1300K102



Category Varistors Brand TDK Condition New

Specifications

Country of Origin	China
Diameter	23mm
Brand	TDK
THICKNESS	6.5mm
Length	27.5mm
Model	B72220S1300K102
Packaging	Tape & Reel
Mount Type	Through Hole
Series	Automative E
Maximum Operating Temperature	85°C
Capacitance	9.4pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	34V dc
Standards/Approvals	CSA, VDE, UL, IEC
Pin Count	2
Maximum AC Voltage	30V ac
Clamping Voltage VC	93V
Clamping Current	20A
Maximum Surge Current	2kA
Automotive Standard	AEC-Q200
Varistor Voltage	45 V

Key Features

Designed for automotive applications providing high energy absorption.
Capable of clamping current up to 20 A for surge protection.
Features flame-retardant epoxy resin coating with UL 94 V-0 rating.
High resistance to cyclic temperature stress and jump-start conditions.
Through-hole mounting with tape and reel packaging for assembly convenience.
Operates reliably in temperatures ranging from -40°C to 85°C.
Compliance with automotive standard AEC-Q200 and approvals from CSA, VDE, UL, and IEC.
Compact dimensions with 23 mm diameter and 27.5 mm length.

Product Description

TDK B72220S1300K102 Metal Oxide Varistor is a high-quality component tailored for automotive and industrial electronic surge protection. This through-hole varistor features a 45 V varistor voltage and a nominal capacitance of 9.4 pF, optimized for stable and reliable suppression of transient voltages.

Its coating utilizes flame-retardant epoxy resin conforming to UL 94 V-0, ensuring enhanced safety and durability under demanding conditions. The varistor element is a round shape designed for optimal energy absorption capacity, particularly effective against load dump and jump-start surges encountered in automotive electronics.

Capable of handling a clamping current of 20 A and maximum surge current of 2 kA, this varistor protects sensitive circuitry by absorbing high-energy transients. Its thin and compact form factor of 6.5 mm thickness, 23 mm diameter, and 27.5 mm length facilitates efficient PCB mounting and space-saving design.

The component operates reliably across a broad temperature range from -40°C to 85°C and meets stringent automotive standards including AEC-Q200. Certifications from CSA, VDE, UL, and IEC further verify its industrial compliance and safety.

Packaging is provided as tape and reel, suitable for automated assembly processes in manufacturing environments. High operating temperature rating up to 125 °C peak. Minimized leakage current ensuring stable protection level.

Terminals constructed from tinned wire improve solderability and electrical connectivity. Robust against cyclic temperature stress for long-term reliability. PSpice simulation models available for circuit design validation.

This metal oxide varistor serves critical roles in automotive electronics, industrial power supplies, and surge protection systems, enhancing device longevity and operational safety.
