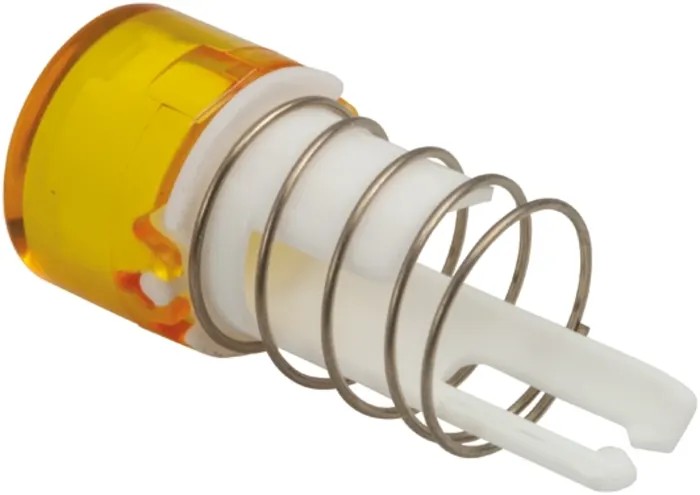

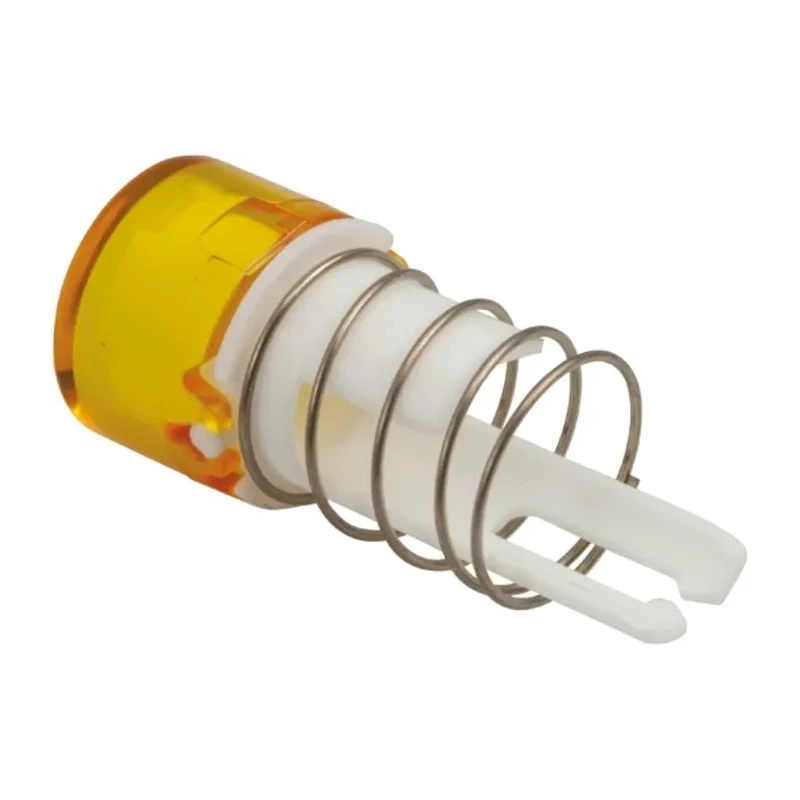

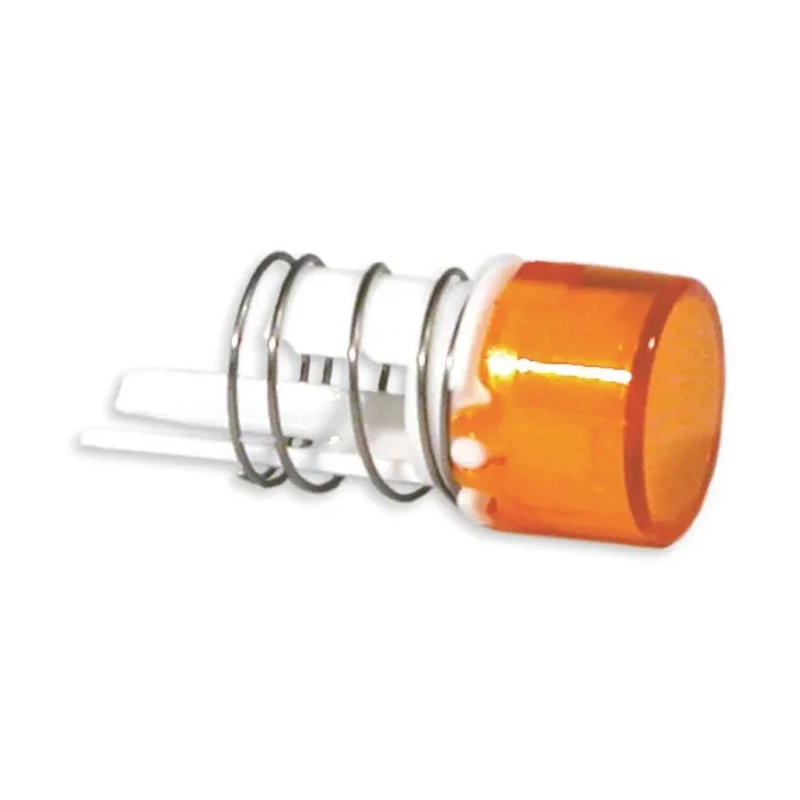

Idec Yellow Round Push Button Lens for Use with A8 Series AL8M-LK1-Y

Name: Idec Yellow Round Push Button Lens for Use with A8 Series AL8M-LK1-Y
Brand: Idec
SKU: 179195
Price: 2.04 USD
Availability: InStock



Category Push Button Lenses Brand Idec Condition New

Specifications

Country of Origin	Japan
Diameter	16mm
Brand	Idec
Height	18mm
Length	24mm
Model	AL8M-LK1-Y
Width	18mm
Note	When not illuminated, the green LED appears to be yellow
Lens Colour	Yellow
For Use With	A8 Series
Standards/Approvals	CSA, UL
Lens Shape	Round
LENS MIN IND RND YELLOWBrand	NEUTRAL
Idec Red Round Push Button Lens for Use with A8 SeriesBrand	Idec

Key Features

This lens is designed specifically for use with A8 Series push button switches.
The lens is yellow in color and has a round shape for clear indication.
Complies with CSA and UL standards ensuring safety and quality.
Manufactured in Japan to ensure superior craftsmanship and reliability.
This lens is a two-part assembly with a diffuser and colored transparent front cover.
The diffuser may include markings to indicate switch function.
Suitable LEDs are supplied separately, with current limited to 20mA as recommended.
Square and round bezel indicators require lenses to be ordered separately and do not include switch or LED components.

Product Description

Idec AL8M-LK1-Y Yellow Round Push Button Lens is engineered for use with A8 Series 8mm sub-miniature illuminated push-button switches, combining precision and durable design. This lens features a yellow color and a round shape, measuring 18mm in height and width, 24mm in length, and 16mm in diameter, making it ideal for panel mounting in a variety of industrial and electrical control applications.

Designed with two parts, including a diffuser and a colored transparent front cover, this lens offers enhanced visibility and the possibility of switch function marking. The lens meets CSA and UL safety standards, suitable for rigorous industrial use. It is made in Japan, reflecting high-quality manufacturing standards.

This lens is part of a series of 8mm contact indicators which include LED illumination. Note that LEDs are supplied separately; the recommended current is limited to 20mA to protect the LEDs, with typical forward voltage values depending on LED color (red: 1.7V, green: 2.1V, yellow: 2.2V). When not illuminated, note that the green LED may appear yellow.

Push button lenses like the AL8M-LK1-Y do not include the switch or LED components themselves. They are essential for completing the indicator assembly by providing optical clarity and color indication for operator interfaces.

This yellow round lens is designed exclusively for A8 Series push button switches. The 18mm height, width, 24mm length and 16mm diameter ensure compact panel integration. CSA and UL certifications guarantee compliance with industrial safety standards.

The diffuser component allows functional marking, improving usability. Manufactured in Japan for high reliability and durability. Compatible with LED illumination systems with externally limited current. Green LEDs may appear yellow when unlit due to lens diffusion.

The lens is a vital component for visual switch indication in industrial control panels.

Environmentally, these lenses are suited for electrical, automation, manufacturing, and control systems offering precise user feedback and maintaining compliance with global standards. Explore additional Push Button Lenses and related accessories for comprehensive panel solutions on EnvMart.
