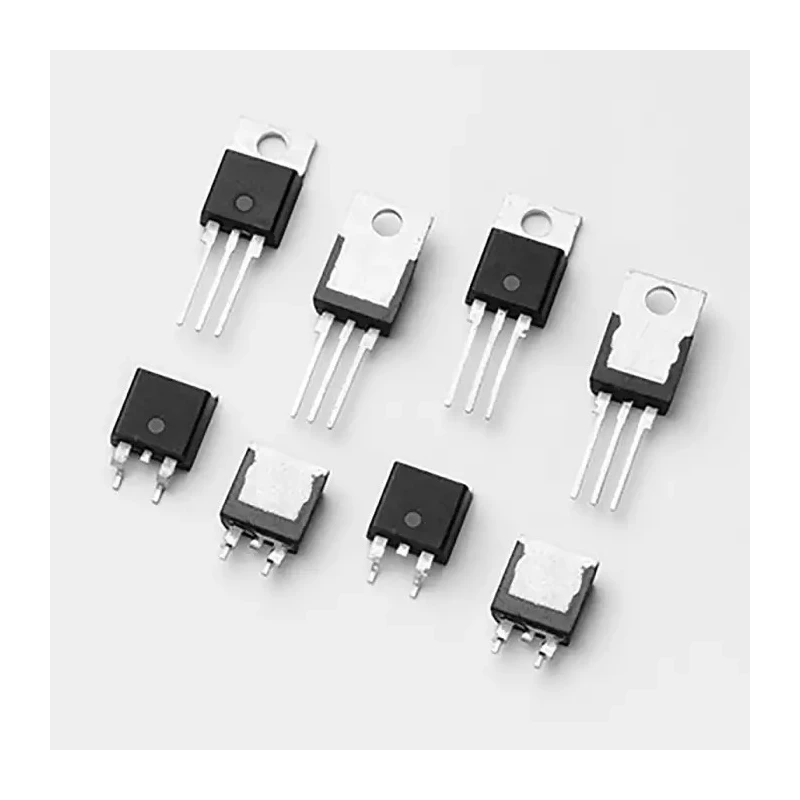

Littelfuse Thyristor SCR 1 kV Repetitive Peak Reverse Voltage 25 A Rated On-State Current S6025LTP

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse Thyristor SCR 1 kV Repetitive Peak Reverse Voltage 25 A Rated On-State Current S6025LTP

Name: Littelfuse Thyristor SCR 1 kV Repetitive Peak Reverse Voltage 25 A Rated On-State Current S6025LTP
Brand: LITTELFUSE
SKU: 150973
Price: 3.23 USD
Availability: InStock



Category Thyristor Brand LITTELFUSE Condition New

Specifications

Country of Origin	China
Brand	Littelfuse
Model	S6025LTP
Mount Type	Through Hole
Maximum Operating Temperature	125°C
Package Type	TO-220
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	25A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1kV
Surge Current Rating	300A
Maximum Gate Trigger Current Igt	35mA
Maximum Holding Current Ih	50mA
Maximum Gate Trigger Voltage Vgt	1.5V
Peak On-State Voltage	1.6V
Repetitive Peak Off-State Current	1mA

Key Features

Designed for solid state switching and circuit protection applications.
Features a 3-pin TO-220 through-hole package for easy mounting.
Maximum gate trigger current of 35 mA ensures efficient trigger control.
Surge current rating of up to 300 A supports transient overloads.
Operates reliably between -40°C to 125°C temperature range.
Peak on-state voltage of 1.6 V minimizes power loss during conduction.
Excellent unidirectional switching suited for phase control applications like heating and motor speed regulation.
Passivated glass junction construction enhances durability and reliability.

Product Description

Littelfuse S6025LTP Thyristor is a silicon-controlled rectifier (SCR) designed to control electrical power flow effectively in various industrial, commercial, and household applications. Featuring a repetitive peak reverse voltage (VDRM) of 1 kV and a maximum on-state current rating of 25 A, it excels in switching and phase control roles.

The device package is a standard TO-220 three-pin through-hole type, facilitating robust heat dissipation and straightforward PCB mounting. The maximum gate trigger current is 35 mA, enabling low trigger power requirements, while the surge current tolerance of 300 A allows the unit to handle transient overloads without damage.

Temperature operation ranges from a minimum of -40°C to a maximum of 125°C, providing reliability across diverse environmental conditions. The holding current is 50 mA, and the peak on-state voltage is a low 1.6 V, ensuring efficient conduction with minimal power dissipation.

This thyristor is widely used in AC solid-state switches and phase control circuits, such as heating elements and variable motor speed controllers. Its glass passivated junctions offer improved performance stability and longevity. Applications include industrial power tools, household appliances, commercial equipment, and exercise machines requiring reliable power switching capabilities.

Solid state switch suitable for controlling AC power flow. High repetitive peak reverse voltage capability of 1000 V. Robust surge current rating of 300 A for transient conditions. Low triggering current and voltage for efficient gate control.

Wide operating temperature range from -40°C up to 125°C. Standard TO-220 package ensures easy mounting and heat management. Commonly deployed in industrial and commercial electrical tool applications. Manufactured under new condition and sourced from China.
