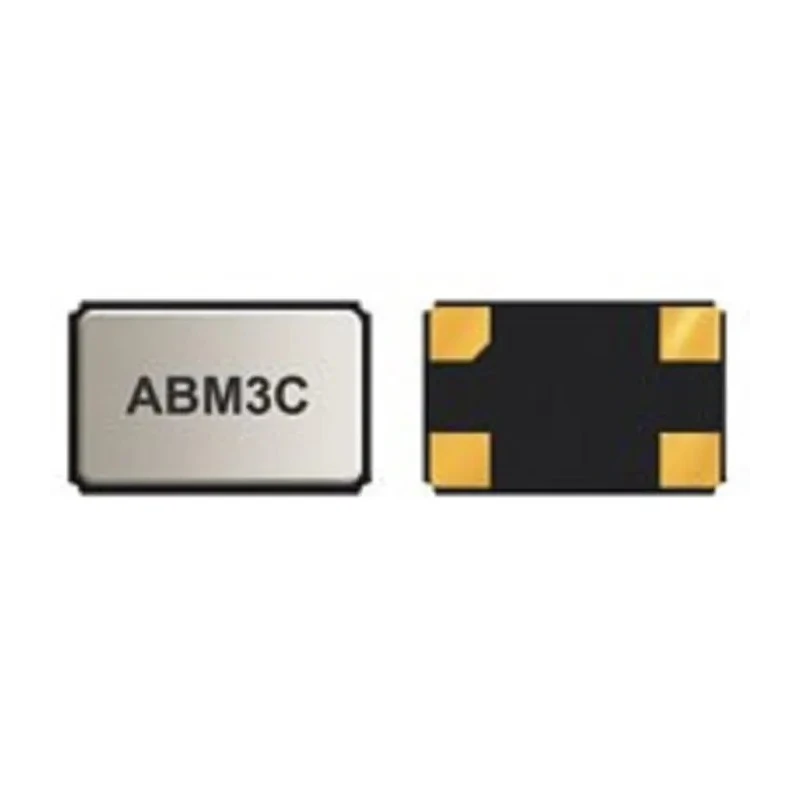

Abracon 14.7456 MHz Crystal Unit Surface Mount 4-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3C-14.7456MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3C-14.7456MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3C |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 14.7456MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- This crystal unit features a standard frequency of 14.7456 MHz suitable for precise timing applications.
- The surface mount package has a pin count of 4 for easy PCB integration.
- Operating temperature range from -10°C to 70°C supports diverse environmental conditions.
- The equivalent series resistance is 60 ohms for stable oscillation characteristics.
- The device is RoHS compliant and comes in a tape & reel packaging for manufacturing convenience.
- The crystal unit is designed for high density, wireless, and communication applications.
- The compact size and low height profile make it ideal for thin electronic equipment.
Product Description
The Abracon ABM3C-14.7456MHZ-D4Y-T is a high-quality surface mount crystal unit with a standard frequency of 14.7456 MHz. Featuring a 4-pin configuration and compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height, this crystal unit is engineered for precision timing in demanding applications.
With a frequency tolerance and stability of ±50 ppm, it provides excellent accuracy for modems, communication devices, and wireless applications. The crystal operates reliably within the temperature range of -10°C to 70°C, making it suitable for various industrial and commercial environments.
The equivalent series resistance (ESR) of 60 ohms ensures stable oscillation performance, essential for high density circuit design. RoHS compliance guarantees environmental safety and the packaging in tape & reel format facilitates efficient automated assembly.
This Abracon crystal unit is tailored for use in electronics where size and performance matter, including embedded systems, test equipment, and other precision electronics requiring stable frequency references.
This crystal unit features a standard frequency of 14.7456 MHz suitable for precise timing applications. The surface mount package has a pin count of 4 for easy PCB integration. Frequency tolerance and stability are both ±50 ppm, ensuring reliable performance.
Operating temperature range from -10°C to 70°C supports diverse environmental conditions. The equivalent series resistance is 60 ohms for stable oscillation characteristics. The device is RoHS compliant and comes in a tape & reel packaging for manufacturing convenience.
The crystal unit is designed for high density, wireless, and communication applications. The compact size and low height profile make it ideal for thin electronic equipment.
EnvMart offers this Abracon Crystal Unit for purchase with confidence, suitable for electronics manufacturers and designers seeking a reliable frequency source to enhance their product performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal unit has a standard frequency of 14.7456 MHz, suitable for precise timing applications.
This model has a length of 5 mm, a width of 3.2 mm, and a height of 1.3 mm.
The operating temperature range is from -10°C to 70°C, accommodating various environmental conditions.
The equivalent series resistance (ESR) is 60 ohms, ensuring stable oscillation characteristics.
It features a 4-pin configuration for easy PCB integration.
The device is packaged in a tape & reel format, which facilitates efficient automated assembly.
Yes, the crystal unit is RoHS compliant, ensuring it meets environmental safety standards.
It is designed for high density, wireless, and communication applications, as well as embedded systems and test equipment.
The load capacitance is 18 pF, which is important for its performance in circuits.
This model belongs to the ABM3C series, which is known for precision timing applications.
The frequency tolerance and stability of this unit is ±50 ppm, providing reliable performance.
