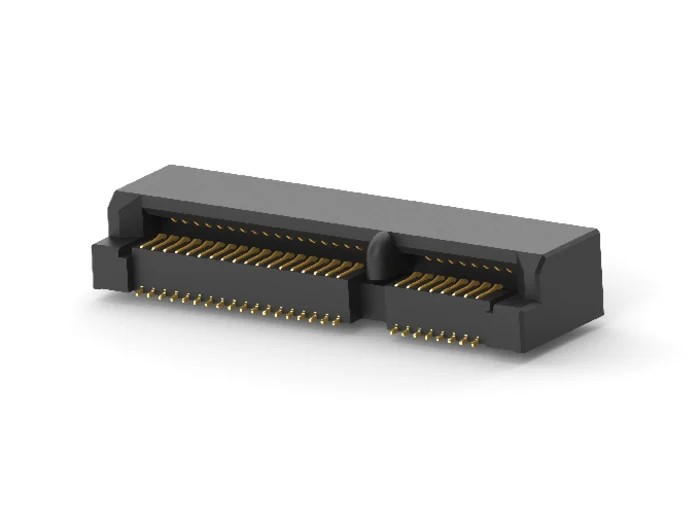

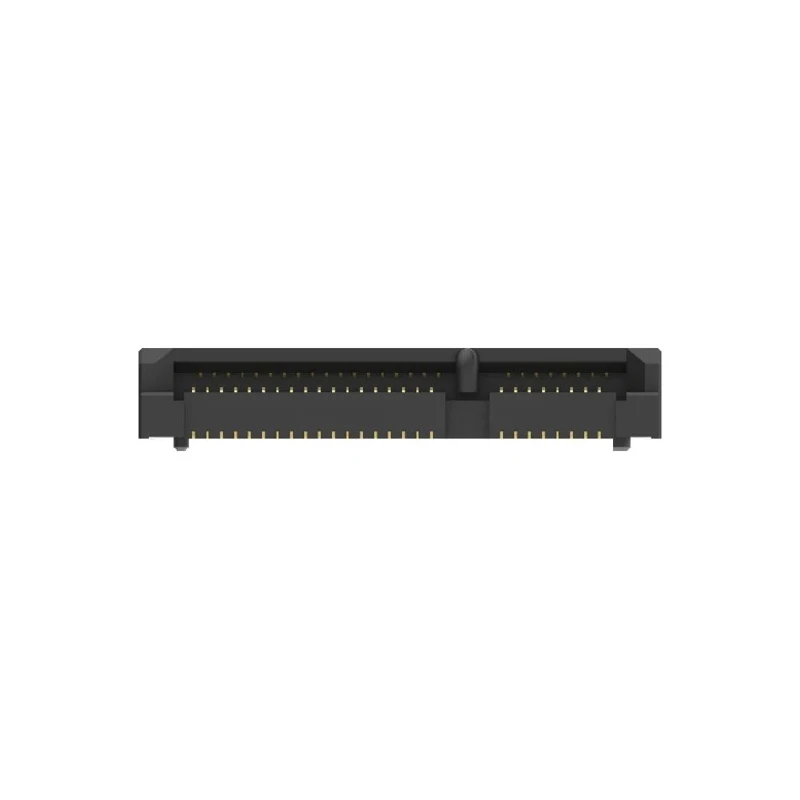

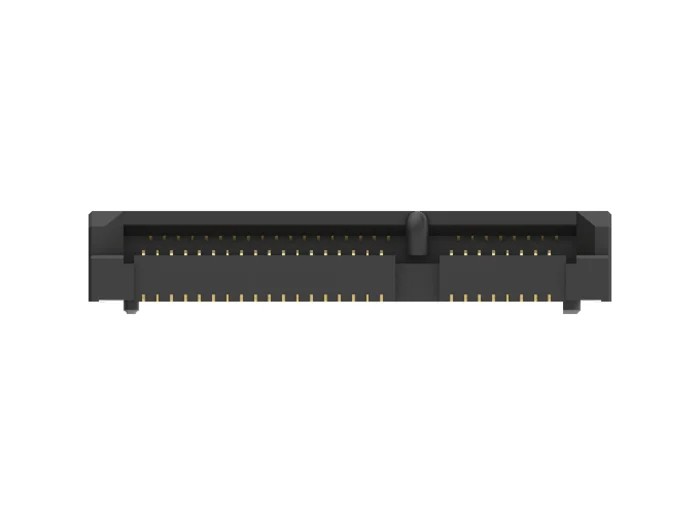

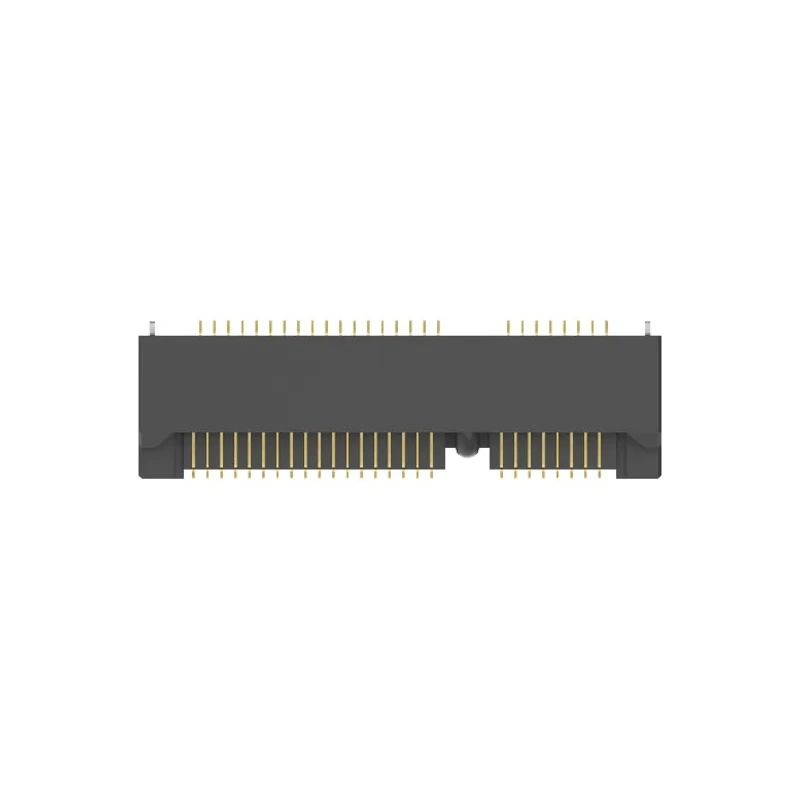

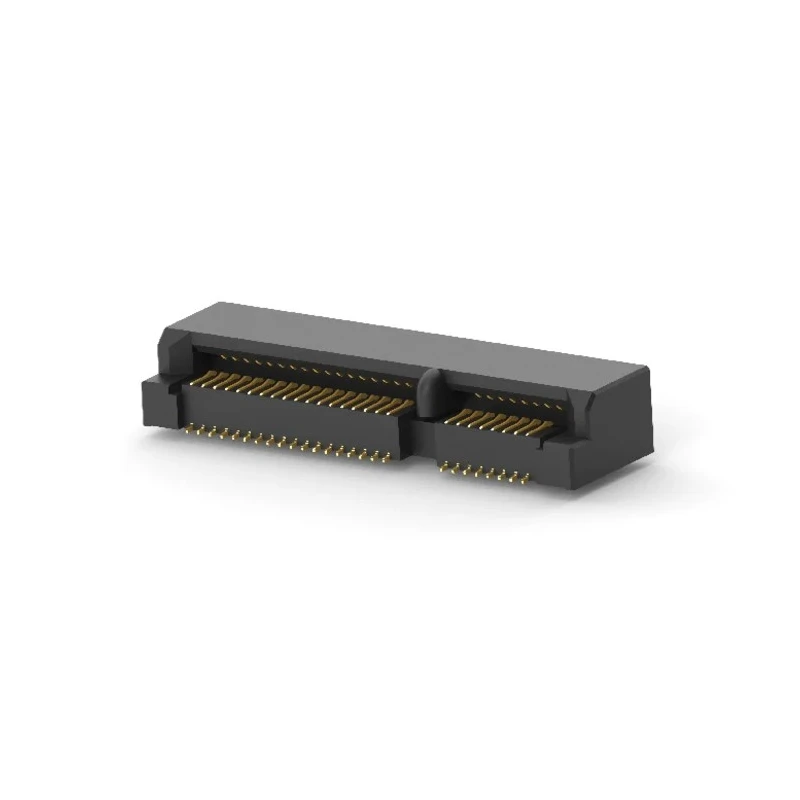

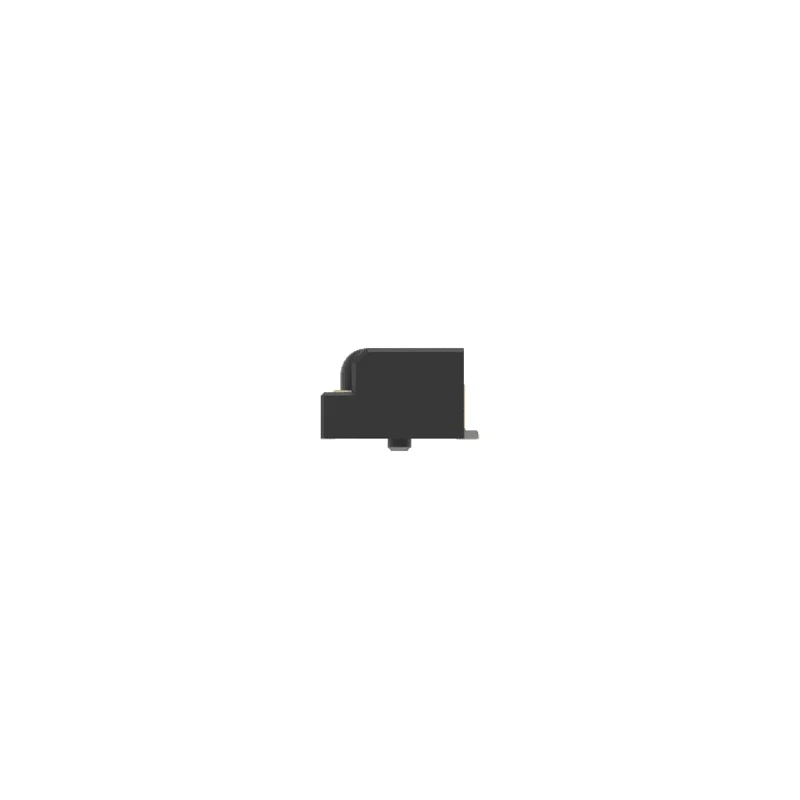

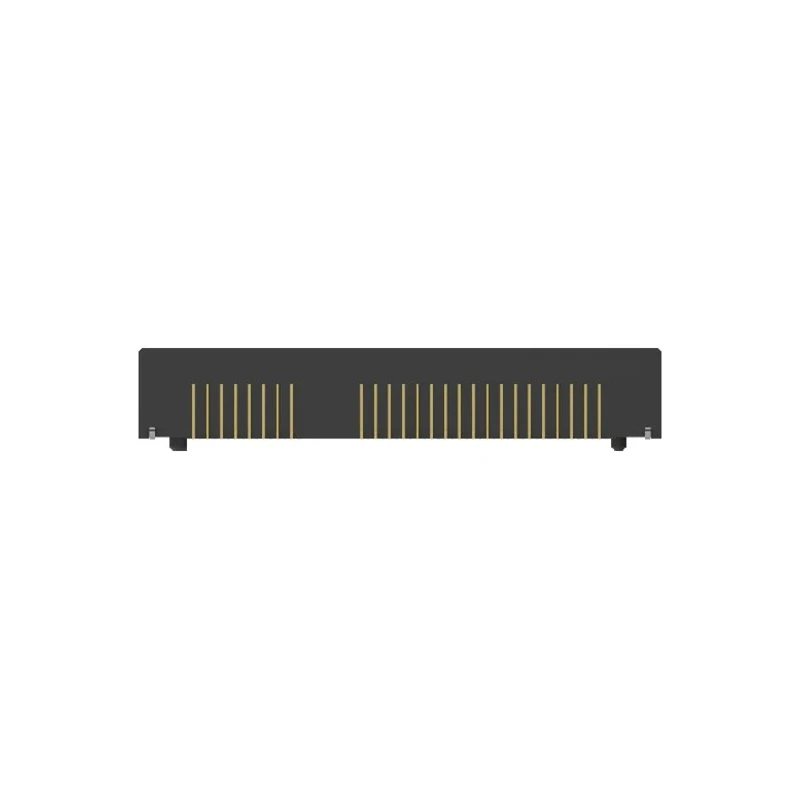

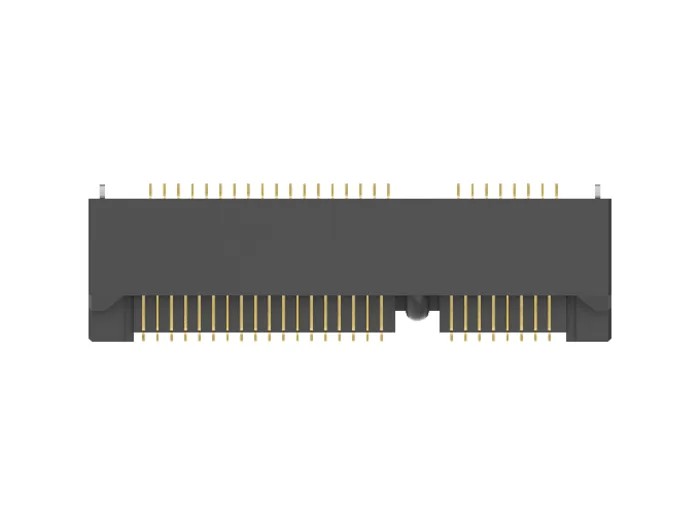

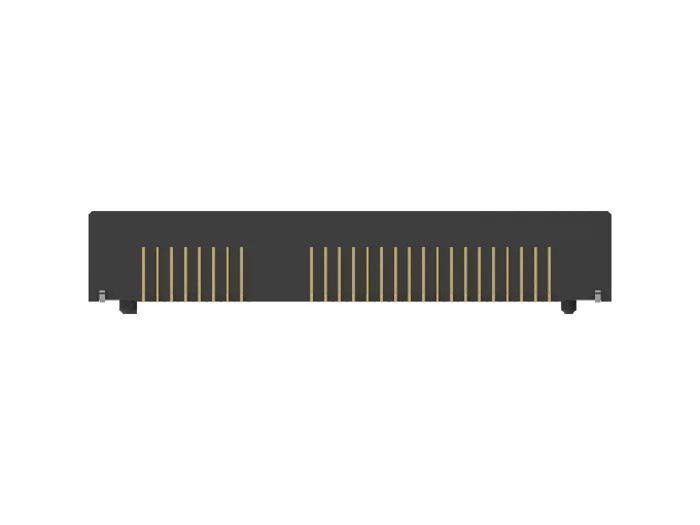

TE Connectivity Right Angle Edge Connector Female 52-Contacts 0.8 mm Pitch 2 Row Surface Mount 1775862-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Right Angle Edge Connector Female 52-Contacts 0.8 mm Pitch 2 Row Surface Mount 1775862-2

Name: TE Connectivity Right Angle Edge Connector Female 52-Contacts 0.8 mm Pitch 2 Row Surface Mount 1775862-2
Brand: TE Connectivity
SKU: 177801
Price: 1.05 USD
Availability: InStock



Category Edge Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Orientation	Right Angle
Current	500mA
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Termination Type	Surface Mount
Maximum Operating Temperature	-55°C
Minimum Operating Temperature	-85°C
Number of Rows	2
Pitch	0.8mm
Standards/Approvals	RoHS
Contact Plating	Gold Flash
Number of Contacts	52
Contact Gender	Male
Connector Gender	Female
Card Type	PCI

Key Features

This right angle edge connector offers two rows of contacts for reliable PCB interfacing.
It supports a current rating of 500mA, suitable for moderate power requirements.
Contact material is copper alloy with gold flash plating for enhanced conductivity and corrosion resistance.
Construction features thermoplastic housing compliant with RoHS standards, suitable for PCI card type applications.
Operates in a temperature range from -85°C to -55°C ensuring reliable performance in extreme conditions.
The connector is a female type with male contacts designed to mate with PCB edges.
Termination is via surface mount technology enabling automated assembly and efficient production.
Keying mechanism is included to prevent misalignment during installation.

Product Description

TE Connectivity 1775862-2 Right Angle Edge Connector Female is a high-quality connector designed for industrial and electronic applications requiring precise and reliable PCB connections. The connector features 52 contacts arranged in two rows with a 0.8 mm pitch, optimized for surface mount technology. This female edge connector mates directly with single or double-sided printed circuit boards, interfacing via metallic tracks along the PCB edges to ensure secure electrical transmission.

Constructed with a durable thermoplastic housing suitable for PCI card types, this connector withstands operating temperatures from -85°C to -55°C, accommodating harsh environmental conditions common in industrial electronics, automotive interfaces, and computing equipment. The contacts are made from copper alloy and plated with gold flash to provide excellent conductivity and resistance to corrosion, increasing connector longevity and reliability.

The connector supports a current rating of 500mA, making it ideal for powering moderate current circuits. Its keying system prevents erroneous mating and ensures proper alignment during assembly, reducing installation errors and potential damage to PCBs.

Surface mount termination allows for automated, high-throughput production lines in electronics manufacturing, improving process efficiency. The right angle orientation facilitates varied PCB layout designs by enabling connections along the board edge at a perpendicular angle.

This edge connector is RoHS compliant, ensuring it meets environmental and safety regulations. Its female connector gender with male contacts is tailored for reliable mechanical and electrical interface. Applicable in industrial, laboratory, telecommunications, computing, and automotive electronic assembly uses.

Choose this TE Connectivity 1775862-2 Edge Connector to achieve secure, durable, and precise PCB interconnections, essential for advanced electronics and manufacturing systems. Explore more electronic connectors and components in EnvMart’s Electronics & Electricals catalog to meet diverse technical needs and specifications.
