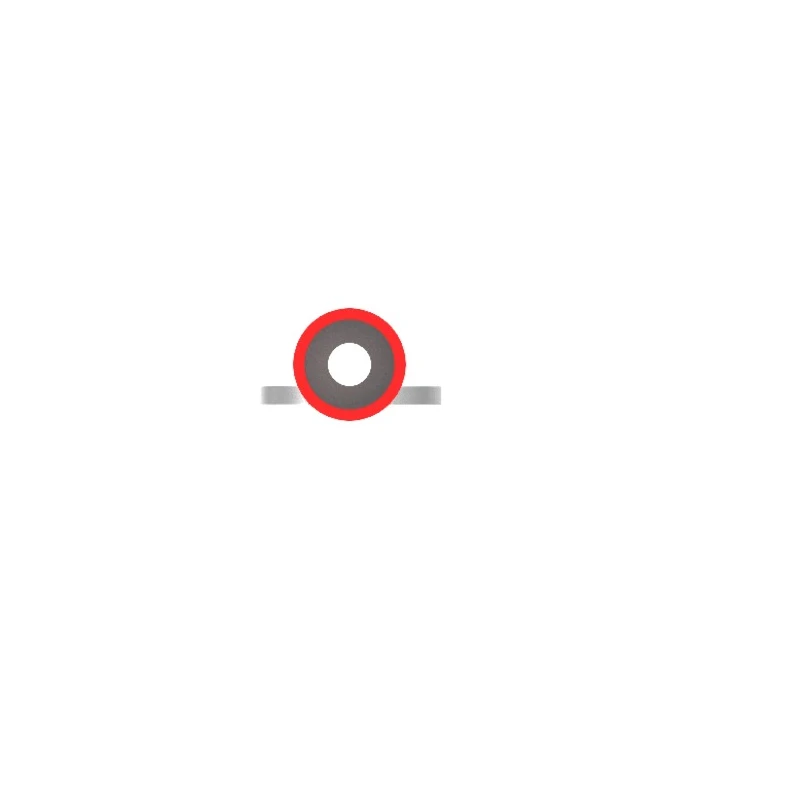

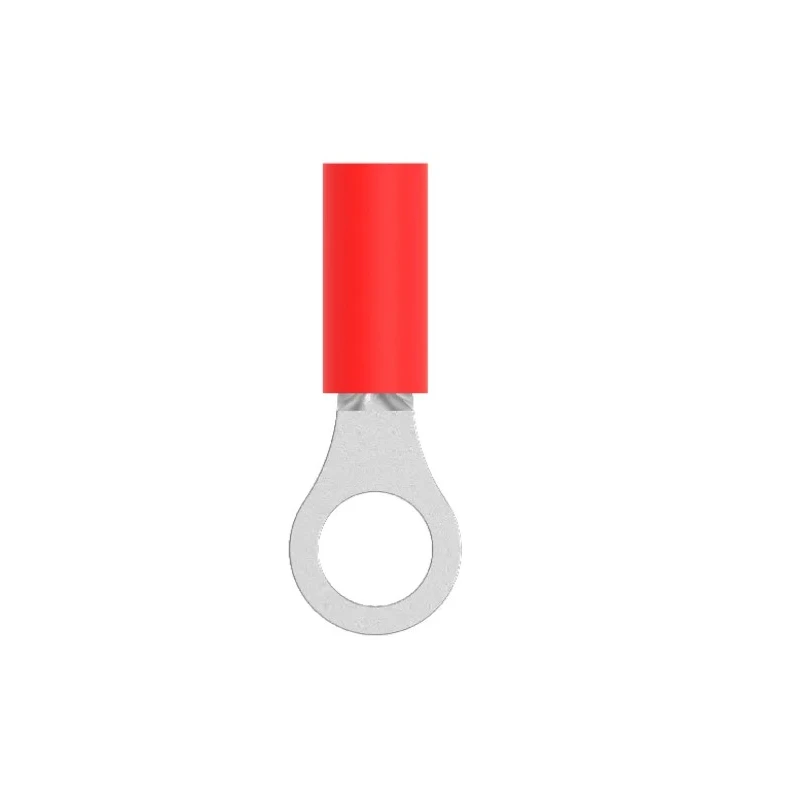

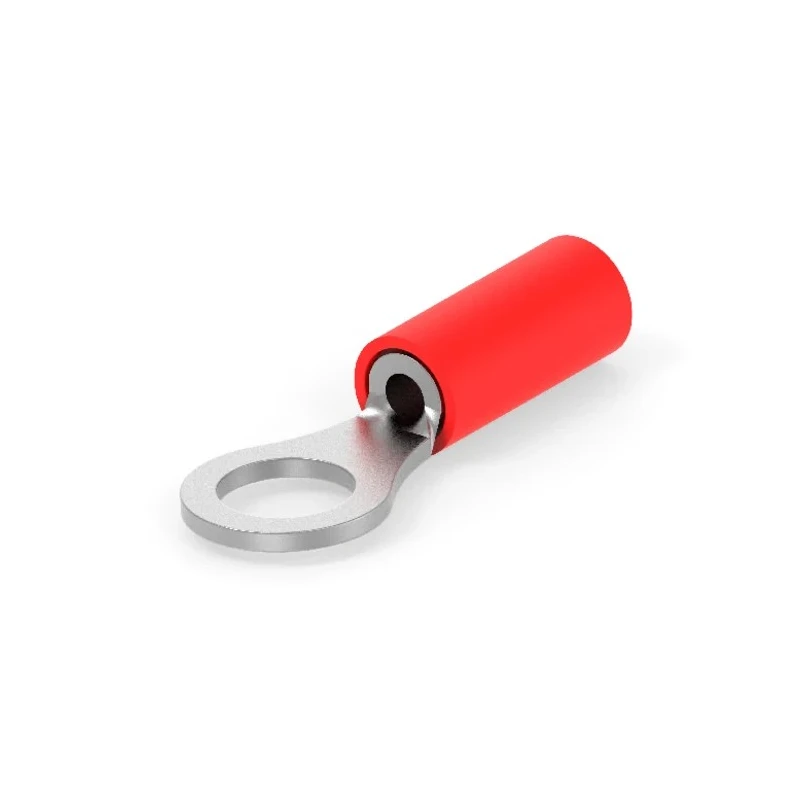

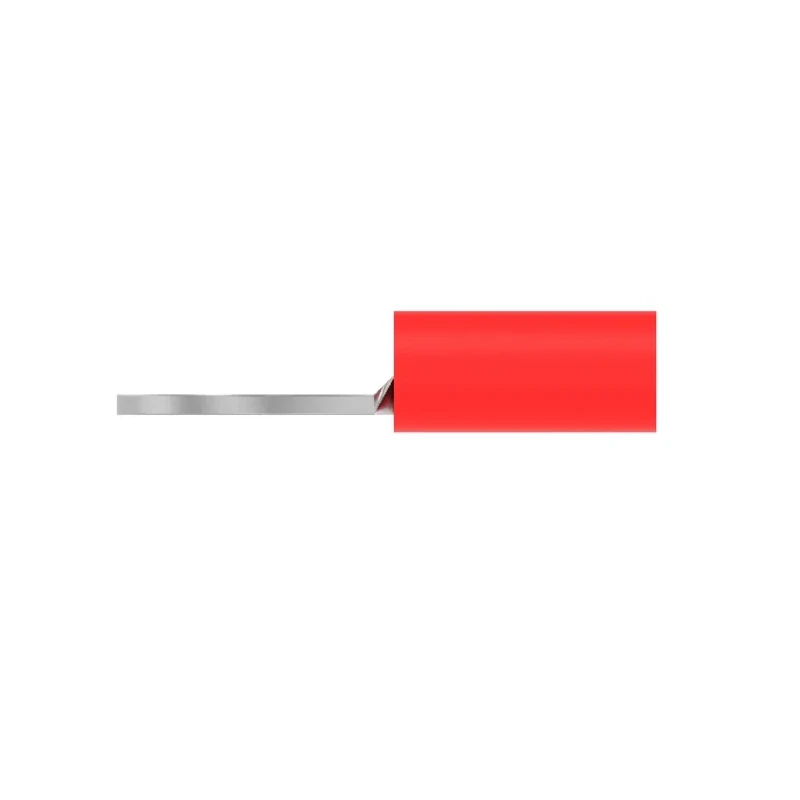

TE Connectivity PIDG Insulated Ring Terminal, Nylon Insulation, M5 Stud Size, 22 AWG to 16 AWG Wire Size, Red 130005

TE Connectivity 130005 insulated ring terminal is engineered for secure and reliable electrical connections in industrial, electronic, and automotive applications. Featuring a nylon insulation and designed for M5 stud size, it supports wire sizes from 22 AWG to 16 AWG in a red insulated color.

This ring terminal's construction includes a copper contact with a tin plating to resist corrosion and provide efficient electrical conductivity. The ring terminal has an outer ring diameter of 7.92mm and an inner ring diameter of 5mm, ensuring compatibility with various mounting requirements.

The terminal is rated for a maximum operating temperature of 105°C, suitable for demanding electrical environments. The overall length of 21.6mm allows for easy insertion of stranded wire for crimping, ensuring a strong and lasting mechanical and electrical connection.

The insulated design improves safety by reducing the risk of short circuits and provides mechanical protection to the wire. The red color coding allows for quick identification of wire gauge and polarity, simplifying assembly procedures.

Fully RoHS compliant, this product aligns with environmental directives and is crafted to meet strict quality standards. It is an ideal component for electronics assemblies, wiring harnesses, and power connectors in industrial and commercial settings.

The ring terminal features a nylon insulation providing electrical safety and durability. Compatible with wire sizes from 22 AWG to 16 AWG for versatile applications. Constructed with a copper contact material plated with tin for corrosion resistance.

Includes a 7.92mm outer ring diameter and 5mm inner ring diameter for secure attachment. Suitable for maximum operating temperatures up to 105°C, ensuring reliable performance in various environments. Red color insulation aids in easy identification of wire gauge and polarity.

The overall length of the terminal is 21.6mm, allowing for convenient crimping and installation. RoHS compliant, meeting environmental and safety standards for electronics. Manufactured in the United States, assuring consistent quality and reliability.
