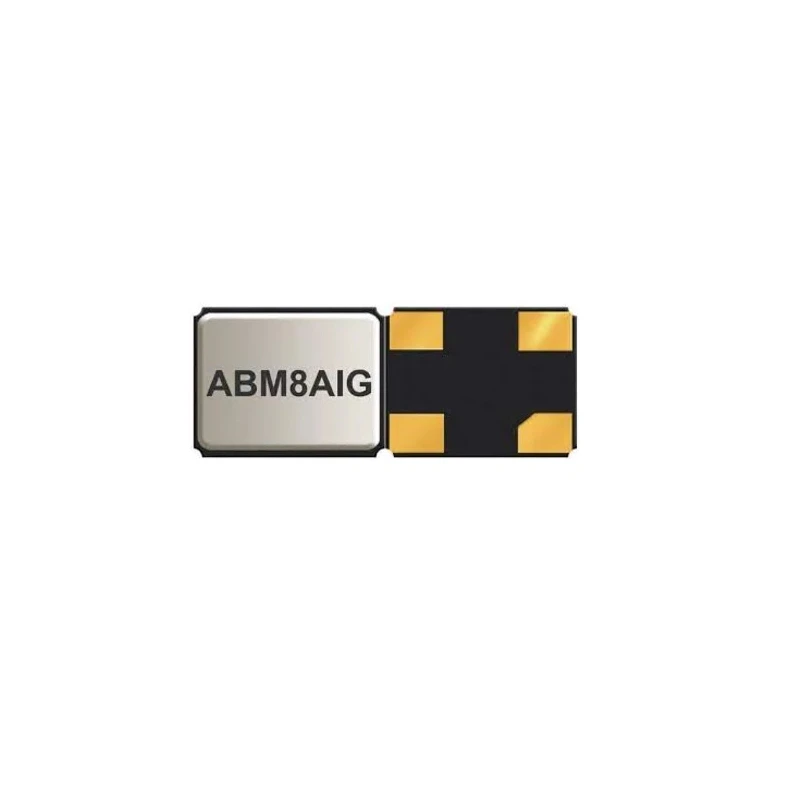

Abracon 24 MHz Crystal ±50 ppm Ceramic Package 4-Pin Surface Mount ABM8AIG-24.000MHZ-12-2Z-T3

The Abracon ABM8AIG-24.000MHZ-12-2Z-T3 is a high-quality 24 MHz crystal designed for surface mounting with a compact 4-pin ceramic package measuring 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.

This crystal provides ±50 ppm frequency tolerance and stability, ensuring precise timing essential in automotive, industrial, and communication applications such as infotainment systems, GPS, ADAS, and LiDAR technologies.

The hermetically seam sealed ceramic package delivers superior protection against environmental stresses, enhancing product reliability over a wide operating temperature range from -40°C to 85°C, with automotive Grade 1 compliance extending to 125°C.

With a load capacitance of 12 pF and a series resistance of 50 Ω, this unit offers stable oscillation and low power consumption characteristics. The device is AEC-Q200 qualified and TS16949 production line certified, supporting automotive-grade quality standards. Packaging is provided as Tape & Reel to facilitate automated pick-and-place processes.

This product meets RoHS and RoHS II compliance directives and is lead-free, confirming its suitability for environmentally conscious designs. Compact surface mount 4-pin ceramic package with low-profile dimensions. Excellent frequency stability with ±50 ppm tolerance.

Engineered for harsh automotive and industrial environments. AEC-Q200 certification assures high reliability. Suitable for advanced applications like ADAS and LiDAR. Pb-free and RoHS compliant for green manufacturing. Tape & Reel packaging supports efficient assembly.

This Abracon Crystal Unit is an optimal choice for electronics designers focused on precision, reliability, and automotive-grade quality. Browse the Electronics Components category at EnvMart for additional crystal oscillators and related products.
