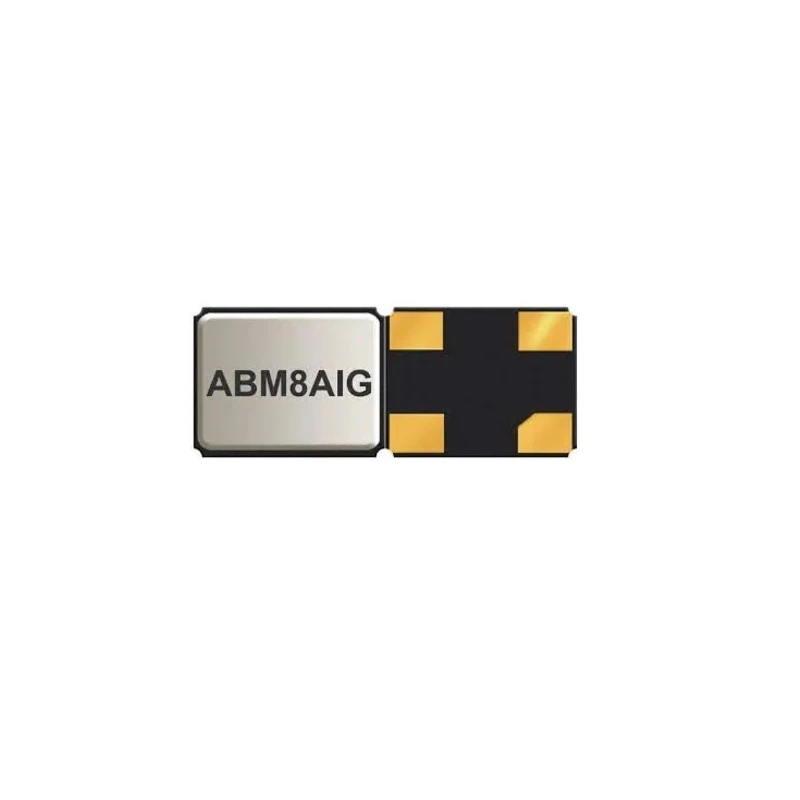

Abracon 12 MHz Surface Mount Ceramic Package Crystal ±50 ppm Frequency Tolerance 4-Pin ABM8AIG-12.000MHZ-12-2Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8AIG-12.000MHZ-12-2Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8AIG |
| Maximum Operating Temperature | 85°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Features a hermetically seam-sealed ceramic package for reliability.
- Designed for automotive and industrial applications with AEC-Q200 qualification.
- Operates across a temperature range from -40°C to 85°C with Automotive Grade 1 certified from -40°C to +125°C.
- Offers 12 pF load capacitance and a series resistance of 100Ω for stable oscillation.
- Measures 3.2 mm length, 2.5 mm width, and 0.8 mm height suitable for compact PCB designs.
- Packaged in tape and reel format to support high volume automated assembly.
- RoHS and Pb free compliant ensuring environmental safety.
- Commonly used in infotainment systems, GPS, navigation, ADAS, and LiDAR applications.
Product Description
The Abracon ABM8AIG-12.000MHZ-12-2Z-T3 is a precision automotive and industrial grade 12 MHz crystal oscillator designed for surface mount applications. Its hermetically seam-sealed ceramic package with 4 pins ensures robust mechanical stability and superior environmental protection, making it ideal for advanced electronics in harsh conditions.
This crystal unit meets the stringent requirements of AEC-Q200 automotive standards and is Automotive Grade 1 certified, supporting extended temperature operation from -40°C up to +125°C. It is suitably designed for applications including infotainment systems, GPS navigation, Advanced Driver Assistance Systems (ADAS), and LiDAR technologies, where high frequency stability and reliability are critical.
Physical dimensions of 3.2 mm length, 2.5 mm width, and 0.8 mm height allow integration on compact printed circuit boards. The load capacitance is specified at 12 pF with a series resistance of 100Ω, ensuring stable resonance at the 12 MHz standard frequency. The ±50 ppm frequency tolerance guarantees precise timing performance for sensitive electronic circuits.
Features a hermetically sealed ceramic package for protection and durability. Complies with RoHS and Pb-free environmental standards. Automotive and industrial grade with AEC-Q200 qualification supports reliability. Supports a broad temperature range suitable for rugged environments.
Compact footprint suitable for modern surface mount PCB applications. Available in tape & reel packaging supporting automated manufacturing processes. Compatible with advanced automotive systems including ADAS and LiDAR.
Ensures precise frequency control for critical timing circuits.
This crystal belongs to the ABM8AIG series known for automotive-grade quality and extensive reliability certification. Manufacturers and designers can rely on this component to improve electronic system performance and durability.
Discover a complete range of Crystal Units and similar electronic components in the Electronics & Electricals category at EnvMart for your industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 12 MHz.
This crystal measures 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.
The load capacitance is specified at 12 pF.
It has a series resistance of 100Ω, which ensures stable oscillation.
It operates across a temperature range from -40°C to 85°C, with Automotive Grade 1 certification supporting operation from -40°C to +125°C.
The crystal is packaged in tape and reel format, suitable for high volume automated assembly.
This model meets the AEC-Q200 automotive standard, ensuring reliability in automotive applications.
It is commonly used in infotainment systems, GPS navigation, Advanced Driver Assistance Systems (ADAS), and LiDAR applications.
It features a hermetically seam-sealed ceramic package for enhanced reliability and environmental protection.
This crystal unit has 4 pins.
The country of origin for this model is India.
It complies with RoHS and is Pb-free, ensuring environmental safety.
