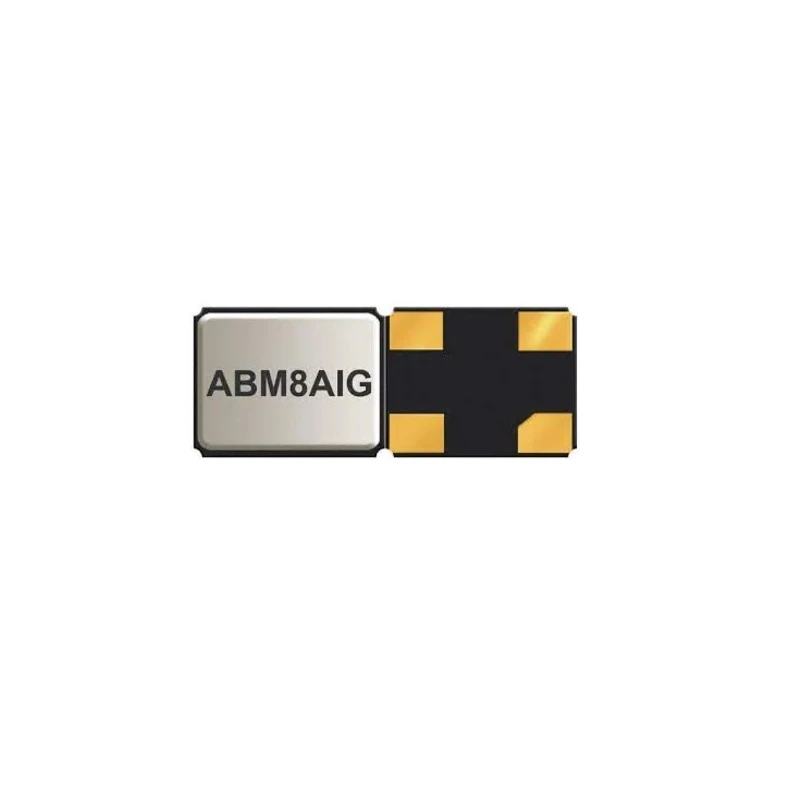

Abracon 20 MHz Crystal ±50 ppm Ceramic Package Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.8 mm ABM8AIG-20.000MHZ-12-2Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8AIG-20.000MHZ-12-2Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8AIG |
| Maximum Operating Temperature | 85°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 20MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Standard frequency of 20 MHz with a 12 pF load capacitance.
- Hermetically seam sealed ceramic package ensuring durability.
- Compact 4-pin surface mount design with dimensions 3.2 mm length, 2.5 mm width, and 0.8 mm height.
- Operating temperature range from -40°C to 85°C, with Automotive Grade 1 certification supporting -40°C to +125°C.
- Series resistance of 50 Ω for stable oscillation performance.
- Qualified to AEC-Q200 automotive standards for quality and reliability.
- RoHS and RoHS II compliant and Pb free for environmental safety.
- Suitable for applications such as infotainment systems, GPS, ADAS, and LiDAR.
Product Description
The Abracon ABM8AIG-20.000MHZ-12-2Z-T3 is a high-quality 20 MHz crystal unit in a hermetically sealed ceramic surface mount package designed for demanding automotive and industrial environments. Featuring a 4-pin configuration with a compact footprint of 3.2 mm length, 2.5 mm width, and 0.8 mm height, this crystal offers reliable frequency stability with a tolerance of ±50 ppm and a load capacitance rating of 12 pF.
Constructed with an automotive-grade ceramic package and meeting AEC-Q200 standards, this product is ideal for use in applications such as infotainment systems, GPS navigation, advanced driver-assistance systems (ADAS), and LiDAR sensors. It is tested to operate within a temperature range of -40°C to 85°C, with extended automotive grade certification from -40°C to +125°C.
The crystal has a series resistance of 50 Ω which ensures stable and precise oscillation necessary for sensitive electronic timing applications. It is RoHS and Pb free compliant, supporting environmentally conscious manufacturing processes.
Available in tape and reel packaging, the ABM8AIG series facilitates automated placement during PCB assembly, optimizing production efficiency. The hermetically sealed ceramic package protects the crystal from moisture and contamination, enhancing long-term reliability.
These features combine to provide a robust solution suited to industrial, automotive, laboratory, and communication electronics sectors. Standard frequency of 20 MHz with a 12 pF load capacitance. Hermetically seam sealed ceramic package ensuring durability.
Compact 4-pin surface mount design with dimensions 3.2 mm length, 2.5 mm width, and 0.8 mm height. Operating temperature range from -40°C to 85°C, with Automotive Grade 1 certification supporting -40°C to +125°C. Series resistance of 50 Ω for stable oscillation performance.
Qualified to AEC-Q200 automotive standards for quality and reliability. RoHS and RoHS II compliant and Pb free for environmental safety. Suitable for applications such as infotainment systems, GPS, ADAS, and LiDAR. Available in tape and reel packaging for efficient automated assembly.
Explore the Electronics Components category and the Abracon brand for more advanced Crystal Units and oscillator solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 20 MHz.
This unit has a compact size with dimensions of 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.
The load capacitance rating for this crystal unit is 12 pF.
It features a series resistance of 50 Ω, ensuring stable oscillation performance.
The operating temperature range is from -40°C to 85°C, with Automotive Grade 1 certification supporting up to +125°C.
Yes, it is RoHS and RoHS II compliant and Pb free, supporting environmentally safe manufacturing processes.
This model comes in a hermetically sealed ceramic package, which enhances durability and reliability.
It is suitable for applications such as infotainment systems, GPS, ADAS, and LiDAR.
The crystal unit is available in tape and reel packaging, facilitating automated placement during PCB assembly.
It is qualified to AEC-Q200 automotive standards, ensuring quality and reliability for automotive applications.
This model has a 4-pin configuration.
The series resistance of 50 Ω is critical for maintaining stable and precise oscillation necessary for sensitive electronic timing applications.
