| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C47-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 375Ω |
| Typical Voltage Temperature Coefficient | 42mV/K |

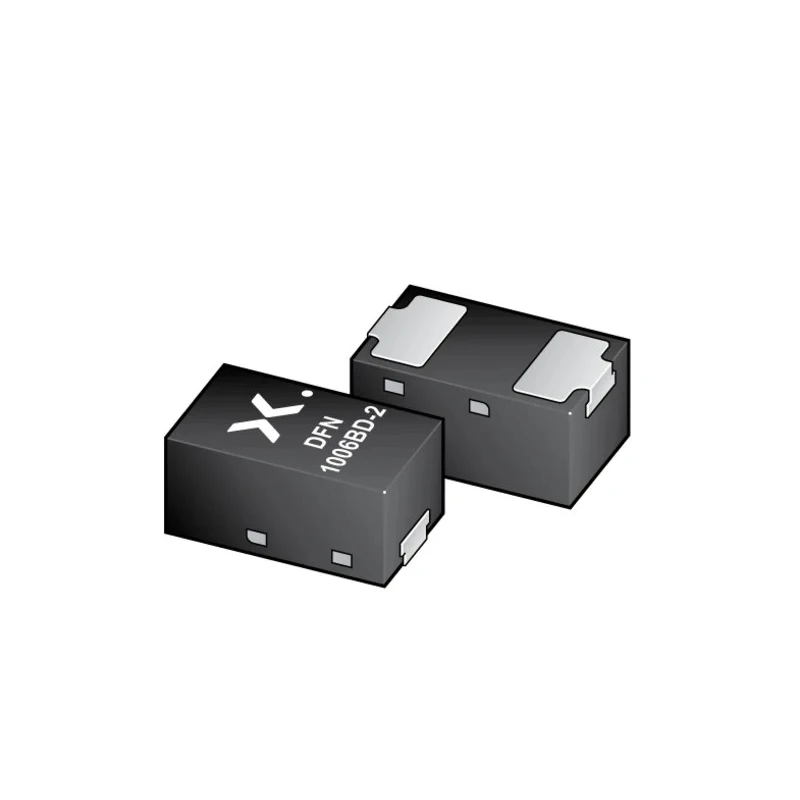

The Nexperia BZX884S-C47-QYL is a high-quality general purpose Zener diode designed for surface mount applications in compact DFN1006BD-2 (SOD882BD) package with side-wettable flanks, offering efficient heat dissipation and reliable performance.
This single-element diode provides a nominal Zener voltage of approximately 1.47 volts and supports maximum power dissipation of 365 milliwatts, making it suitable for voltage regulation and protection circuits in electronics and automotive systems.
With a tight ±2% voltage tolerance and test current of 5 mA, it ensures stable voltage reference and protection against voltage spikes. Its low maximum reverse leakage current of 50 nanoamperes maintains circuit efficiency by minimizing leakage losses.
The diode complies with automotive standards AEC-Q101 and is RoHS certified, making it ideal for rigorous automotive and industrial environments requiring reliability and compliance.
The device's dimensions are compact with 0.47 mm height and 1 mm length, allowing integration into densely packed circuit boards and modern electronic assemblies. Its maximum operating temperature reaches 150°C, supporting operation in demanding conditions.
General purpose single Zener diode with nominal voltage 1.47 V. Surface mount 2-pin DFN1006BD-2 package with side-wettable flanks for enhanced solderability. Maximum power dissipation: 365 mW suitable for low power voltage regulation roles.
Certified AEC-Q101 automotive grade diode for reliable use in vehicle electronics. Wide operating temperature range: -55°C to 150°C ensures versatility. Maximum Zener impedance of 375 Ω with ±2% tolerance assures voltage precision.
Low maximum reverse leakage current of 50 nA to maintain efficiency. Typical voltage temperature coefficient is 42 mV/K, aiding stable performance over temperature variations.
This Nexperia Zener diode is well suited for industrial, automotive, electronic equipment, and power regulation applications where compact size, accuracy, and temperature resilience are critical.
