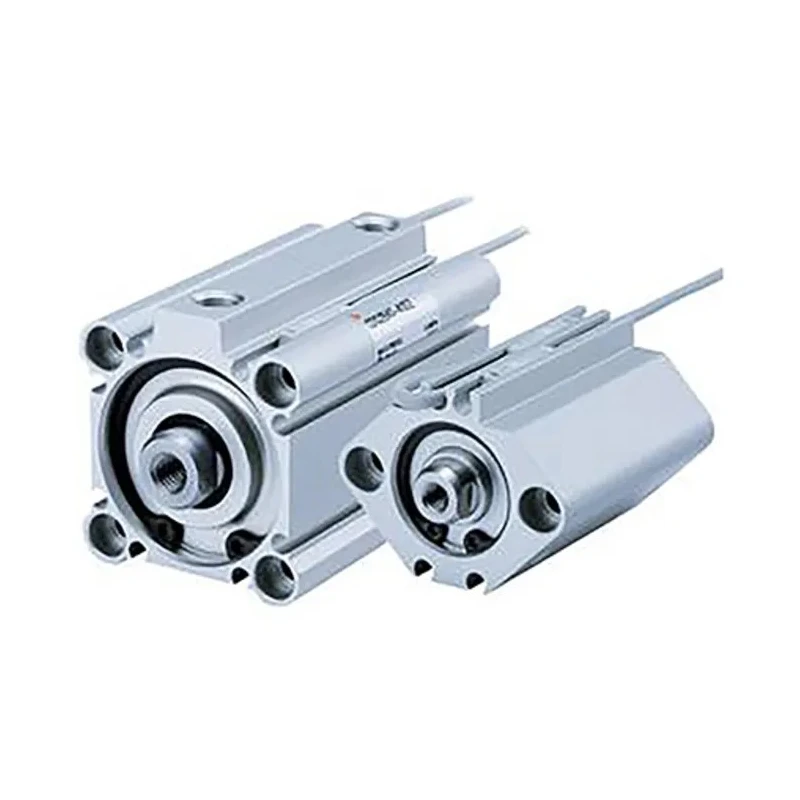

SMC Pneumatic Compact Cylinder 80mm Bore, 75mm Stroke, Double Acting, Aluminium Alloy CDQ2 Series CDQ2A80TN-75DMZ

SMC CDQ2A80TN-75DMZ Pneumatic Compact Cylinder from the CDQ2 Series is a precision engineered pneumatic actuator designed for industrial and manufacturing applications requiring reliable and compact cylinders. Featuring an 80mm bore and 75mm stroke length, this double acting cylinder utilizes a durable aluminium alloy body to combine lightweight design with robust performance. The unit operates efficiently between -10°C and 60°C and supports a maximum operating pressure of 1.5 MPa.

With a length of 138.5mm and height of 98mm, this compact cylinder is suitable for installations where space is limited. The piston rod is single, male gender, and features metric thread standard enabling compatibility with a variety of industrial setups. The cylinder supports piston speeds up to 500 mm/s, making it ideal for applications requiring quick and precise actuation.

The CDQ2 series ensures fail-safe construction featuring a lock unit switch and equal holding force in both directions. Mounting is versatile with both ends tapped, facilitating easy and secure fixing in diverse equipment configurations.

This pneumatic compact cylinder is widely applicable in industrial automation, manufacturing machinery, hydraulic and pneumatic tooling, packaging systems, and material handling equipment. The aluminium alloy body ensures corrosion resistance and long service life under demanding conditions.

Lightweight aluminium alloy body construction provides durable and reliable operation. Double acting to generate controlled force in extend and retract strokes. Both ends tapped mount type allows flexible installation options.

Rated for maximum operating pressure of 1.5 MPa and piston speed up to 500 mm/s. Operating temperature range from -10°C to 60°C for versatile environmental suitability. Single male piston rod with metric threading compatible with most industrial applications.

Compact dimensions support use in constrained machine spaces and equipment. Fail safe construction with lock unit switch for operational safety. Equal holding force in both directions ensures stable and balanced motion control.

Explore the SMC CDQ2 series for pneumatic compact cylinders to find alternatives and related models suitable for diverse industrial needs. EnvMart offers comprehensive pneumatic and hydraulic tool selections for industrial automation, manufacturing, HVAC, and laboratory environments.
