| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C36-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 36V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 350Ω |
| Typical Voltage Temperature Coefficient | 30.4mV/K |

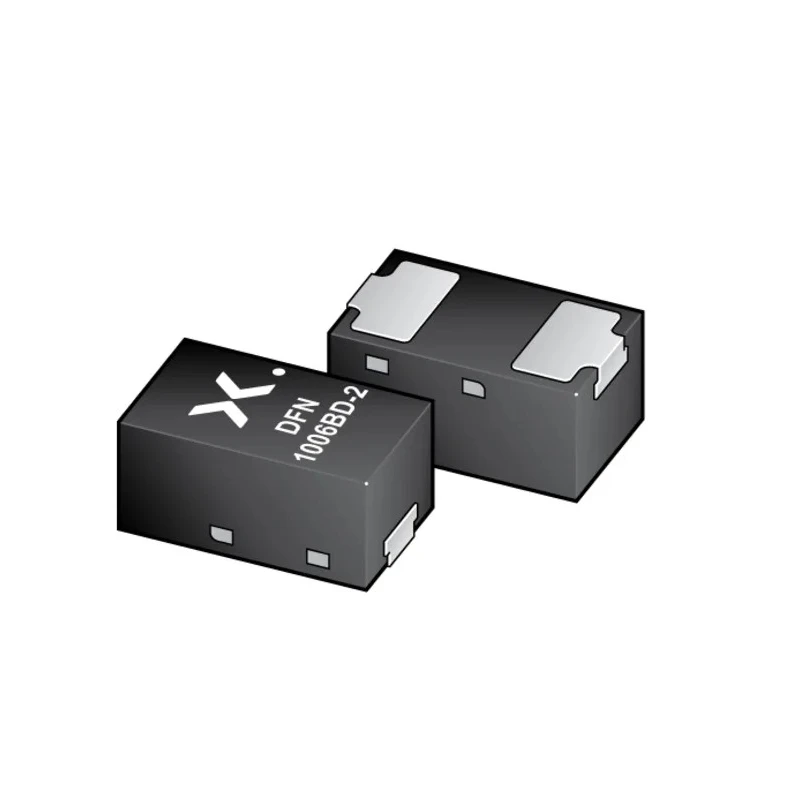

The Nexperia BZX884S-C36-QYL is a single element general purpose Zener diode designed for voltage regulation in electronic circuits. It features a nominal Zener voltage of 36 volts with a tight tolerance of ±2% making it ideal for precise voltage reference applications.
This diode comes in an ultra-small DFN1006BD-2 surface mount package with 2 pins, suitable for compact PCB designs where space savings and reliability are critical. It offers a maximum power dissipation of 365 milliwatts making it suitable for low-power applications in automotive, industrial, and consumer electronics.
The device operates reliably over a temperature range from -55°C to 150°C, meeting the AEC-Q101 automotive standard and RoHS compliance for environmentally friendly manufacturing. Its low maximum reverse leakage current of 50 nA minimizes power losses in circuits while maintaining stable voltage regulation.
Additional features include a typical voltage temperature coefficient of 30.4 mV/K and a maximum Zener impedance of 350 ohms. The compact package with dimensions 1 mm length and 0.47 mm height facilitates easy integration into dense electronic assemblies.
This Zener diode is widely used for voltage reference, voltage regulation, and protection in industrial, automotive, and consumer semiconductor applications. It is an excellent component to ensure accurate voltage stability while maintaining a small form factor.
The diode has a nominal Zener voltage of 36 V with a tolerance of ±2 percent. Designed for surface mounting with a 2-pin configuration in the DFN1006BD-2 package. Maximum power dissipation is 365 milliwatts, suitable for low-power voltage regulation.
Maximum operating temperature up to 150°C with a minimum operating temperature of -55°C. Compliance with AEC-Q101 automotive standard and RoHS directive. Maximum Zener impedance is 350 ohms, and maximum reverse leakage current is 50 nA.
Typical voltage temperature coefficient of 30.4 mV/K ensures stable operation over temperature. Package height is 0.47 mm and length is 1 mm, supporting compact PCB layouts. Explore more from Nexperia's range of semiconductor components on EnvMart to find compatible discrete semiconductors for your industrial and automotive projects.
