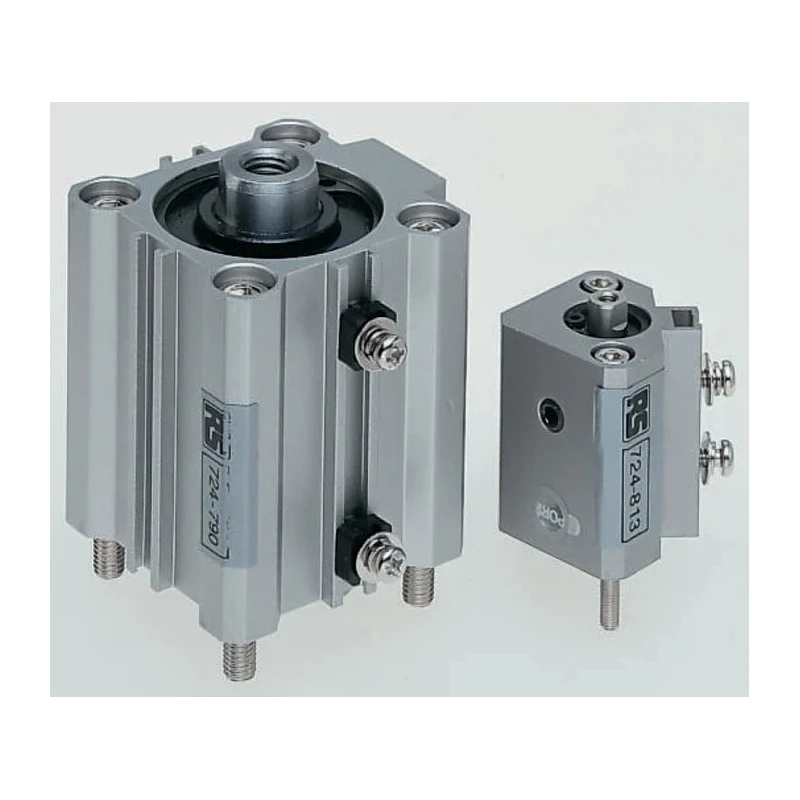

SMC Pneumatic Compact Cylinder 32mm Bore 100mm Stroke Double Acting Aluminium Alloy Body CDQ2B32TF-100DZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 45mm |
| Length | 140mm |
| Model | CDQ2B32TF-100DZ |
| Gross Weight | 576g |
| Width | 58.5mm |
| Mount Type | Through Hole |
| Series | CDQ2 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 100mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| SMC 100 mm Double Acting Cylinder - CDQ2 Series, Double Acting ActingBrand | SMC |
Key Features
- Compact design allows for space and weight saving in pneumatic systems.
- Double acting mechanism provides controlled motion with rubber bumper cushioning.
- Constructed with durable aluminium alloy body for corrosion resistance.
- Maximum operating pressure is 1.5 Mpa, suitable for industrial pneumatic applications.
- Operating temperature range from -10°C to 70°C ensuring reliability in various environments.
- Single rod type with metric female piston rod thread for easy mounting.
- Includes magnetic piston for switch actuation compatibility.
- Stroke length of 100mm and body length of 140mm for precise movement.
Product Description
SMC CDQ2B32TF-100DZ Pneumatic Compact Cylinder features a 32mm bore diameter with a 100mm stroke length designed for double acting pneumatic applications requiring space efficiency and reliable actuation. The aluminum alloy construction offers enhanced durability and corrosion resistance, while the rubber bumper cushioning absorbs shocks to extend service life.
This cylinder supports a maximum operating pressure of 1.5 Mpa and operates effectively within a temperature range from -10°C up to 70°C, making it suitable for diverse industrial environments including manufacturing, automation, and fluid power systems.
The unit provides precise pneumatic motion with a single rod type and metric female piston rod thread standard for straightforward installation and compatibility. Its compact size (140mm length, 45mm height, and 58.5mm width) makes it ideal for applications where space and weight savings are critical.
Additional features include a magnetic piston for integration with solid state switches and internal nitrile seals that obviate the need for lubrication. The cylinder can be used in automated machinery, assembly line equipment, and various pneumatic driven devices.
Compact design that saves space and weight. Double acting cylinder with rubber bumper cushioning for shock absorption. Durable aluminium alloy body for corrosion resistance. Maximum operating pressure of 1.5 Mpa ensures high performance.
Operating temperature range from -10°C to 70°C supports diverse environments. Single rod type with metric female piston rod thread for easy connection. Magnetic piston allows use with solid state switches. Lightweight design approximately 576 grams.
Stroke length and dimensions suitable for precise pneumatic actuation.
SMC Pneumatic Cylinders are widely used in industrial automation, manufacturing lines, and fluid power systems. Their compact footprint and robust performance support efficient design and operational reliability. For more related products explore the Pneumatic Piston Rod Cylinders category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1.5 Mpa, making it suitable for various industrial pneumatic applications.
This pneumatic cylinder has a length of 140mm, a height of 45mm, and a width of 58.5mm.
The stroke length of the SMC CDQ2B32TF-100DZ is 100mm, allowing for precise pneumatic actuation.
The body of this pneumatic cylinder is constructed from aluminium alloy, which provides corrosion resistance.
It operates effectively within a temperature range from -10°C to 70°C, ensuring reliability in various environments.
This model features rubber bumper cushioning, which absorbs shocks and extends service life.
The cylinder has a single rod type with a metric female piston rod thread for easy mounting.
Yes, it can be used in automated machinery, assembly line equipment, and various pneumatic driven devices.
This model is a double acting cylinder, allowing for controlled motion in both directions.
Yes, it includes a magnetic piston that allows for integration with solid state switches.
The gross weight of this pneumatic cylinder is approximately 576 grams.
The SMC CDQ2B32TF-100DZ is manufactured in India.
