| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C12-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 6mV/K |

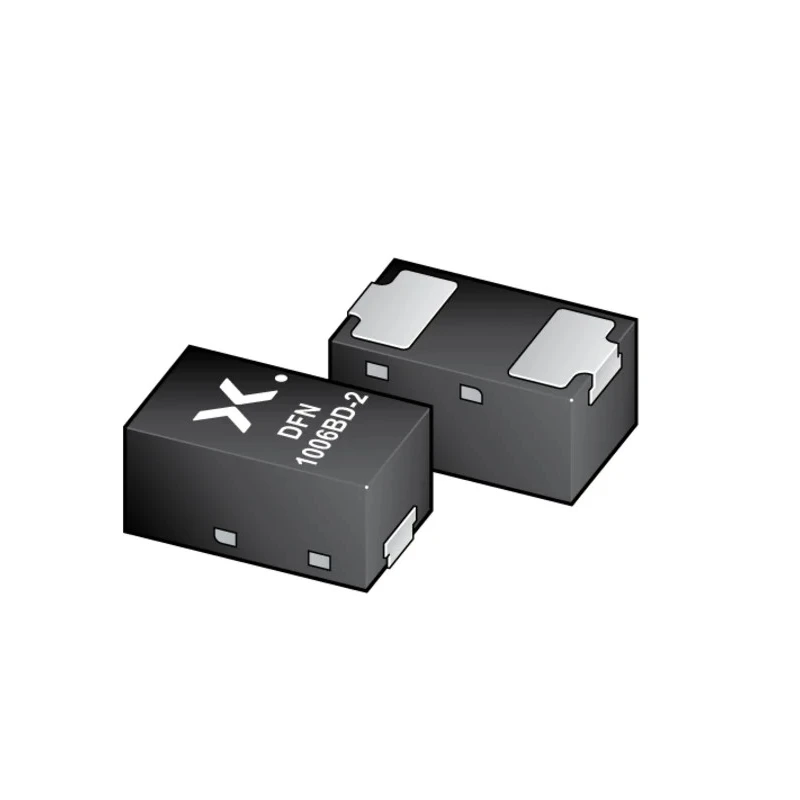

Nexperia BZX884S-C12-QYL is a new, general purpose 12 V Zener diode designed for surface mount applications. It features a maximum power dissipation of 365 mW and is housed in a ultra small 2-pin DFN1006BD-2 plastic package, making it ideal for compact circuit designs in automotive and industrial electronics.
This diode offers a nominal Zener voltage of 12 V with a precision tolerance of ±2% and a test current of 5 mA, ensuring stable voltage regulation. The device operates reliably across a wide temperature range from -55°C to 150°C and has a low maximum reverse leakage current of 100 nA, contributing to energy efficiency.
The diode's maximum Zener impedance is 150 Ω, which helps maintain consistent voltage under varying load. It also features a typical voltage temperature coefficient of 6 mV/K, providing good temperature stability required in harsh environments.
The DFN1006BD-2 package includes side-wettable flanks for enhanced solderability and reliability during automated surface mount assembly. The device complies with RoHS directive and AEC-Q101 automotive standards, making it suitable for use in automotive electronics and other industrial applications requiring high reliability and compact design.
Nominal 12 V Zener voltage with ±2% tolerance. 365 mW maximum power dissipation for moderate power applications. Surface mount 2-pin DFN1006BD-2 package for space saving. Operating temperature range from -55°C to 150°C. Low leakage current and stable electrical characteristics.
Compliant with RoHS and AEC-Q101 for automotive systems. Typical voltage temperature coefficient of 6 mV/K enhances performance stability. Test current at 5 mA for accurate voltage regulation. Side-wettable flanks ensure reliable solder joints in manufacturing.
This Zener diode is widely used in industrial, automotive, and general electronic circuit protection and voltage regulation applications. It offers reliable performance in compact surface mounted circuits where space and performance stability are essential. Explore more quality semiconductor components in the Nexperia product range at EnvMart for your electronic design needs.
Explore more products in our Zener Diodes category.
