| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B36-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 36V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 350Ω |
| Typical Voltage Temperature Coefficient | 30.4mV/K |

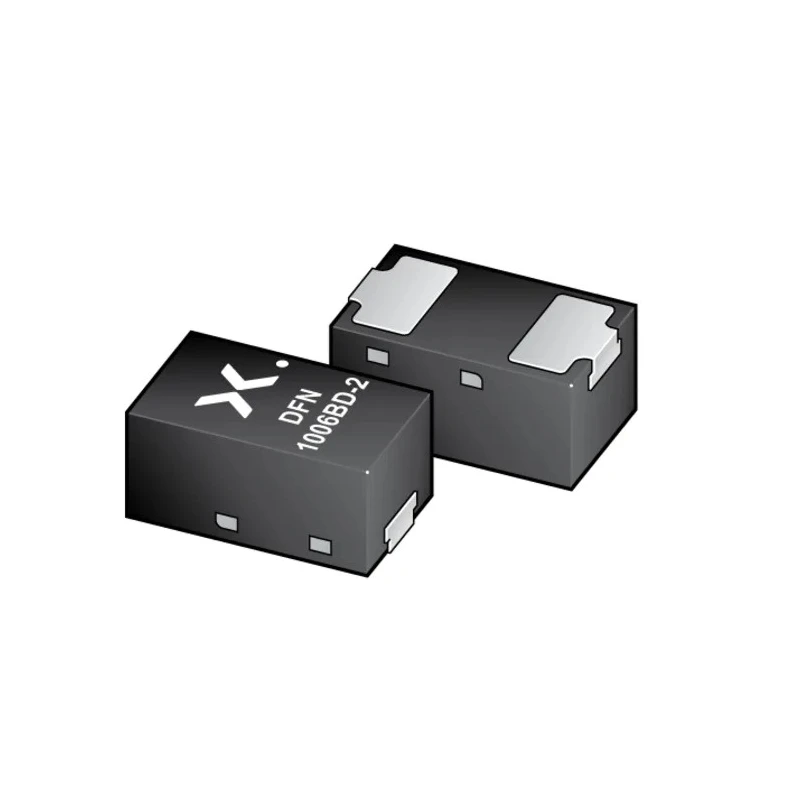

Nexperia BZX884S-B36-QYL is a general-purpose Zener diode offering a nominal zener voltage of 36 V and power dissipation capacity of 365 mW. Its surface mount configuration with a 2-pin DFN1006BD-2 ultra-small plastic package optimizes PCB space usage and manufacturing efficiency.
This diode supports a test current of 5 mA and maintains a zener voltage tolerance of ±2%, providing reliable voltage regulation in electronic circuits. The maximum zener impedance of 350 ohms ensures stable operation under variable input conditions.
With a maximum reverse leakage current of only 50 nA, it minimizes leakage losses and improves energy efficiency. The diode’s compact dimensions of 1 mm length and 0.47 mm height suit dense circuit boards and portable devices.
Designed for automotive and industrial applications, it operates effectively in harsh temperature conditions ranging from -55°C to 150°C. The diode is qualified to the AEC-Q101 standard and compliant with RoHS directives.
Its side-wettable flanks enhance solderability and manufacturing yield when mounted on surface-mount device (SMD) assembly lines. This product is ideal for use in automotive electronics, industrial power supplies, and general voltage regulation applications in semiconductor devices.
The diode supports a test current of 5 mA and a zener voltage tolerance of ±2%. Maximum zener impedance is 350 ohms, ensuring stable voltage regulation. Maximum reverse leakage current is limited to 50 nA for efficient operation.
Device dimensions include a length of 1 mm and a height of 0.47 mm, enabling compact PCB layouts. Operates reliably between -55°C and 150°C operating temperature range, suitable for automotive use. Complies with RoHS and AEC-Q101 automotive standard certifications.
Comes with side-wettable flanks for enhanced solderability in manufacturing. Explore more high-quality semiconductor components in the Electronics & Electricals category at EnvMart.
