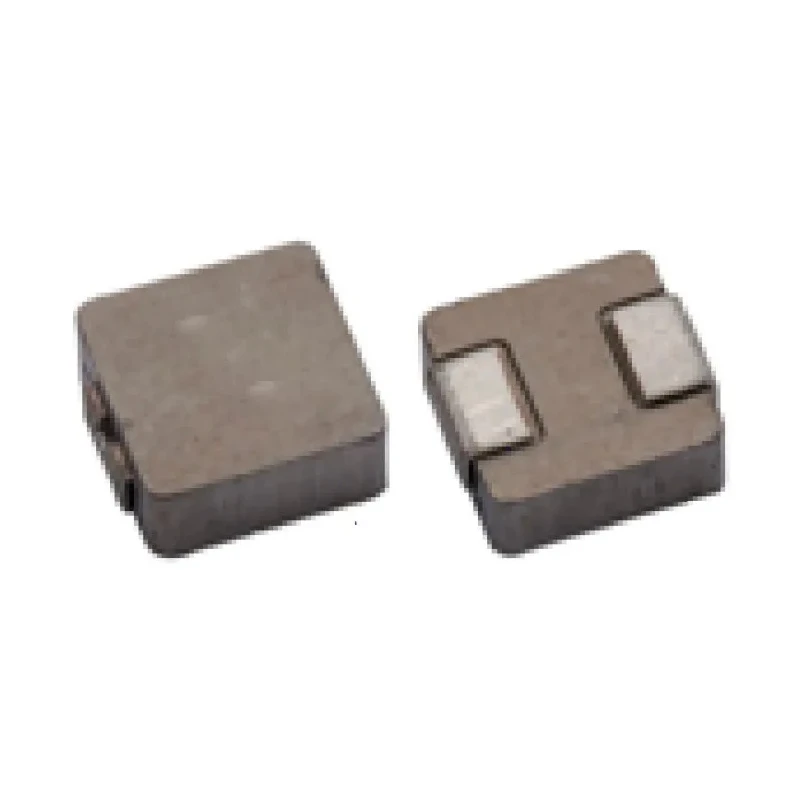

Abracon Shielded Surface Mount Inductor Iron Core 1μH Flat Wire Winding ±20% 19A IDC ASPI-1040HI-1R0M-T05
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4mm |
| Length | 11.5mm |
| Model | ASPI-1040HI-1R0M-T05 |
| Depth | 4mm |
| Packaging | Tape & Reel |
| Series | ASPI-1040HI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 19A |
| Pin Count | 2 |
| Maximum DC Resistance | 3.3mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Constructed with an iron core ensuring high saturation currents and low losses.
- Flat wire winding design supports frequency applications up to 3 MHz.
- Maximum DC resistance is low at 3.3 milliohms for efficiency.
- Operates reliably between -55°C minimum and 125°C maximum temperatures.
- Surface mount termination style suitable for reflow soldering processes.
- Packaged in tape and reel for efficient automated assembly.
- Compact dimensions with 11.5 mm length, 4 mm height, and 4 mm depth.
- Complies with RoHS standards for environmental safety.
Product Description
Abracon ASPI-1040HI-1R0M-T05 is a shielded surface mount inductor with an iron core providing 1 μH inductance and a flat wire winding construction. This inductor offers a tolerance of ±20% and supports a maximum DC current of 19 A, making it excellent for high current power applications. The compact package measures 11.5 mm length, 4 mm height, and 4 mm depth, with a surface mount termination style suitable for modern PCB assembly through reflow soldering.
This power inductor is molded for durability and designed to operate within a broad temperature range from -55°C to 125°C. It features low DC resistance of 3.3 milliohms, contributing to lower power losses and improved efficiency. The inductor is engineered to handle frequencies up to 3 MHz, ideal for use in DC/DC converters found in notebooks, desktops, servers, and other low-profile, high current power supply applications.
Shielding and iron core construction enhance performance by reducing electromagnetic interference and ensuring stable inductance under load. The component adheres to RoHS compliance, ensuring that it meets environmental regulatory standards.
Packaged in tape and reel, it facilitates efficient automated insertion in manufacturing processes. Constructed with iron core for high saturation current and low loss. Flat wire winding suitable for frequencies up to 3 MHz.
Low DC resistance reduces power dissipation. Wide operating temperature range from -55°C to 125°C. Surface mount termination compatible with reflow soldering. Tape and reel packaging supports automated assembly. Compact dimensions enable space-saving PCB design.
RoHS compliant for eco-friendly manufacturing. Designed for high current DC/DC converters in computing and server applications.
This Abracon surface mount inductor combines reliability, performance, and compact design to fulfil demanding electronic component needs within industrial, computing, and telecommunications sectors. For further browsing, explore more Surface Mount Inductors and Abracon brand products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH.
It supports a maximum DC current of 19 A.
This inductor operates reliably within a temperature range of -55°C to 125°C.
The maximum DC resistance is 3.3 milliohms.
It is constructed with an iron core, which enhances its performance.
It is packaged in tape and reel format, facilitating efficient automated assembly.
The termination style is surface mount, suitable for reflow soldering processes.
The flat wire winding design supports frequency applications up to 3 MHz.
It complies with RoHS standards for environmental safety.
The dimensions are 11.5 mm in length, 4 mm in height, and 4 mm in depth.
It is designed for high current DC/DC converters in computing and server applications.
This model has a pin count of 2.
