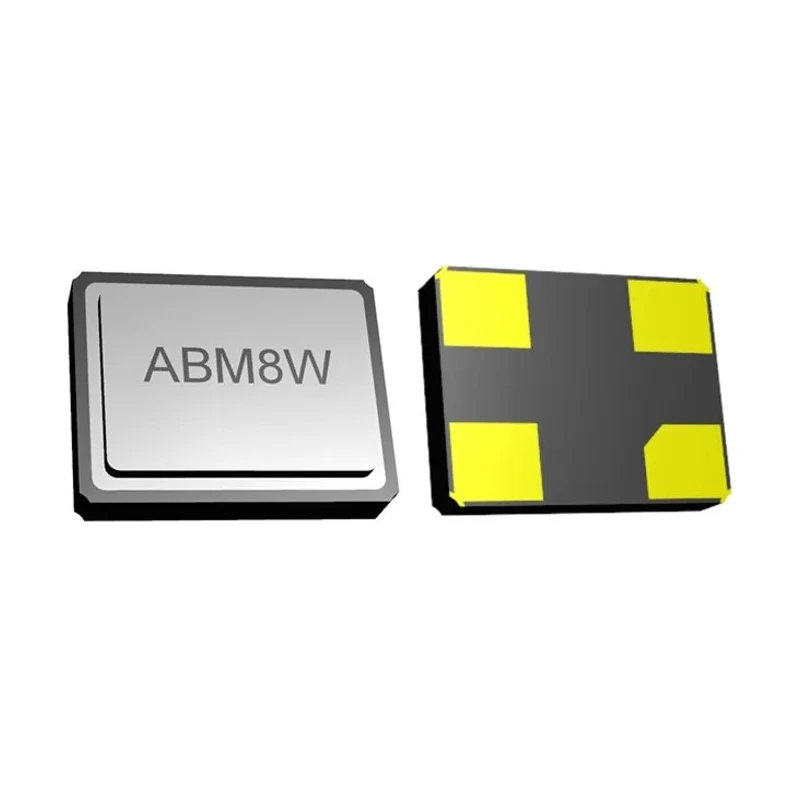

Abracon 12 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width ABM8W-12.0000MHZ-8-K1Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | ABM8W-12.0000MHZ-8-K1Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8W |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 4pF |
| Series Resistance | 100Ω |
Key Features
- Standard frequency of 12MHz ensures precise oscillations.
- Surface mount package allows compact PCB assembly.
- Pin count of 4 suitable for various electronic applications.
- Load capacitance rating of 4pF supports optimal circuit matching.
- Operational temperature range from -40°C to 125°C for wide environment use.
- Series resistance of 100Ω to maintain signal integrity.
- Compliant with RoHS directives ensuring lead-free and environmentally safe product.
- Seam sealed quartz crystal delivers long-term reliability and stability.
Product Description
Abracon ABM8W-12.0000MHZ-8-K1Z-T3 12 MHz Crystal Unit is a precision surface mount device designed for stable frequency generation with ±10 ppm tolerance and a 4-pin configuration. This crystal unit operates within a temperature range of -40°C to 125°C, making it suitable for diverse industrial, consumer electronics, and Internet of Things (IoT) applications. Its low profile with 0.75 mm height and compact 3.2 x 2.5 mm footprint facilitates integration into modern PCB assemblies.
The unit features a 4pF load capacitance and maintains a series resistance of 100Ω, ensuring signal quality and circuit matching. It complies with RoHS and RoHS II regulations, guaranteeing environmentally responsible manufacture with lead-free construction. The crystal is seam sealed for enhanced long-term reliability, ideal for applications requiring consistent oscillations like wearables, Bluetooth modules, ultra-low power MCUs, wireless modules, and machine-to-machine communications.
This surface mount crystal is supplied in a tape & reel package, suitable for automated manufacturing processes to boost production efficiency. Its automotive non-certified status indicates optimized performance outside automotive standards but fits well into general electronics uses. The ABM8W series is recognized for energy saving in wearable technologies and IoT devices.
Standard frequency of 12MHz ensures precise oscillations. Compact surface mount form factor with low profile design. 4-pin configuration for versatile circuit integration. Wide operating temperature range from -40°C to 125°C.
4pF load capacitance for optimized circuit matching. Series resistance of 100Ω for signal integrity. RoHS compliance ensures environmentally safe materials. Seam sealed quartz crystal provides long-term stability. Supplied in tape & reel packaging for automation compatibility.
Targeted for IoT, wearables, BLE, wireless modules, and M2M connectivity.
Suitable for industrial, consumer electronics, communication, and IoT applications requiring precise frequency control and miniaturized form factor. Browse more Crystal Units and oscillator solutions at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz, ensuring precise oscillations for various applications.
This model has a load capacitance rating of 4 pF, which supports optimal circuit matching.
The operational temperature range for this crystal unit is from -40°C to 125°C, making it suitable for a wide variety of environments.
The series resistance of this crystal unit is 100Ω, which helps maintain signal integrity.
It is supplied in a tape & reel packaging, making it suitable for automated manufacturing processes.
The dimensions of this crystal unit are 3.2 mm in length, 2.5 mm in width, and it has a height of 0.75 mm.
This model uses a surface mount type, allowing for compact PCB assembly.
It is suitable for industrial, consumer electronics, communication, and IoT applications requiring precise frequency control.
Yes, it complies with RoHS standards, ensuring that it is lead-free and environmentally safe.
The seam sealing enhances long-term reliability and stability, making it ideal for applications requiring consistent oscillations.
This crystal unit has a pin count of 4, making it suitable for various electronic applications.
This model belongs to the ABM8W series, recognized for energy saving in wearable technologies and IoT devices.
