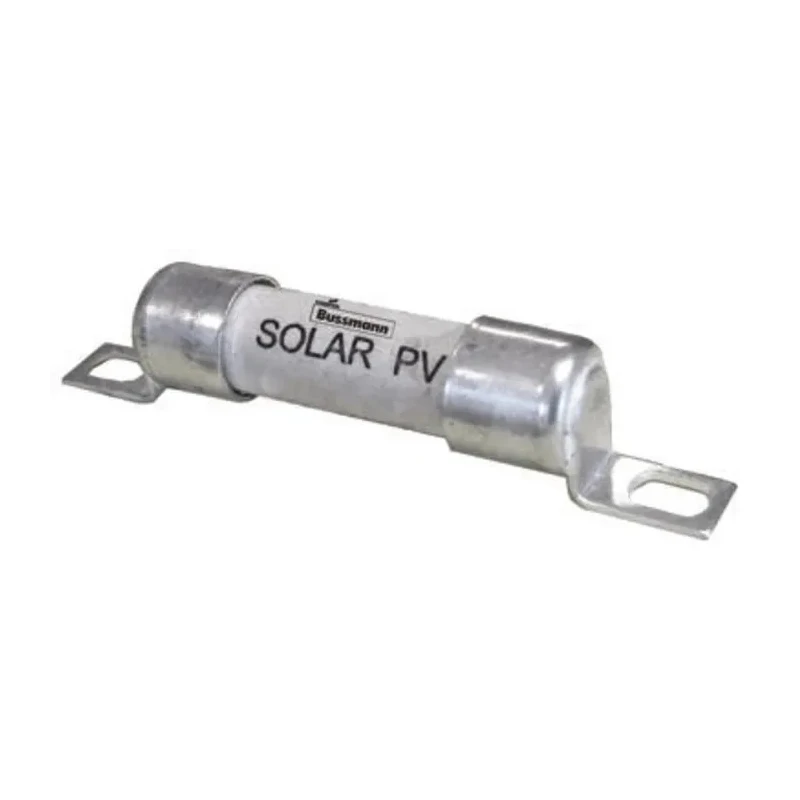

Eaton Bolt Fixing Photovoltaic Fuse 10A Current Rating 10 x 38 mm Fuse Size 1000V dc Voltage PV-10A10-T

Name: Eaton Bolt Fixing Photovoltaic Fuse 10A Current Rating 10 x 38 mm Fuse Size 1000V dc Voltage PV-10A10-T
Brand: Eaton
SKU: 216196



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	1000V dc
Diameter	10.4mm
Brand	Eaton
Height	10.4mm
Length	38.5mm
Model	PV-10A10-T
Width	52mm
Overall Length	59.8mm
Current Rating	10A
Series	PV
Standards/Approvals	CSA, RoHS, CE, CCC, IEC 60269-6, UL
Fuse Size	10 x 38 mm
Fixing Centres	49.7 mm
Tag Width	6.6mm
Tag Orientation	Offset
Application Category	gPV

Key Features

Designed for photovoltaic applications ensuring high reliability under DC voltage.
10A current rating suitable for medium power circuits.
Provides high rupture capacity for enhanced safety.
Compact physical dimensions enable easy installation in fuse holders.
Offset tag orientation facilitates bolt fixing and secure mounting.
Fabricated with compliance to multiple international standards including CSA, CE, UL, CCC, RoHS, and IEC 60269-6.
Manufactured in India assuring quality and adherence to local industry requirements.
Overall length of 59.8 mm supports compatibility with standard fuse sockets.

Product Description

Eaton PV-10A10-T Bolt Fixing Photovoltaic Fuse is engineered for demanding photovoltaic environments requiring DC voltage protection up to 1000V dc. This fuse features a 10A current rating and 10 x 38 mm fuse size, designed specifically to protect photovoltaic circuits from overcurrent conditions efficiently and safely.

Constructed with high rupture capacity, it ensures safe interruption of fault currents, minimizing risk of damage to associated electrical equipment. The fuse includes an offset tag orientation designed for bolt fixing, allowing secure electrical connection and reliable mechanical stability in fuse holders.

Key physical dimensions include a length of 38.5 mm, overall length of 59.8 mm, height of 10.4 mm, diameter of 10.4 mm, and width of 52 mm, making it suitable for compact installations. The 6.6 mm tag width and 49.7 mm fixing centres align with industry standards, facilitating straightforward replacement and mounting.

Eaton, formerly known as Bussmann, adheres to international standards such as CSA, CE, UL, CCC, RoHS, and IEC 60269-6, ensuring product safety, reliability, and environmental compliance. Manufactured in India, this fuse meets both local and international quality requirements for photovoltaic system protection.

This fuse is ideal for industrial electrical systems, solar power installations, and other low-voltage DC circuit protection applications in industrial, commercial, and renewable energy sectors.

Designed for photovoltaic applications ensuring high reliability under DC voltage. 10A current rating suitable for medium power circuits. Provides high rupture capacity for enhanced safety. Compact physical dimensions enable easy installation in fuse holders.

Offset tag orientation facilitates bolt fixing and secure mounting. Fabricated with compliance to multiple international standards including CSA, CE, UL, CCC, RoHS, and IEC 60269-6. Manufactured in India assuring quality and adherence to local industry requirements.

Overall length of 59.8 mm supports compatibility with standard fuse sockets. Applicable 49.7 mm fixing centres for stable and secure installations. Browse EnvMart for Eaton Fuses and photovoltaic system protection components to find the best solutions for your electrical safety and efficiency requirements.
