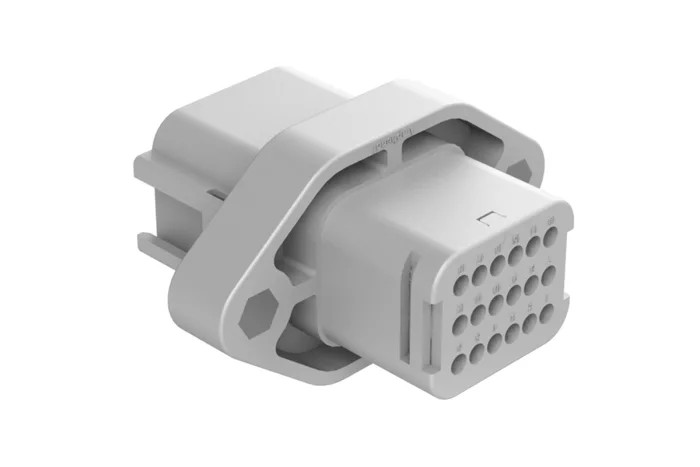

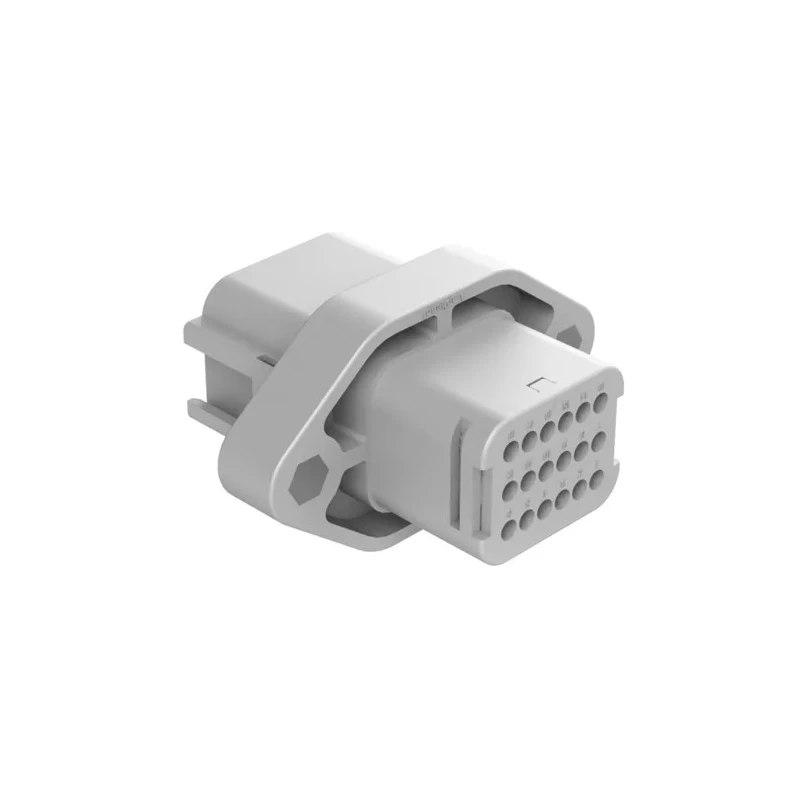

Amphenol Industrial ATV Automotive Connector Female Grey Flange 18 Way Solder Termination ATV02-18PA-RR01
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 0.145in |
| Brand | Amphenol Industrial |
| Colour | Grey |
| Current | 13A |
| Height | 45.4mm |
| Model | ATV02-18PA-RR01 |
| Depth | 68.4mm |
| IP Rating | IP69K, IP67 |
| Width | 81.1mm |
| Gender | Female |
| Mount Type | Flange |
| Housing Material | Thermoplastic |
| Series | ATV |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Standards/Approvals | RoHS |
| Number of Contacts | 18 |
Key Features
- Features an 18 position flange mount receptacle with size 16 contacts and key A configuration.
- Designed for solder termination to ensure secure electrical connections.
- Supports 13 ampere current with three rows of contacts for reliable performance.
- Constructed using thermoplastic housing, providing durability and IP69K/IP67 ingress protection rating.
- Operates efficiently within a wide temperature range from -55°C to 125°C.
- Compact dimensions of 81.1mm width, 68.4mm depth, and 45.4mm height for easy integration.
- Female gender connector with flange mount type enabling stable mechanical mounting.
- RoHS compliant ensuring adherence to environmental standards.
Product Description
Amphenol Industrial ATV02-18PA-RR01 automotive connector is a female receptacle designed for flange mounting in automotive and industrial electrical systems. It features 18 solder termination contacts arranged in three rows with size 16 contacts keyed A for precise mating. The connector supports a current rating of 13A and is constructed with durable thermoplastic housing material.
Designed to perform under harsh environmental conditions, it carries an IP69K and IP67 ingress protection rating, safeguarding against dust and water ingress. Its operational temperature range of -55°C to 125°C enables use in diverse industrial and automotive settings, including manufacturing, automotive wiring harnesses, and electrical control systems.
This grey connector flange is compact with physical dimensions of 81.1mm width, 68.4mm depth, and 45.4mm height, making it suitable for tight installation spaces. The product meets RoHS compliance, confirming environmentally safe material usage.
The connector’s flange mount type ensures secure and reliable mechanical attachment, while solder termination guarantees stable and robust electrical connections. Its female configuration is widely used in automotive circuits where reliable and consistent connections are critical.
18 position flange mount receptacle with size 16 contacts and key A. Female connector with solder termination for durability. 13A current rating suitable for automotive applications. Thermoplastic housing material with IP69K, IP67 protection.
Operational temperature from -55°C to 125°C for extreme conditions. Compact size for seamless integration into assemblies. RoHS compliant for environmental safety. Grey color for easy identification. Manufactured in China ensuring industry-standard quality.
This connector is ideal for industrial, automotive, manufacturing, and electronic applications requiring a reliable and high-performance connector. Browse EnvMart's extensive range of Automotive Connectors and industrial electrical components for complementary products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 13 amperes, making it suitable for various automotive and industrial applications.
The connector has compact dimensions of 81.1mm in width, 68.4mm in depth, and 45.4mm in height, facilitating easy integration into tight spaces.
It features solder termination, ensuring secure and stable electrical connections.
The connector carries an IP69K and IP67 ingress protection rating, providing excellent protection against dust and water ingress.
It operates efficiently within a temperature range of -55°C to 125°C, suitable for harsh environmental conditions.
This connector features a total of 18 contacts arranged in three rows, ensuring reliable performance in electrical connections.
The housing is constructed from thermoplastic material, providing durability and resistance to environmental factors.
Yes, this connector is RoHS compliant, ensuring it adheres to environmental safety standards.
It uses a flange mount type, which allows for stable mechanical attachment in various applications.
This model is a female connector, designed for precise mating in automotive wiring systems.
It is ideal for use in automotive wiring harnesses, electrical control systems, and other industrial applications requiring reliable connections.
This connector is manufactured in China, ensuring adherence to industry standards.
