Deutsch DTM Automotive Connector Female Grey Cable 8 Way Crimp Termination DTM04-08PA

Free Delivery in India | Lowest Global Shipping Charges

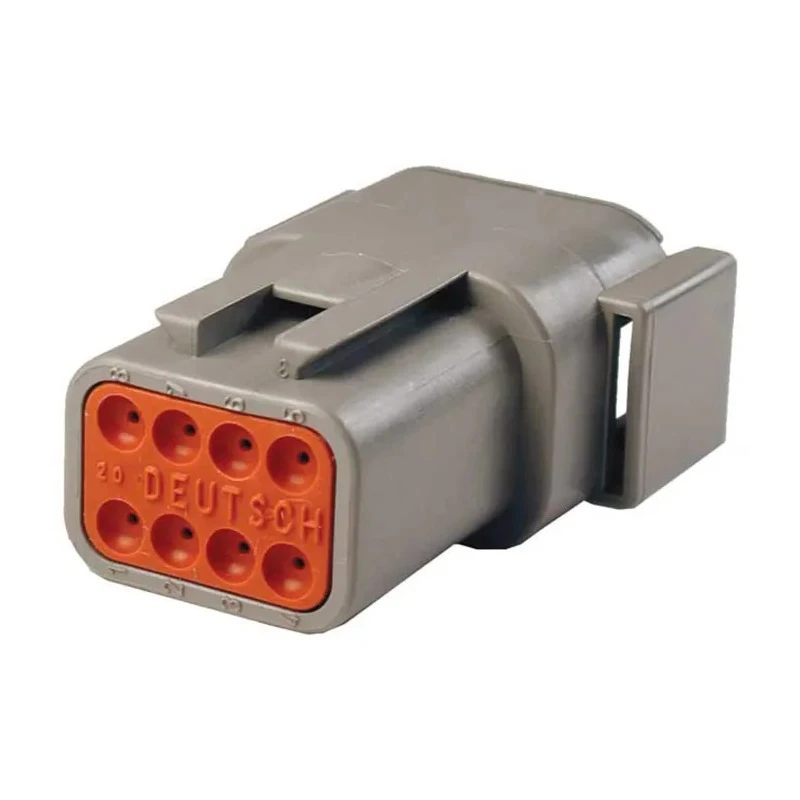

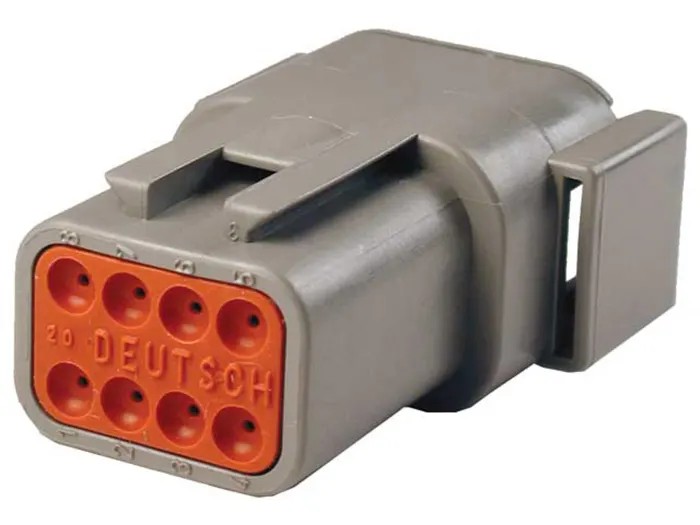

Deutsch DTM Automotive Connector Female Grey Cable 8 Way Crimp Termination DTM04-08PA

Name: Deutsch DTM Automotive Connector Female Grey Cable 8 Way Crimp Termination DTM04-08PA
Brand: Deutsch
SKU: 156340
Price: 5.88 USD
Availability: InStock



Category Automotive Connectors Brand Deutsch Condition New

Specifications

Country of Origin	India
Diameter	3.05mm
Brand	Deutsch
Colour	Grey
Current	7.5A
Height	20.22mm
Model	DTM04-08PA
Depth	43.69mm
IP Rating	IP68
Width	31.62mm
Gender	Female
Mount Type	Cable
Housing Material	Polyamide
Series	DTM
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Receptacle Housing
Minimum Operating Temperature	-55°C
Number of Rows	2
Standards/Approvals	EU RoHS, EU ELV
Number of Contacts	8

Key Features

Features 8 contacts designed to carry up to 7.5 amperes continuously.
Receptacle housing type with integrated latch for secure mating.
Operating temperature range from -55°C to 125°C.
IP68 rated for excellent water and dust resistance.
Made with durable polyamide housing material for long-term use.
Designed with 2 rows of contacts and suitable for cable mount installation.
Diameter of 3.05 mm ensuring compatibility with size 20 DEUTSCH contacts.
Compliant with EU RoHS and ELV standards for environmental safety.

Product Description

Deutsch DTM04-08PA automotive connector female is a high-quality electrical connector featuring an 8-way crimp termination with a grey cable. This connector is built for rugged environments requiring secure and reliable connections. The receptacle housing uses size 20 DEUTSCH contacts rated at 7.5 amps continuous current, ensuring robust performance.

The housing is made of durable polyamide material, providing resistance to mechanical stress and chemical agents. Designed with two rows of contacts and an integrated latch, this cable-mount connector offers ease of installation and secure mating. It supports operation within a temperature range from -55°C to 125°C, making it suitable for demanding industrial and automotive applications.

With an IP68 rating, the connector provides excellent protection against dust ingress and water immersion, compliant with rigorous standards. Dimensions include a height of 20.22 mm, width of 31.62 mm, and depth of 43.69 mm, making it compact yet reliable for space-constrained installations.

This product adheres to EU RoHS and ELV directives, reflecting a commitment to environmental safety. Ideal use cases include automotive wiring harnesses, industrial machinery, and equipment subjected to harsh environmental conditions where dependable performance is critical.

Features 8 contacts designed to carry up to 7.5 amperes continuously. Receptacle housing type with integrated latch for secure mating. Operating temperature range from -55°C to 125°C. IP68 rated for excellent water and dust resistance.

Made with durable polyamide housing material for long-term use. Designed with 2 rows of contacts and suitable for cable mount installation. Diameter of 3.05 mm ensuring compatibility with size 20 DEUTSCH contacts. Compliant with EU RoHS and ELV standards for environmental safety.

Grey colored connector housing for easy identification. Suitable for industrial, automotive, and harsh environment applications. Explore the comprehensive range of Automotive Connectors in the Electronics & Electricals category at EnvMart for your industrial and automotive electrical connection needs.
