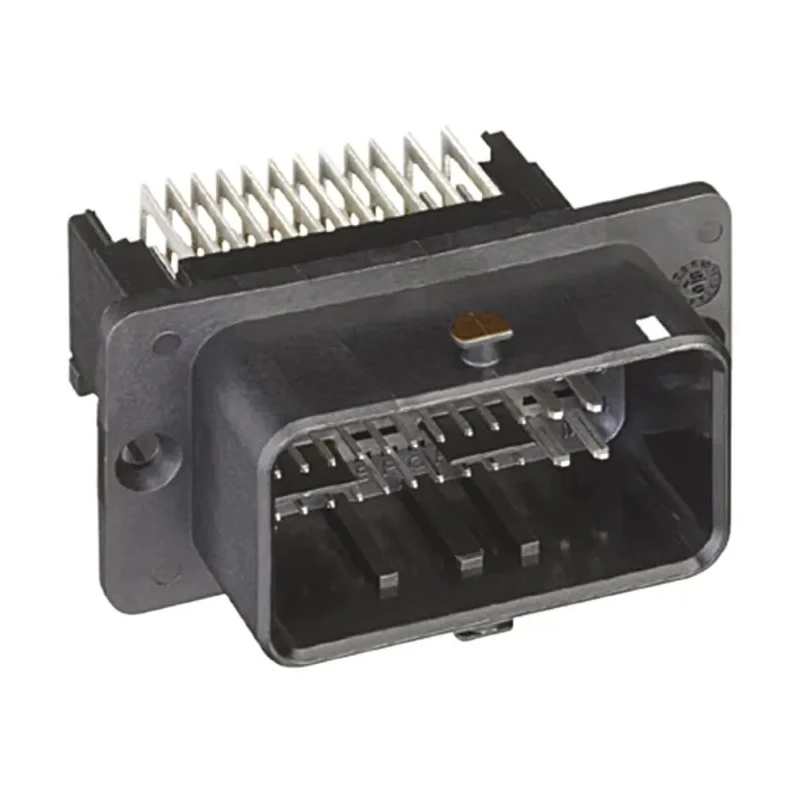

Molex CMC Automotive Connector Header 48 Way Solder Termination Nylon Housing Brass Contacts Tin Plating 36638-0003

Molex 36638-0003 automotive connector header 48 way solder termination is a highly reliable electrical connector designed for automotive applications and PCB wire-to-board connections. It features a robust nylon housing combined with brass contacts plated in tin, providing excellent electrical conductivity and corrosion resistance. Rated for a continuous current of 6A, this connector supports 48 contacts arranged across 4 rows, ensuring comprehensive connectivity for complex circuits.

This automotive connector is part of the CMC series, known for hybrid capabilities that allow the housing to accept up to three different terminal sizes: 0.63mm, 1.50mm, and 2.80mm, facilitating versatile design options. The right-angle mount header style makes it ideal for PCB layouts requiring compact and secure wire terminations.

Engineered to meet automotive environmental standards, the connector offers an IP67 rating, protecting against dust ingress and water immersion, critical for harsh operational conditions. Its operating temperature range of -40°C to 125°C further confirms its suitability for demanding automotive and industrial environments.

The nylon housing provides mechanical stability and chemical resistance, while the brass contact material paired with tin plating ensures long-term reliable electrical contact with minimal degradation. This product is perfect for use in automotive electrical systems, industrial machines, and electronics manufacturing where durability and dependable connectivity are required.

Package includes one 48-way automotive connector header with solder termination. Compatible mating connectors typically include Molex part numbers 723-9347, 723-9359, and 774-8144, allowing easy system integration.

This automotive connector header supports 48 contacts arranged in 4 rows for secure and reliable connections. It employs solder termination and right-angle mounting ideal for PCB wire-to-board applications. The nylon housing material ensures durability and resistance to environmental factors.

Brass contact material with tin plating enhances conductivity and corrosion resistance. The connector is rated IP67, offering dust-tight and water immersion protection. Operating temperature ranges from -40°C to 125°C, suitable for automotive environments.

Designed as a hybrid CMC connector capable of accommodating multiple terminal sizes. This header is compatible with mating connectors such as stock numbers 723-9347, 723-9359, or 774-8144. Explore more Automotive Connectors and Molex products on EnvMart for quality components suited to industrial and automotive electronic assembly requirements.
