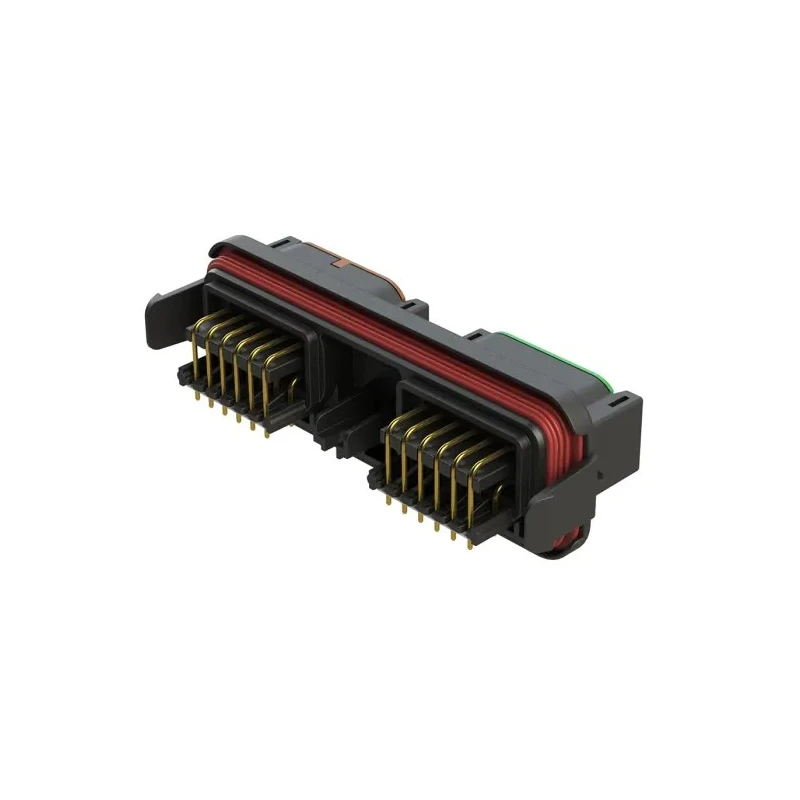

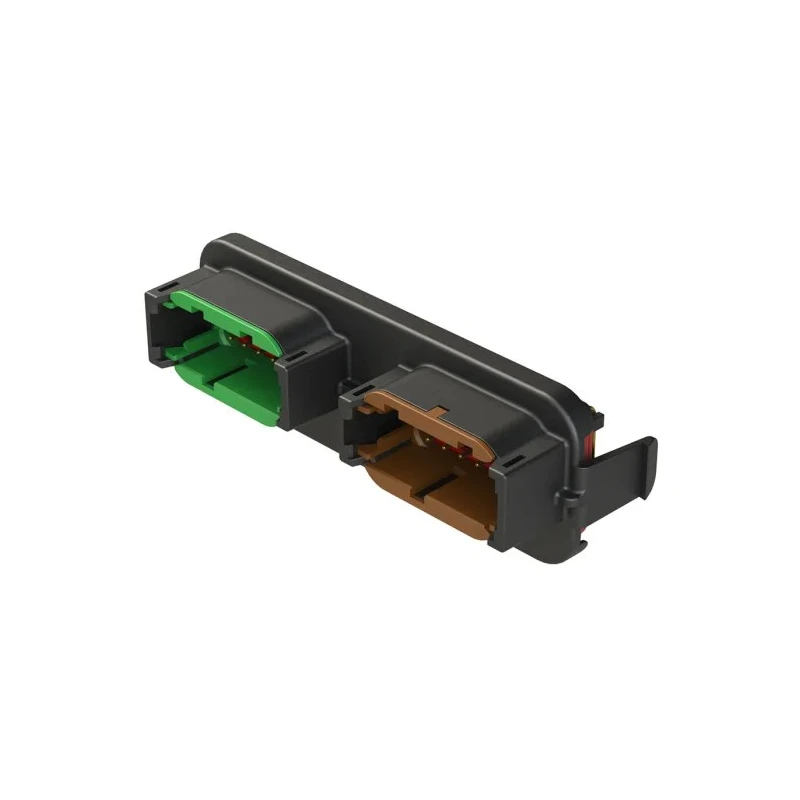

Amphenol Industrial Armor IPX Automotive Connector Male Black PCB 7.5A 24 Way Solder Termination ATM13-12PC-12PD-BM01
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Black |
| Current | 7.5A |
| Height | 35mm |
| Model | ATM13-12PC-12PD-BM01 |
| Depth | 36.9mm |
| IP Rating | IP69K |
| Width | 101mm |
| Gender | Male |
| Mount Type | PCB |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Armor IPX |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Header |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Contact Plating | Gold Plated |
| Number of Contacts | 24 |
Key Features
- Features 24 contacts arranged in 2 rows for robust connectivity.
- Constructed with thermoplastic housing and copper alloy contacts for durability.
- Gold-plated contacts ensure excellent conductivity and corrosion resistance.
- Designed for PCB mounting with solder termination type and male gender.
- Rated for IP69K protection against ingress of dust and water at high pressure.
- Operates efficiently across a temperature range from -55°C to 125°C.
- Suitable for demanding automotive and industrial environments with a current rating of 7.5A.
Product Description
Amphenol Industrial ATM13-12PC-12PD-BM01 Armor IPX Automotive Connector is a high-quality male connector designed for secure PCB mounting and solder termination applications. This connector features 24 contacts organized in two rows with a current rating of 7.5A, suitable for automotive electrical systems and demanding industrial environments.
The housing is constructed from durable thermoplastic, offering excellent resistance against mechanical and environmental stresses, while copper alloy contacts with gold plating ensure reliable electrical performance and longevity by minimizing corrosion and contact resistance.
Rated IP69K, this connector provides exceptional protection against high-pressure water jets and dust ingress, making it ideal for automotive, industrial manufacturing, and harsh environment applications.
Its compact size of 101mm (W) x 36.9mm (D) x 35mm (H) fits well within PCB assemblies requiring robust, space-efficient connectors. The operating temperature range from -55°C to 125°C supports a wide range of climatic conditions and operational scenarios.
Features 24 contacts arranged in 2 rows for robust connectivity. Constructed with thermoplastic housing and copper alloy contacts for durability. Gold-plated contacts ensure excellent conductivity and corrosion resistance.
Designed for PCB mounting with solder termination type and male gender. Rated for IP69K protection against ingress of dust and water at high pressure. Operates efficiently across a temperature range from -55°C to 125°C. Compact dimensions: 101mm width, 36.9mm depth, and 35mm height.
Suitable for demanding automotive and industrial environments with a current rating of 7.5A.
This connector is engineered for use in automotive electrical connectors, industrial power and control assemblies, and applications requiring reliable IP-rated connectors for harsh environments. Its superior construction and materials offer high performance in demanding conditions.
Explore more high-quality connectors and automotive electrical components in the Electronics & Electricals category at EnvMart, your source for industrial-grade products.
Explore more products in our Automotive Connectors category.
