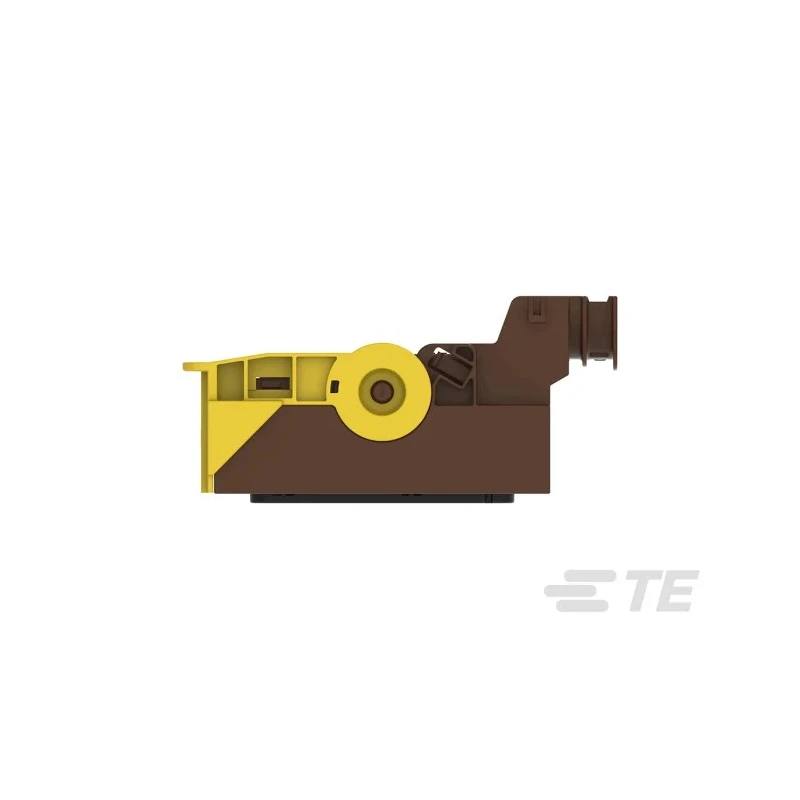

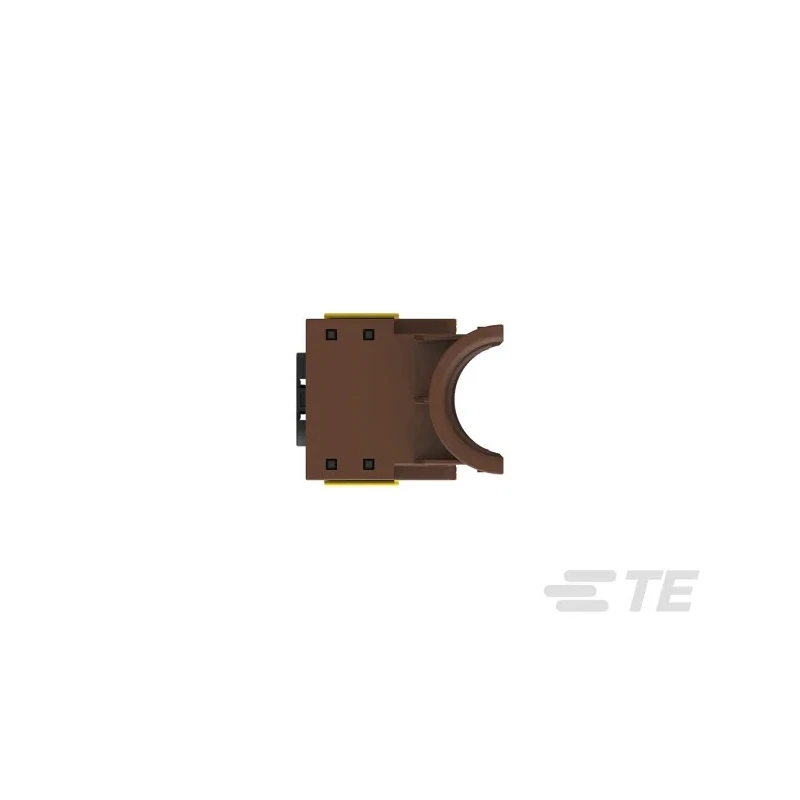

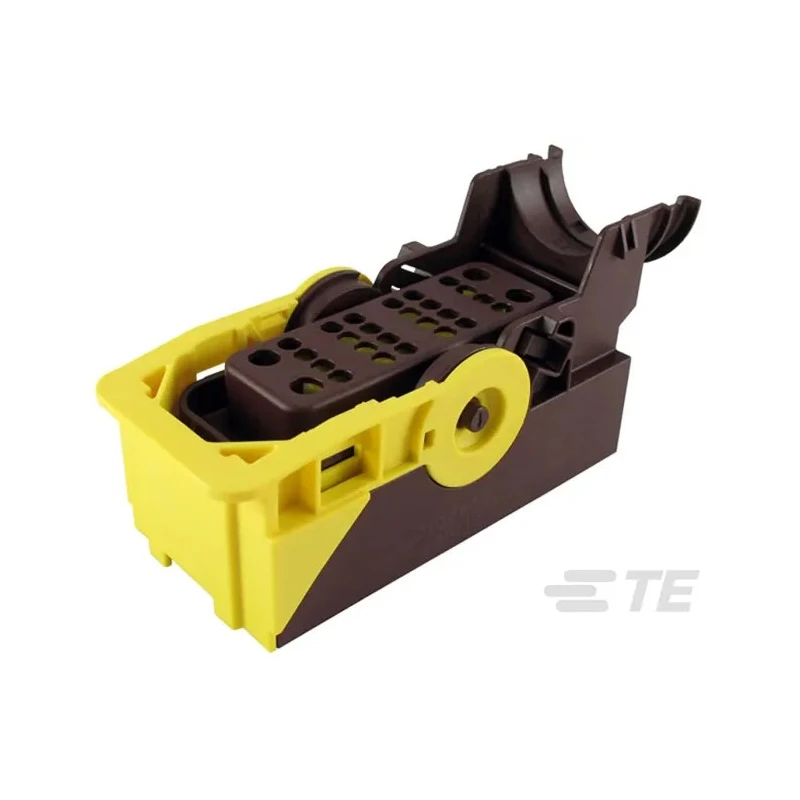

TE Connectivity AMPSEAL Automotive Connector Male Brown Panel Mount 28 Way Crimp Termination 2138839-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Brown |
| Current | 25A |
| Height | 46.25mm |
| Depth | 82.75mm |
| Width | 116.5mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | PBT |
| Series | Ampseal |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Standards/Approvals | ELV, REACH, RoHS, UL 94HB |
| Number of Contacts | 28 |
Key Features
- Panel mount connector designed for easy installation without tools.
- 28 contacts arranged across 4 rows support high current up to 25A.
- Housing made of durable PBT material with brown colour coding for correct application.
- Crimp termination ensures secure wire connections compatible with circular stamped or screw machine terminals.
- Operates reliably from -55°C to 125°C with compliance to ELV, REACH, RoHS, and UL 94HB standards.
- Hybrid pin arrangement includes 24 size 16 and 4 size 12 terminals offering design flexibility.
- Features lever slide mechanism for smooth mating, with sealed system protecting contacts and wiring.
- Tool-less mounting and unmounting via drop-and-slide mounting clip simplifies maintenance and installation.
Product Description
TE Connectivity 2138839-2 AMPSEAL Automotive Connector is a male, panel mount connector featuring 28 way crimp termination in a robust brown PBT housing. It is engineered for automotive and industrial electrical systems requiring durable and reliable high-current connections with easy installation and maintenance.
This connector supports 25A current with 28 contacts arranged in 4 rows, combining 24 size 16 and 4 size 12 terminals in a hybrid pin configuration. The crimp termination type ensures secure wire fastening compatible with various terminal styles including circular stamped and screw machine terminals.
The housing features a lever slide mechanism to facilitate smooth mating and unmating, alongside a sealed connector system that protects contacts from environmental exposure. The connector is suitable for panel mounting using a tool-less drop-and-slide clip for quick assembly and disassembly.
Its operating temperature range extends from -55°C to 125°C, making it suitable for harsh automotive environments. Compliances include ELV, REACH, RoHS, and flammability rating UL 94HB, ensuring safety and regulatory conformance.
Colour-coded mounting clips support easy installation across different panel thicknesses, while pre-staged and tool-less TPA (Terminal Position Assurance) on the plug enhances reliability and serviceability. The connector is ideal for pass-through bulkhead and wire-to-wire bracket mount applications in automotive and industrial electrical systems.
Panel mount connector designed for tool-less installation and removal. Durable PBT housing with brown color code for correct identification. 28 contacts supporting up to 25A current across 4 rows. Hybrid pin layout with multiple terminal sizes.
Sealed system protects wiring and connectors from environment. Lever slide mechanism ensures secure and smooth mating. Operating temperature range of -55°C to 125°C suitable for harsh conditions. Compliance with ELV, REACH, RoHS, and UL 94HB standards.
Colour-coded clips for different panel thicknesses. Tool-less drop-and-slide mounting clip for simplified maintenance.
TE Connectivity AMPSEAL Automotive Connector 2138839-2 is an essential component for automotive wiring harnesses, industrial electrical assemblies, and other professional-grade applications where reliable, high-current electrical connections and easy servicing are required. Explore more Automotive Connectors and technical products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 25A.
It operates reliably within a temperature range of -55°C to 125°C.
The connector features 28 contacts arranged across 4 rows, with a hybrid pin configuration of 24 size 16 and 4 size 12 terminals.
It utilizes crimp termination, ensuring secure wire connections compatible with various terminal styles.
The housing is made of durable PBT material, which is brown in color for correct application identification.
Yes, it complies with ELV, REACH, RoHS, and has a flammability rating of UL 94HB.
This model is designed for panel mounting and features a tool-less drop-and-slide mounting clip for easy installation.
The dimensions of this connector are 116.5mm in width, 82.75mm in depth, and 46.25mm in height.
The lever slide mechanism facilitates smooth mating and unmating of the connector, enhancing usability.
It is ideal for automotive wiring harnesses, industrial electrical assemblies, and other professional-grade applications requiring high-current connections.
The country of origin for this connector is India.
