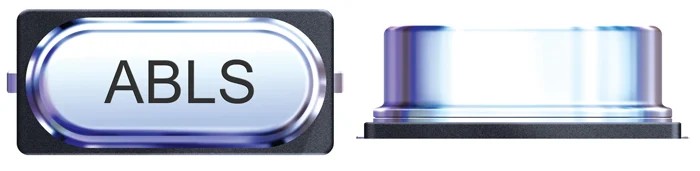

Abracon 13.56 MHz Crystal Unit ±30 ppm HC-49-US Through Hole 2-Pin 11.5mm x 4.7mm x 4.2mm ABLS-13.560MHZ-10-R20-D-T

The Abracon ABLS-13.560MHZ-10-R20-D-T Crystal Unit is a high-performance 13.56 MHz frequency crystal designed for precision timing and frequency control in electronic circuits.

Featuring a through-hole mounting style with 2 pins, this HC-49-US package device measures 11.5 mm length, 4.7 mm width, and 4.2 mm height, making it suitable for PCB integration where stability and durability are necessary.

This crystal unit ensures tight frequency tolerance of ±30 ppm and temperature stability of ±50 ppm, guaranteeing reliable performance in environments ranging from 0°C to 70°C. It has a load capacitance of 16 pF and a series resistance of 50 Ω, optimized for low signal loss and effective oscillation.

RoHS compliant and lead-free, this crystal is available in tape and reel packaging, supporting automated manufacturing lines for efficient assembly. It meets industry standards without automotive certification, suitable primarily for commercial and industrial electronics.

Common applications include use in computers, modems, microprocessors, and wireless communications, where accurate clock generation and stable frequency references are critical. This 13.56 MHz crystal unit offers tight frequency accuracy and temperature stability.

The HC-49-US package provides robust mechanical protection. Designed for through-hole mount PCBs with 2-pin connections. Compliant with RoHS regulations for environmental safety. Available in tape and reel packaging for streamlined production.

Wide operating temperature range from 0°C to 70°C for versatile deployment. Suitable for industrial, communication, and computing equipment. Explore our extensive electronics components catalog on EnvMart for more precision oscillator and Crystal Units from top brands like Abracon.
