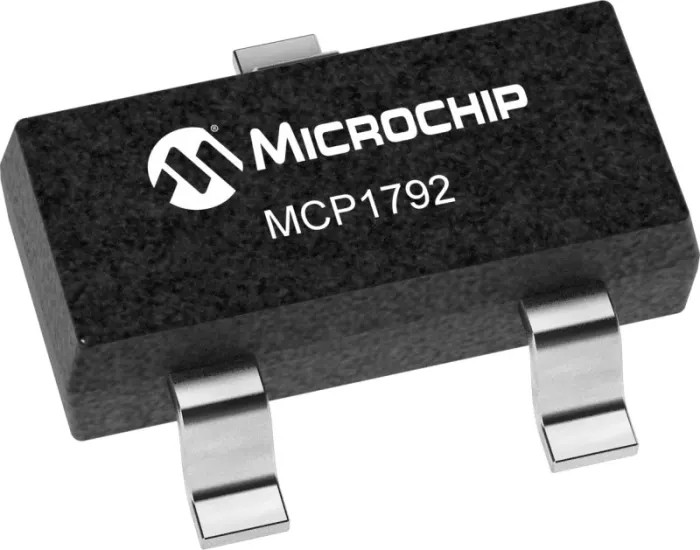

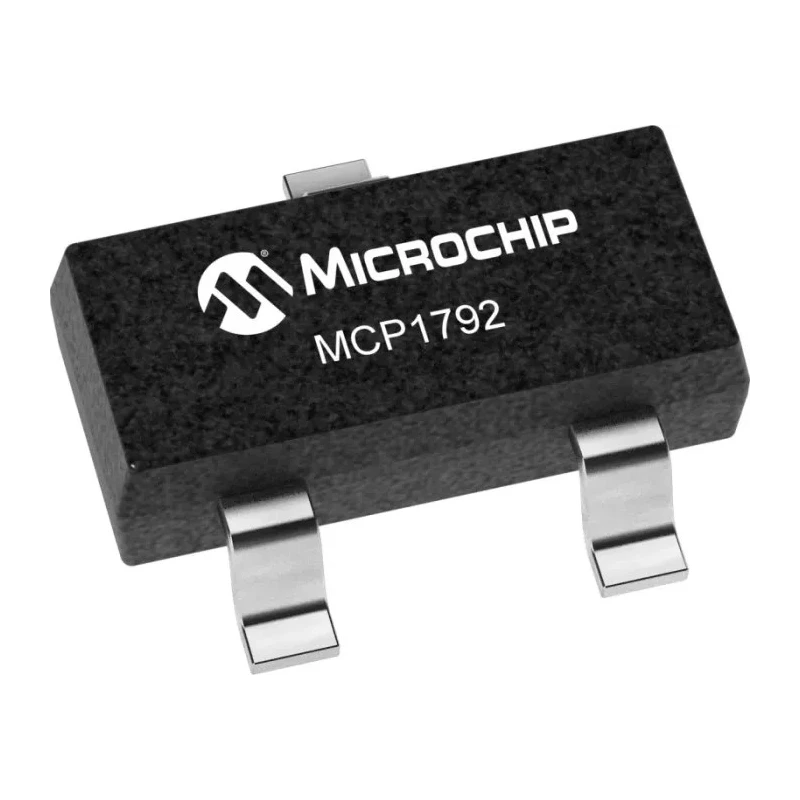

Microchip Voltage Regulator 16V SOT-23A 3-Pin MCP1792T-3302H/CB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip MCP1792T-3302H/CB, Voltage Regulator 16V SOT-23A 3-Pin RS S |
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | MCP1792T-3302H/CB |
| Width | 2.8mm |
| Mount Type | Surface |
| Series | MCP1792 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23A |
| Maximum Input Voltage | 16V |
| Quiescent Current | 25mA |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 3.6V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Operates with input voltage up to 16V, ideal for automotive and industrial applications.
- Provides a regulated output voltage with low quiescent current of 25 mA for energy-efficient operation.
- Compact SOT-23A package with dimensions 2.9 mm length, 2.8 mm width, and 1.45 mm height.
- Suitable for surface mount with 3 pins for easy PCB integration.
- Features overtemperature shutdown and short-circuit current foldback for device protection.
- Automotive standard AEC-Q100 compliant, ensuring reliability in harsh environments.
- Maximum operating temperature rated at 125°C for high-temperature endurance.
- Quiescent current of 25 mA reduces power losses during standby.
Product Description
Microchip MCP1792T-3302H/CB is a high-voltage low dropout (LDO) voltage regulator capable of delivering 100 mA output current. Packaged in a compact SOT-23A 3-pin surface mount package, it supports input voltages up to 16 V, making it suitable for automotive and industrial power management applications.
This voltage regulator features a low quiescent current of 25 mA that enables energy-efficient power supply regulation. Its robust design includes current foldback protection against short circuits and thermal shutdown for overheating scenarios, ensuring device safety and reliability.
The product meets the stringent automotive AEC-Q100 standard, supporting operating temperatures up to 125°C, which allows it to withstand harsh automotive and industrial environments. The regulator is RoHS compliant, supporting environmentally friendly manufacturing practices.
Key features include a compact footprint with a 2.9 mm length, 2.8 mm width, and 1.45 mm height, optimizing board space usage. The 3-pin configuration facilitates easy surface mounting on printed circuit boards in complex layouts.
Input voltage range up to 16 V with a minimum of 3.6 V. Low quiescent current of 25 mA for efficient power consumption. Short-circuit current foldback and thermal shutdown protections. Certified automotive standard AEC-Q100.
Compact SOT-23A 3-pin surface mount package with precise dimensions. RoHS compliant ensuring reduced environmental impact.
This voltage regulator is ideal for power management in automotive electronics, industrial machinery, and other electronic systems requiring reliable voltage regulation within compact form factors. Its robust protections and automotive certification make it a trusted choice for demanding applications.
Explore more high-quality Voltage Regulators and power management ICs at EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 16V.
It has a low quiescent current of 25 mA, which helps reduce power losses during standby.
The SOT-23A package measures 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height.
The maximum operating temperature is rated at 125°C, allowing it to endure harsh environments.
Yes, it is compliant with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
This voltage regulator is designed for surface mounting with a 3-pin configuration.
It features overtemperature shutdown and short-circuit current foldback for device protection.
The minimum input voltage for this model is 3.6V.
It is suitable for automotive electronics, industrial machinery, and other electronic systems requiring reliable voltage regulation.
The MCP1792T-3302H/CB has a pin count of 3.
Yes, it is RoHS compliant, supporting environmentally friendly manufacturing practices.
This model is capable of delivering an output current of 100 mA.
