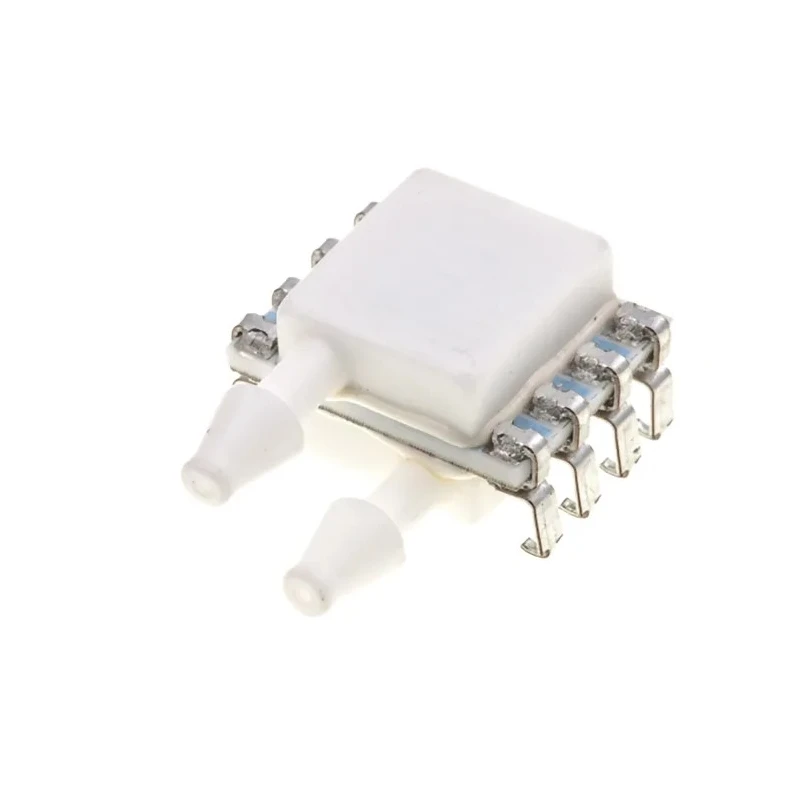

TE Connectivity Differential Pressure Sensor PCB Mount Dual Sideport 8 Pin 3.3V ±0.25% Accuracy 4525DO-DS3BK001DPL

TE Connectivity 4525DO-DS3BK001DPL Differential Pressure Sensor is a compact, ceramic-based PCB mounted transducer designed for precise pressure measurements. It features a dual sideport package with 8 pins suitable for integration on electronic circuit boards.

Manufactured using proprietary UltraStable™ technology and advanced CMOS sensor conditioning circuitry, this sensor delivers a stable 14-bit digital output for pressure and an 11-bit output for temperature.

This sensor can accurately measure differential pressures ranging from 1 psi minimum operating pressure to a maximum operating pressure of 150 psi, withstanding overload pressures up to 300 psi. It maintains accurate performance over a temperature range from -25°C to 105°C. The device meets the EN 61000-4-2 standard, ensuring robustness against electrostatic discharge.

Its small footprint with dimensions of 12.5mm (length) and 9.9mm (height) allows for compact system designs. The dual sideport design enables easy pressure port connections and PCB mounting, suitable for applications in electronics, industrial monitoring, and pneumatic systems.

Offers differential pressure sensing capabilities with a maximum operating pressure of 150 psi. Equipped with dual sideport package type for easy integration on PCB. Operates accurately within the temperature range of -25°C to 105°C.

Provides a 14-bit digital pressure output and 11-bit temperature output. Compact design with dimensions 12.5mm length and 9.9mm height for PCB mounting. Certified to EN 61000-4-2 standard for electromagnetic compatibility.

Features a proprietary UltraStable™ ceramic-based sensor technology. Supports a supply voltage range of 3.3V minimum to maximum supply voltage of 3.3V.

This pressure sensor IC is well suited for industrial, laboratory, HVAC, and manufacturing applications where reliable differential pressure measurement is required. For more options and details on pressure sensors, browse the Electronics & Electricals Sensors Pressure Sensor ICs collection on EnvMart.
