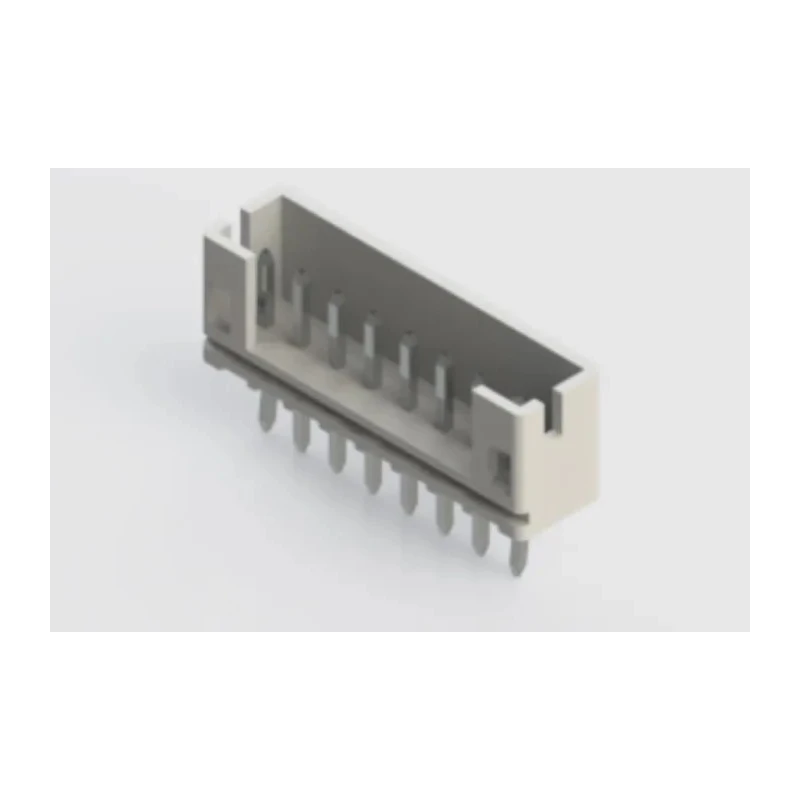

EDAC 140 Series Vertical Through Hole PCB Header 8 Contacts 2 mm Pitch 1 Row Shrouded 140-508-415-001

EDAC 140-508-415-001 is a high-quality Vertical Through Hole PCB Header designed for industrial and electronic applications requiring reliable wire-to-board connections. This connector features 8 female contacts arranged in a single-row, spaced at a precise 2 mm pitch, ensuring compatibility with a wide range of PCB designs.

The housing is made of flame-retardant polyamide 66 material, rated UL94V-0, providing excellent mechanical stability and electrical insulation. The connector has a shrouded design to protect contacts and improve mating reliability in high-density assemblies.

Constructed with brass contacts plated in tin, the header ensures strong electrical conductivity and corrosion resistance. It is suitable for operation in temperatures ranging from -40°C to 105°C, allowing for use in demanding industrial, manufacturing, and electronic environments.

The connector supports a continuous current rating of 2 amperes and an operating voltage up to 100 volts, catering to various signal and power applications. Its through-hole mount type guarantees robust mechanical connection to the PCB, and the solder termination type with 3.4 mm tail pins facilitates dependable assembly processes.

Designed for high-density internal wire to PCB connection. Durable polyamide 66 housing with UL94V-0 flame retardancy. Brass contacts with tin plating ensure reliable conductivity. Wide operating temperature range from -40°C to 105°C.

Solder termination and 3.4 mm tail pin length for secure soldering. Supports 2A current and 100V voltage operation. Compliant with RoHS environmental standards. Vertical orientation, shrouded with 1 row and 2 mm pitch.

This EDAC 140 series PCB header is ideal for use in electronic component manufacturing, industrial control systems, telecommunications equipment, and other high-reliability applications. It helps ensure stable electrical connections and mechanical robustness in PCB assemblies.
