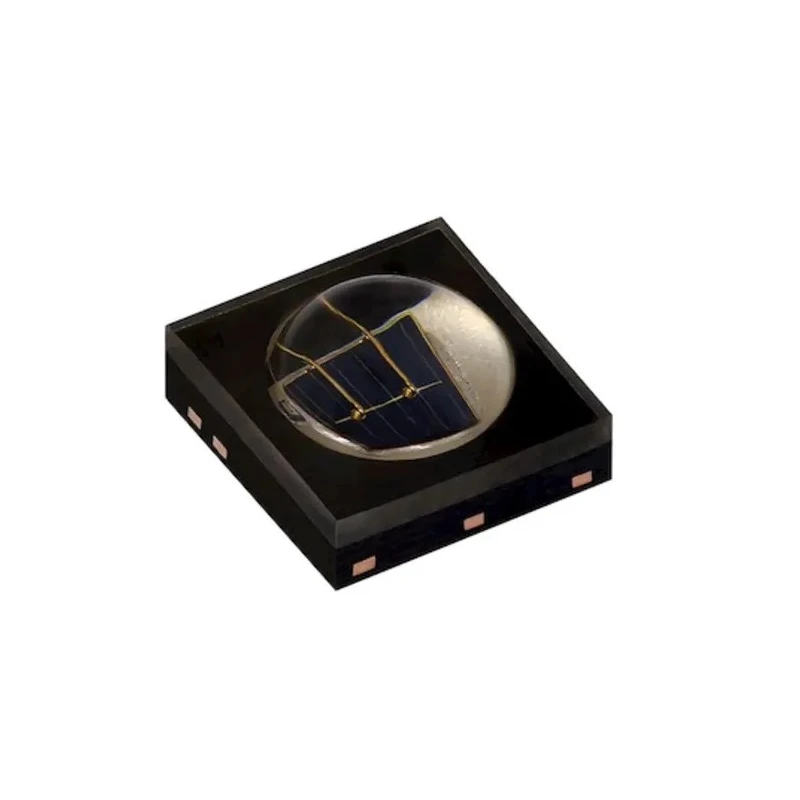

Vishay High Power Infrared Emitting Diode Surface Mount 950 nm Radiant Flux 2100mW VSMA1094600

Free Delivery in India | Lowest Global Shipping Charges

Vishay High Power Infrared Emitting Diode Surface Mount 950 nm Radiant Flux 2100mW VSMA1094600

Name: Vishay High Power Infrared Emitting Diode Surface Mount 950 nm Radiant Flux 2100mW VSMA1094600
Brand: Vishay
SKU: 176237
Price: 2.03 USD
Availability: InStock



Category Infrared LED Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	VSMA1094600
Packaging	SMD
Mount Type	Surface
Series	VSMA1094600
Package Type	Surface Mount
Peak Wavelength	950nm
Radiant Flux	2100mW
Radiant Intensity	670mW/sr

Key Features

Designed for high radiant power applications with a radiant flux of 2100 mW.
Features a double stack emitter chip that supports 1.5 A DC operation and up to 5 A pulsed current.
Compact SMD lens package with dimensions of 3.4 x 3.4 x 1.8 mm for versatile mounting.
Wide viewing angle of ±60 degrees for effective infrared light dispersion.
Low thermal resistance ensures efficient heat dissipation during operation.
Electrostatic discharge protection up to 5 kV as per ANSI/ESDA/JEDEC JS-001 standards.
Lead-free reflow solder compatible and compliant with moisture sensitivity level 3.
Suitable for industrial and electronic component applications requiring reliable infrared emission.

Product Description

Vishay VSMA1094600 is a high power infrared emitting diode designed for surface mount technology with a peak wavelength of 950 nm and radiant flux of 2100 mW. Its innovative double stack emitter chip allows it to handle continuous DC currents of 1.5 A and pulsed currents up to 5.0 A, providing superior radiant power within a compact form factor.

The diode features a durable SMD lens package measuring 3.4 mm by 3.4 mm by 1.8 mm, making it ideal for high-density electronic assemblies. The wide half-intensity angle of ±60 degrees offers broad infrared illumination suitable for various sensing and communication applications.

Thermal characteristics include a low thermal resistance of less than 6 K/W, supporting efficient heat management to enhance operational stability. The component complies with stringent electrostatic discharge standards (up to 5 kV), adhering to ANSI/ESDA/JEDEC JS-001 guidelines, and is qualified for moisture sensitivity level 3, ensuring robustness during soldering processes.

This Vishay infrared LED is lead-free and compatible with industry-standard reflow soldering techniques, facilitating environmentally compliant manufacturing. It is ideal for industrial electronics, electronic component manufacturing, optical communication systems, and sensor technologies where high power and reliability are essential.

Designed for high radiant power applications with a radiant flux of 2100 mW. Double stack emitter chip supporting 1.5 A DC and 5 A pulsed currents. Compact SMD lens package with dimensions of 3.4 x 3.4 x 1.8 mm. Wide viewing angle of ±60 degrees for effective light distribution.

Low thermal resistance below 6 K/W for efficient heat dissipation. Electrostatic discharge protection rated at 5 kV according to ANSI/ESDA/JEDEC JS-001. Lead-free with moisture sensitivity level 3 compliance. Suitable for industrial, electronic, and optical communication applications.
