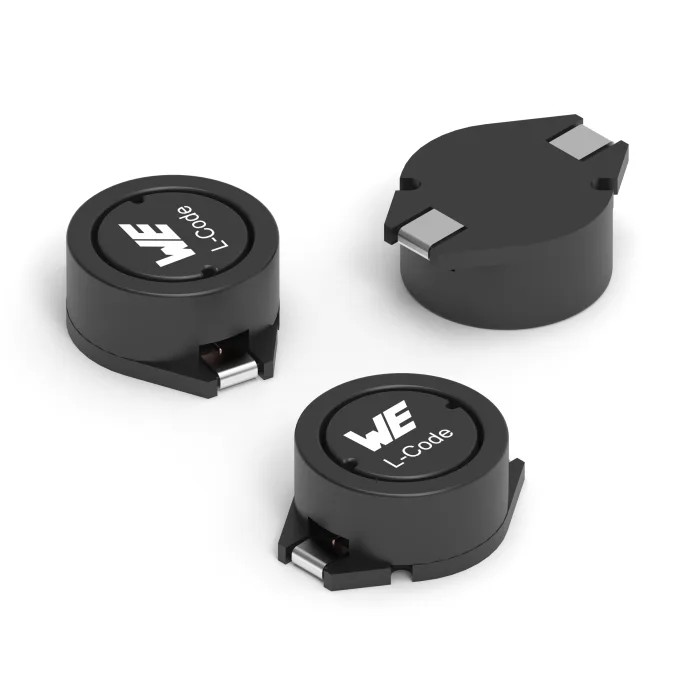

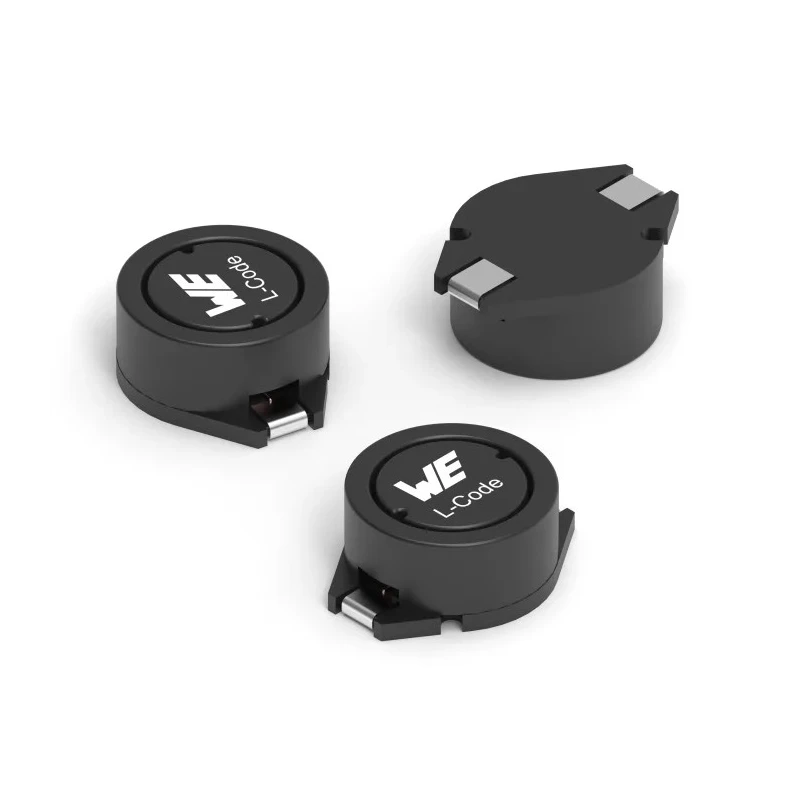

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor with Ferrite Core 68 μH ±15 % 820 mA Idc Q:35 74454168

Wurth Elektronik model 74454168 WE-PD3 is a shielded wirewound surface mount inductor featuring a ferrite core and offering an inductance of 68 μH with a tolerance of ±15 %. This surface mount component is magnetically shielded to reduce electromagnetic interference, making it suitable for compact and sensitive electronic circuits in industrial, automotive, and power supply applications.

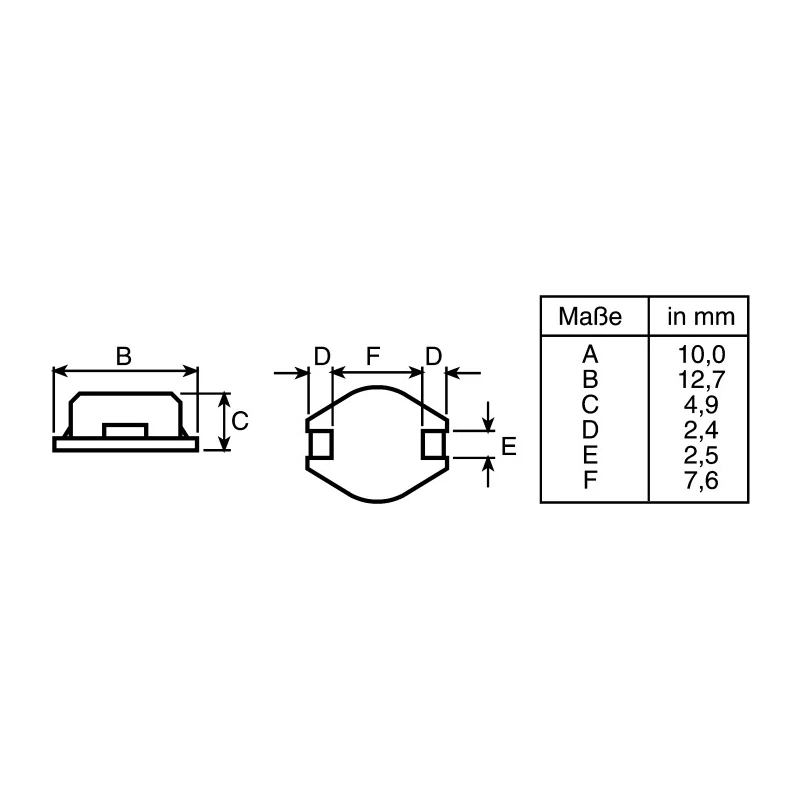

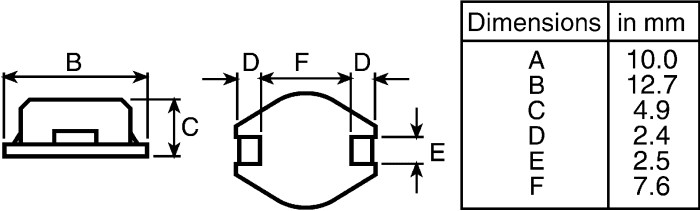

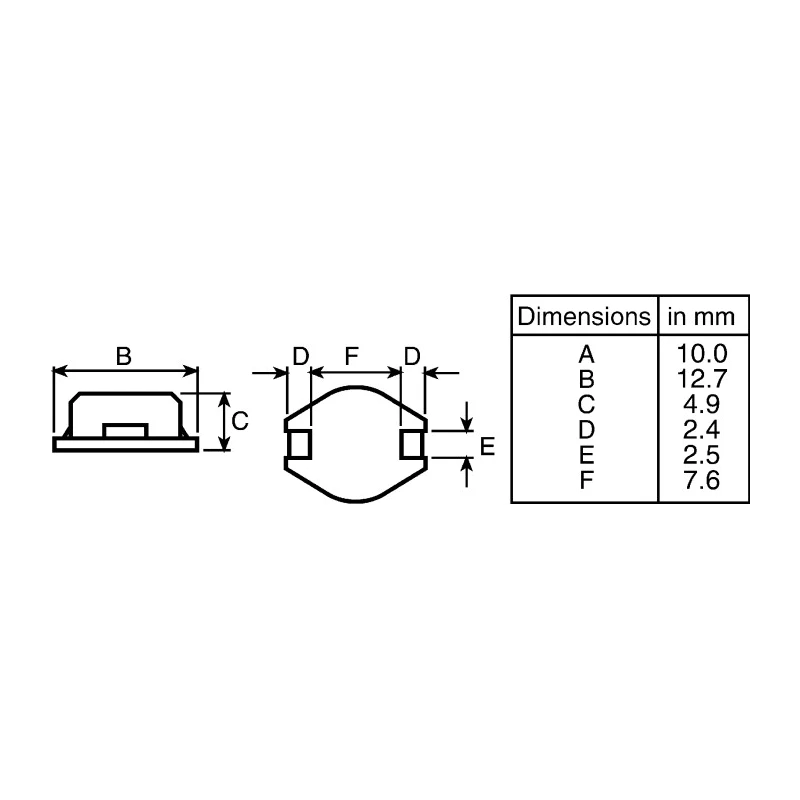

The inductor supports a maximum DC current rating of 820 mA and offers a maximum DC resistance of 340 mΩ. Its physical dimensions of length 12.7 mm, height 4.9 mm, diameter 7.6 mm, and depth 10 mm allow for a low-profile design ideal for densely populated printed circuit boards.

Designed under the WE-PD3 series, it meets the stringent AEC-Q200 automotive standard ensuring durability and reliability under automotive environmental conditions. The operating temperature range is from -25°C to 85°C, enabling usage in varied climatic conditions.

This inductor exhibits a minimum quality factor (Q) of 35 and a maximum self-resonant frequency of 9 MHz, while employing wirewound construction for enhanced electrical performance. It is supplied in tape & reel packaging format to facilitate efficient automated assembly processes.

Compliance with JEDEC JS709B, REACH, and RoHS standards affirms its adherence to environmental and safety regulations for electronics manufacturing. Typical applications include power management, filtering, suppression chokes for frequencies up to 1 MHz, and general industrial electronics assemblies.

Inductance value of 68 μH with ±15 % tolerance ensures circuit stability. Magnetically shielded design reduces noise and electromagnetic interference. Compact physical size allowing space-saving PCB layouts. Automotive grade AEC-Q200 certification for reliable performance.

Wide operating temperature range from -25°C to 85°C. Wirewound construction provides high quality factor and inductance stability. Suitable for frequencies up to 10 MHz in suppression choke applications. RoHS, REACH, and JEDEC compliant ensuring regulatory adherence.

Tape & reel packaging supports automated surface mount placement. Maximum DC current rating of 820 mA for power handling. Explore our comprehensive range of Surface Mount Inductors and electronic components for industrial and automotive applications at EnvMart.
