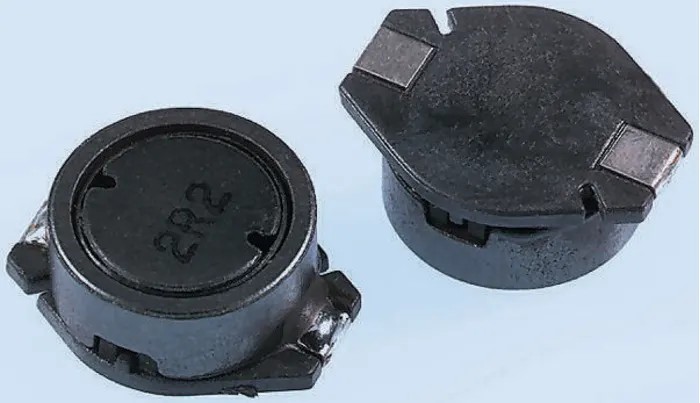

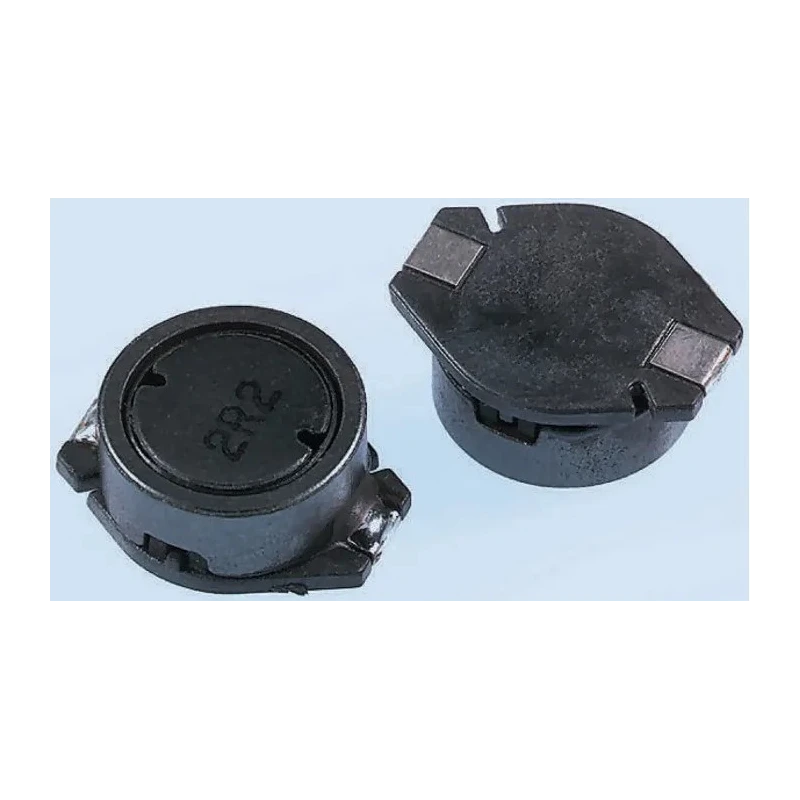

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22μH ±15% 1.4A IDC Q42 74454122
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 4.9mm |
| Length | 12.7mm |
| Model | 74454122 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD3 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS, JEDEC JS709B, REACH |
| Maximum DC Current | 1.4A |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±15 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 18MHz |
| Minimum Quality Factor | 42 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- High inductance value of 22 microhenries with ±15% tolerance.
- Maximum DC current rating of 1.4 amperes ensures performance under load.
- Magnetically shielded design reduces electromagnetic interference.
- Constructed with a ferrite core for effective magnetic properties.
- Compact surface mount package suitable for automated PCB assembly.
- Operating temperature range from -25°C to 85°C for reliability.
- Low DC resistance of 100 milliohms enhances efficiency.
- Compliant with automotive standard AEC-Q200 and industry standards RoHS, JEDEC JS709B, and REACH.
Product Description
Wurth Elektronik 74454122 WE-PD3 series is a magnetically shielded wirewound Surface Mount Inductor with a ferrite core, possessing an inductance of 22 μH and a tolerance of ±15%. This inductor supports a maximum DC current of 1.4 A and offers a quality factor (Q) of 42, making it suitable for suppression and filtering applications up to 1 MHz operating frequency and up to 10 MHz in some designs.

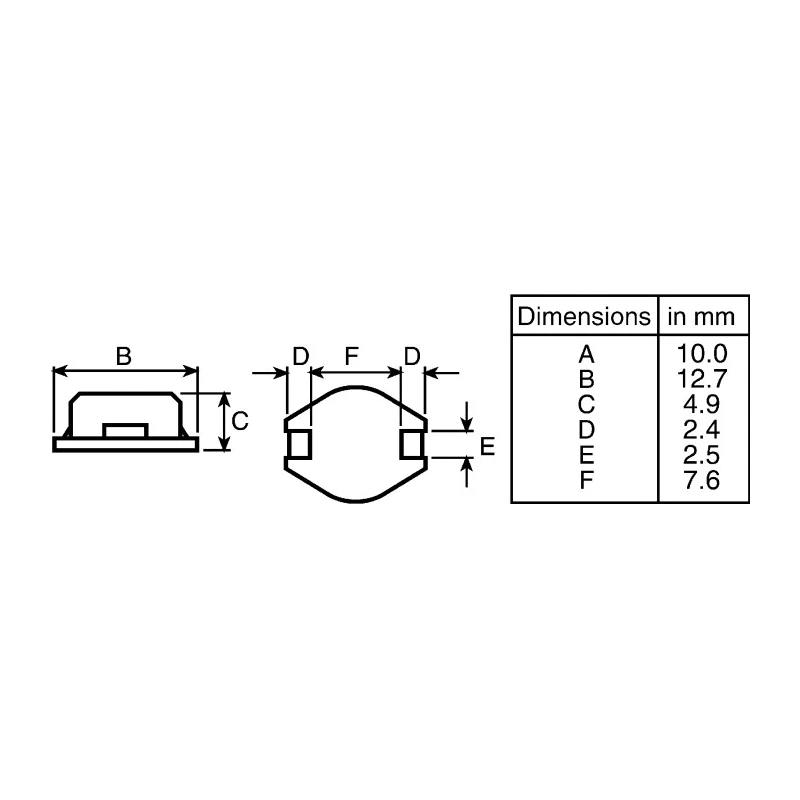

Its compact dimensions of 12.7 mm length, 7.6 mm diameter, 4.9 mm height, and 10 mm depth enable integration into densely packed PCB layouts with surface mount technology. The inductor’s low DC resistance of 100 mΩ minimizes power loss and improves overall circuit efficiency.
The WE-PD3 series incorporates a magnetically shielded design and uses a ferrite core to reduce electromagnetic interference, ensuring stable performance in sensitive electronic circuits. The component meets automotive standard AEC-Q200 and is RoHS, JEDEC JS709B, and REACH compliant, confirming its quality and environmental safety.
Operating reliably in temperatures from -25°C to 85°C, the inductor is moulded for durability and designed for surface mount termination applications typically used in industrial electronics, automotive modules, power supply filtering, and signal conditioning circuits.
High inductance with ±15% tolerance for precise filtering. Robust 1.4 A DC current capacity for demanding circuits. Magnetically shielded to minimize electromagnetic interference. Compact surface mount form factor suitable for automated assembly.
Compliance with key industry and automotive quality standards. Wide operating temperature range for industrial applications. Constructed with a ferrite core and wirewound configuration for stable performance. Low DC resistance reduces energy loss and heat generation.
This Wurth Elektronik WE-PD3 series inductor is ideal for electronic manufacturing, automotive electronics, industrial control systems, and power supply modules requiring reliable and efficient inductors.
Find more specialized components and electronic solutions in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This inductor has an inductance value of 22 μH with a tolerance of ±15%.
The maximum DC current rating for this model is 1.4 A.
It operates reliably within a temperature range of -25°C to 85°C.
The inductor is constructed with a ferrite core, which provides effective magnetic properties.
The dimensions of the inductor are 12.7 mm in length, 7.6 mm in diameter, 4.9 mm in height, and 10 mm in depth.
The DC resistance of this model is 100 milliohms, which enhances efficiency.
It complies with automotive standard AEC-Q200 and is also RoHS, JEDEC JS709B, and REACH compliant.
The inductor is packaged in Tape & Reel format, suitable for automated assembly.
The minimum quality factor (Q) for this model is 42.
The maximum self-resonant frequency is 18 MHz, making it suitable for high-frequency applications.
This inductor features a surface mount termination style, ideal for compact PCB layouts.
It is suitable for applications in industrial electronics, automotive modules, power supply filtering, and signal conditioning circuits.
