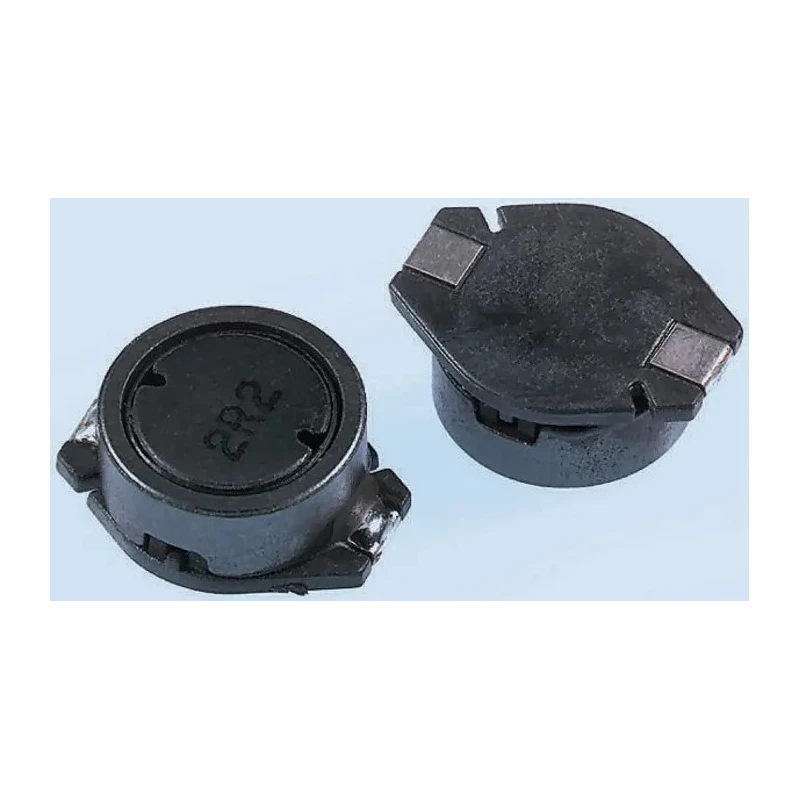

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22μH ±15% 1.4A IDC Q:42 74454122

Wurth Elektronik 74454122 WE-PD3 series shielded wirewound surface mount inductor with ferrite core delivers a nominal inductance of 22μH ±15% tolerance and supports a maximum DC current of 1.4A. This magnetically shielded inductor features a wirewound construction designed for efficient suppression of electromagnetic interference in electronic circuits.

The inductor is engineered to operate over a temperature range of -25°C to 85°C, making it suitable for use in industrial and automotive electronic applications. It complies with automotive standard AEC-Q200 and RoHS, JEDEC JS709B, and REACH standards.

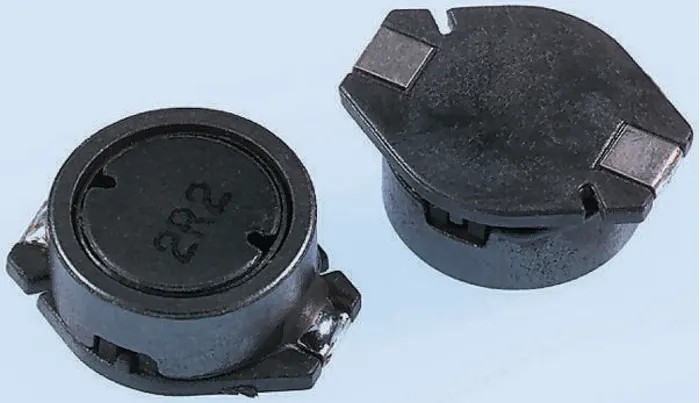

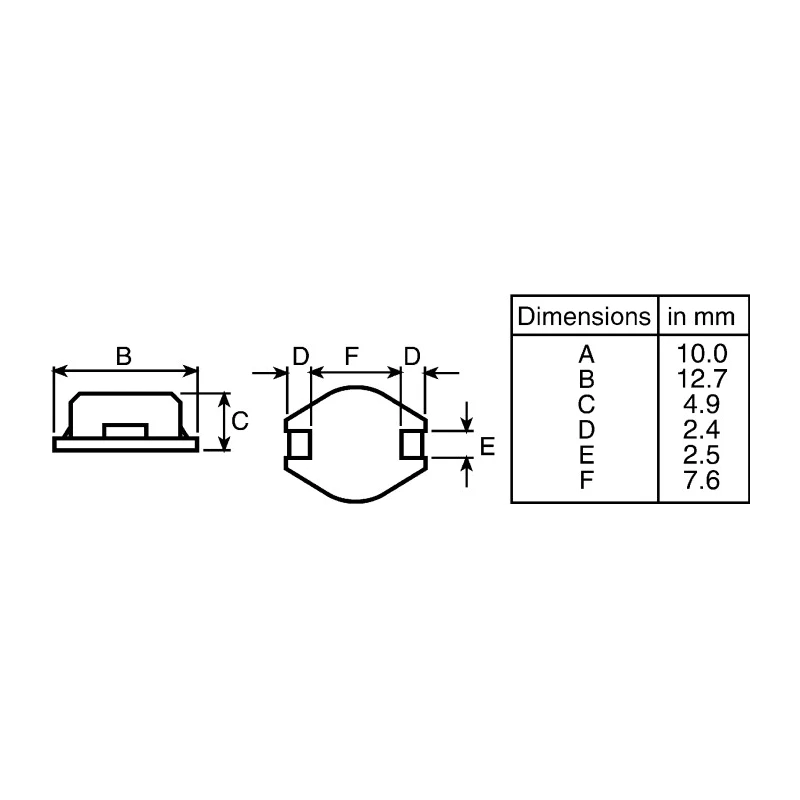

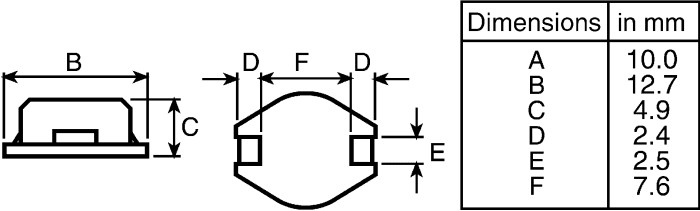

Physical attributes include a length of 12.7mm, height of 4.9mm, diameter of 7.6mm, and a depth of 10mm. The maximum DC resistance is 100mΩ, which helps reduce power dissipation in circuits. Additionally, the unit has a maximum self-resonant frequency of 18MHz and a minimum quality factor (Q) of 42, ensuring stable performance at high frequencies.

The product is moulded and terminates using a surface mount style, packaged in tape and reel form to facilitate automated assembly processes. The WE-PD3 series is ideal for industrial, automotive, and electronic manufacturing sectors requiring high-quality inductors with small form factors and efficient shielding.

This Wurth Elektronik inductor is made in China and supports applications involving power supplies, filtering, energy storage, and noise suppression in electronic devices. The product is part of the broader category of surface mount inductors, offering designers a reliable and compact solution for inductance in PCB layouts.

Discover more electrical components and Surface Mount Inductors in EnvMart’s extensive catalog for industrial and electronic manufacturing needs. The inductor features a ferrite core construction for magnetic efficiency.

Magnetically shielded design minimizes electromagnetic interference. Operates reliably from -25°C to 85°C temperature range. Compact dimensions: length 12.7mm, height 4.9mm, diameter 7.6mm. Suitable for automotive applications meeting AEC-Q200 standards.

Maximum DC resistance is 100mΩ ensuring minimal power loss. Maximum self-resonant frequency up to 18MHz for high-frequency performance. Termination style is surface mount with tape and reel packaging.
