Wurth Elektronik WE-GF 1812 Unshielded Wirewound Surface Mount Inductor with Ferrite Core, 1 mH ±10%, 30 mA, Q:20 74476630
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | 74476630 |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | WE-GF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 1812 |
| Maximum DC Current | 30mA |
| Pin Count | 2 |
| Maximum DC Resistance | 40Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
Key Features
- Claims low DC resistance with a maximum of 40Ω for efficient performance.

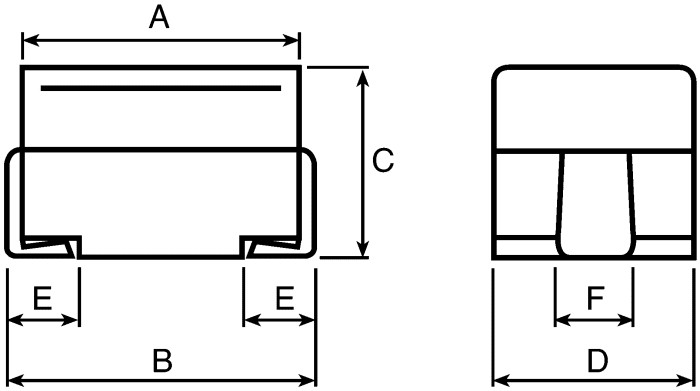

- Compact 1812 package size, measuring 4.5 mm length and 3.2 mm height and depth.
- Designed for surface mount termination style suitable for automated assembly.
- Operates reliably within a temperature range of -40°C to 105°C.
- Provides a minimum quality factor of 20 and maximum self-resonant frequency of 3 MHz.
- Constructed with a ferrite core for high frequency choking applications.
- Complies with RoHS and REACH environmental standards.
- 2-pin configuration tailored for HF amplifiers, LC filters, oscillators, and transponders.
Product Description
Wurth Elektronik 74476630 is an unshielded wirewound surface mount inductor, part of the WE-GF series. It features a ferrite core and delivers an inductance of 1 mH with a tolerance of ±10%, designed for a maximum DC current of 30 mA and a Q factor of 20. Sized in the 1812 package with dimensions of 4.5 mm length and 3.2 mm height and depth, this inductor provides reliable surface mount termination and is suitable for high frequency applications.
This device is ideal for use in HF amplifiers, oscillators, transponders, LC filter circuits, and adapter networks. Its operating temperature range from -40°C to 105°C ensures durability in various environments. The low resistance of up to 40Ω and maximum self-resonant frequency of 3 MHz make it effective for signal integrity and noise suppression applications.
Constructed with a ferrite core, the inductor offers excellent magnetic properties needed for high frequency choke applications. It complies with RoHS and REACH standards ensuring it meets today's environmental regulations for passive components.
The two-pin surface mount configuration supports automated reel tape packaging suitable for efficient assembly line integration. Low maximum DC resistance for efficient current flow. Compact 1812 package dimensions for space-constrained PCBs.
Wide operating temperature range ensuring reliable performance. High quality factor supporting signal quality in RF circuits. RoHS and REACH compliant ensuring environmental safety. Unshielded wirewound construction for HF circuit applications.
Maximum self-resonant frequency of 3 MHz for stable operation. Packaging on tape and reel for assembly efficiency.
This Wurth Elektronik Surface Mount Inductor is suited for industrial electronics, telecommunications, and hobbyist HF circuit designs. Browse the complete Wurth Elektronik catalog at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 mH with a tolerance of ±10%.
The maximum DC current for this unit is 30 mA.
The 1812 package measures 4.5 mm in length and 3.2 mm in both height and depth.
It operates reliably within a temperature range of -40°C to 105°C.
The maximum self-resonant frequency is 3 MHz.
This inductor provides a minimum quality factor of 20.
It is constructed with a ferrite core, which is suitable for high frequency choking applications.
The termination style is surface mount, designed for automated assembly.
It complies with RoHS and REACH environmental standards.
It is packaged on tape and reel for efficient assembly line integration.
This model is suitable for use in HF amplifiers, oscillators, transponders, and LC filter circuits.
The maximum DC resistance is 40Ω, which supports efficient performance.
