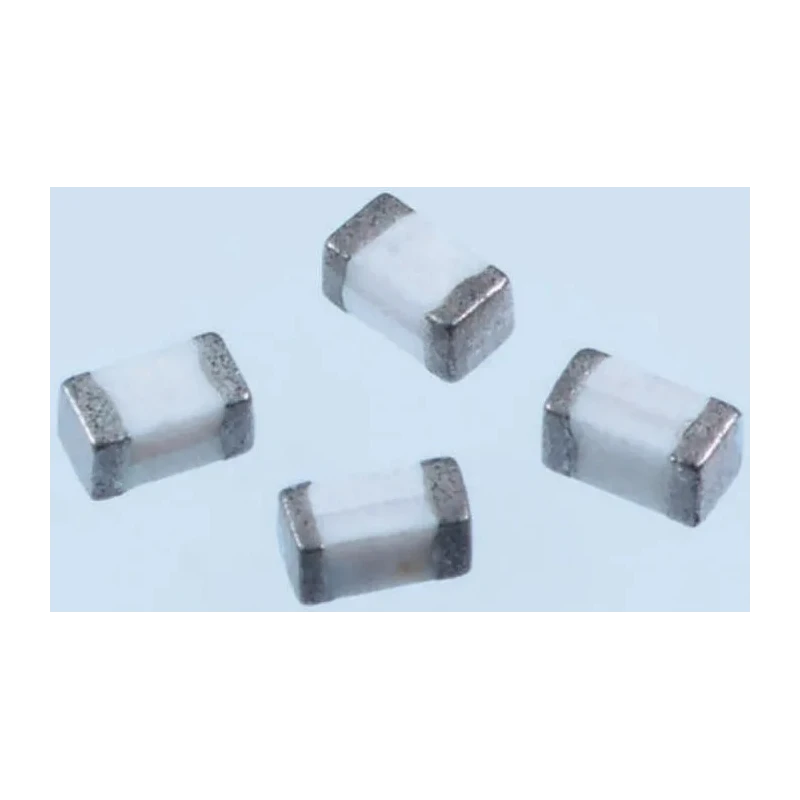

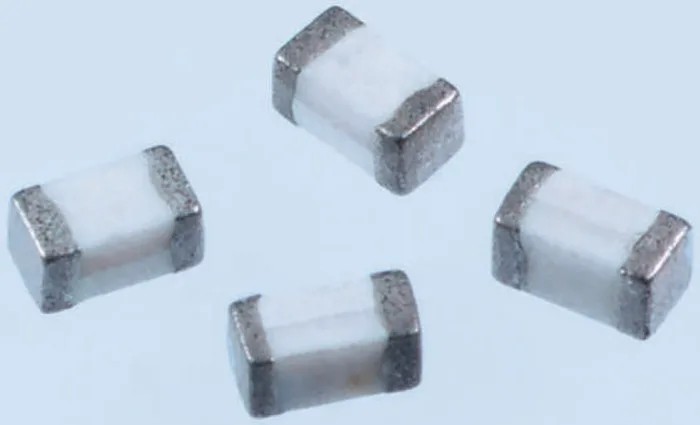

Wurth Elektronik WE-MK 0603 Unshielded Multilayer Ceramic Surface Mount Inductor 100 nH ±5 % 600 mA 2Ω 750 MHz 744786110
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Depth | 0.8mm |
| Packaging | Tape |
| Series | WE-MK |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 100nH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 0603 |
| Maximum DC Current | 600mA |
| Maximum DC Resistance | 2Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 750MHz |
| Minimum Quality Factor | 12 |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 0603 package size suitable for dense PCB layouts.
- Maximum DC current rating of 600 mA ensures reliable performance.
- Ceramic core with multilayer construction optimizes high frequency response.
- Stable inductance over temperature range from -40°C to 120°C.
- Maximum DC resistance of 2 ohms reduces power loss.
- Suitable for high frequency circuits up to 750 MHz self resonant frequency.
- AEC-Q200 automotive standard compliant for automotive applications.
- Available in tape packaging for efficient automated assembly.
Product Description
Wurth Elektronik 744786110 WE-MK series 0603 unshielded multilayer ceramic surface mount inductor features a ceramic core and multilayer construction delivering precise 100 nH inductance with ±5 % tolerance. This surface mount inductor supports high-frequency circuits such as tuners, transponders, HF amplifiers, pagers, oscillators, laptops, PCMCIA cards, Bluetooth, and wireless LAN applications.

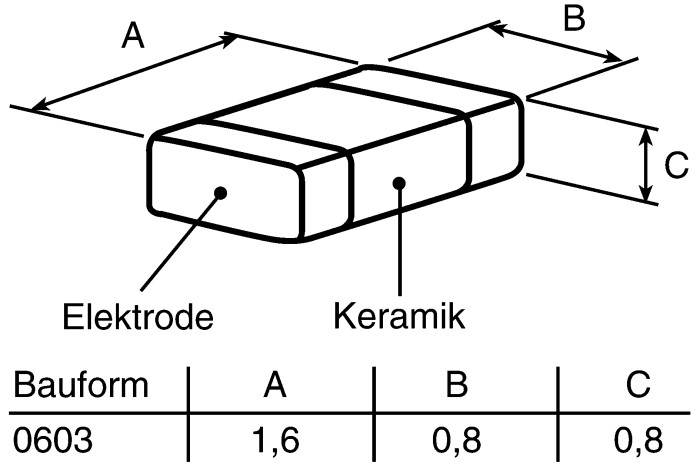

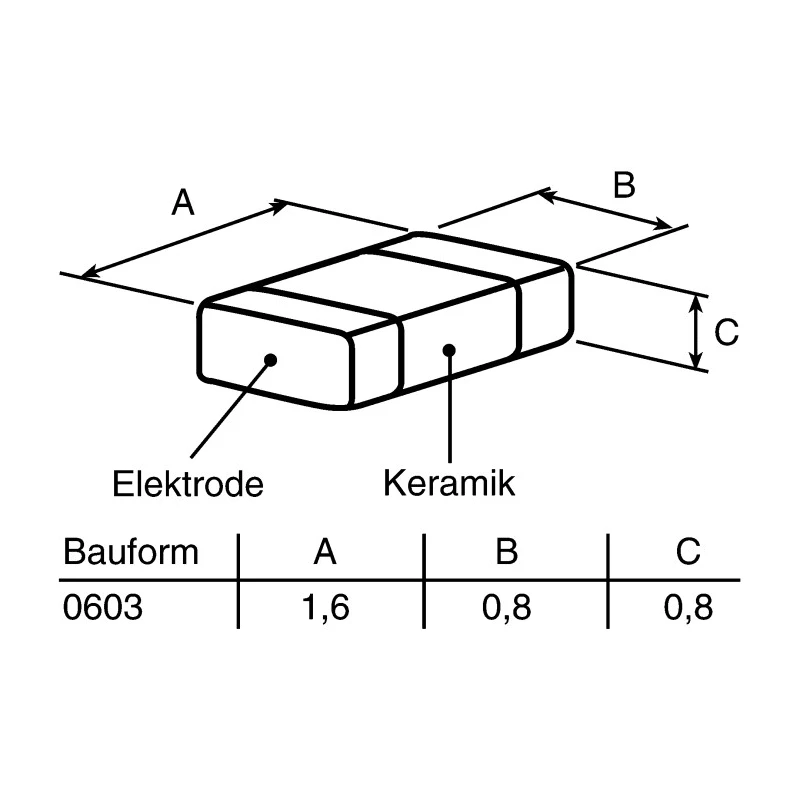

Designed for reliable operation, this inductor has a maximum DC current rating of 600 mA and maximum DC resistance of 2 ohms, ensuring efficient energy transfer. With a compact 0603 footprint measuring 1.6 mm length by 0.8 mm height and depth, it accommodates space-constrained PCB designs.
The component operates across a temperature range of -40°C to 120°C, conforming to AEC-Q200 automotive standards, making it suitable for automotive uses. Its high self-resonant frequency of 750 MHz and a quality factor minimum of 12 enable stable performance in high-frequency circuitry. The windings are printed on a ceramic substrate, and the device supports reflow or wave soldering processes.
Compact 0603 size with 1.6 mm length, 0.8 mm height, and 0.8 mm depth. Inductance of 100 nH ±5 % tolerance for precise filtering. Maximum DC current of 600 mA for robust operation. Maximum DC resistance of 2 ohms to minimize losses.
Operating temperature range from -40°C to 120°C with AEC-Q200 compliance. Ceramic core and multilayer construction for high-frequency stability. High self-resonant frequency of 750 MHz and quality factor minimum of 12. Surface mount termination style with tape packaging for automated assembly.
This inductor is ideal for industrial electronics, telecommunications, automotive electronics, and consumer wireless devices. It combines compact size with reliable performance in challenging operating conditions. Perfect for use in manufacturing, R&D labs, telecommunications equipment, automotive systems, and other electronics manufacturing environments.
Explore more surface mount Inductors and Wurth Elektronik products on EnvMart for quality and performance in electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100 nH with a tolerance of ±5%.
It has a maximum DC current rating of 600 mA, ensuring reliable performance in various applications.
The maximum self-resonant frequency is 750 MHz, making it suitable for high-frequency circuits.
This inductor has a compact 0603 package size, measuring 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
It operates within a temperature range of -40°C to 120°C, accommodating a variety of environmental conditions.
The inductor features a ceramic core, which contributes to its high-frequency stability.
The maximum DC resistance is 2 ohms, which helps to minimize power loss during operation.
Yes, it is compliant with the AEC-Q200 automotive standard, making it suitable for automotive applications.
It uses a surface mount termination style, facilitating easy integration into PCB designs.
The inductor is available in tape packaging, which is efficient for automated assembly processes.
This model is suitable for high-frequency circuits such as tuners, transponders, and wireless LAN applications.
It meets RoHS and REACH standards, ensuring compliance with environmental regulations.
