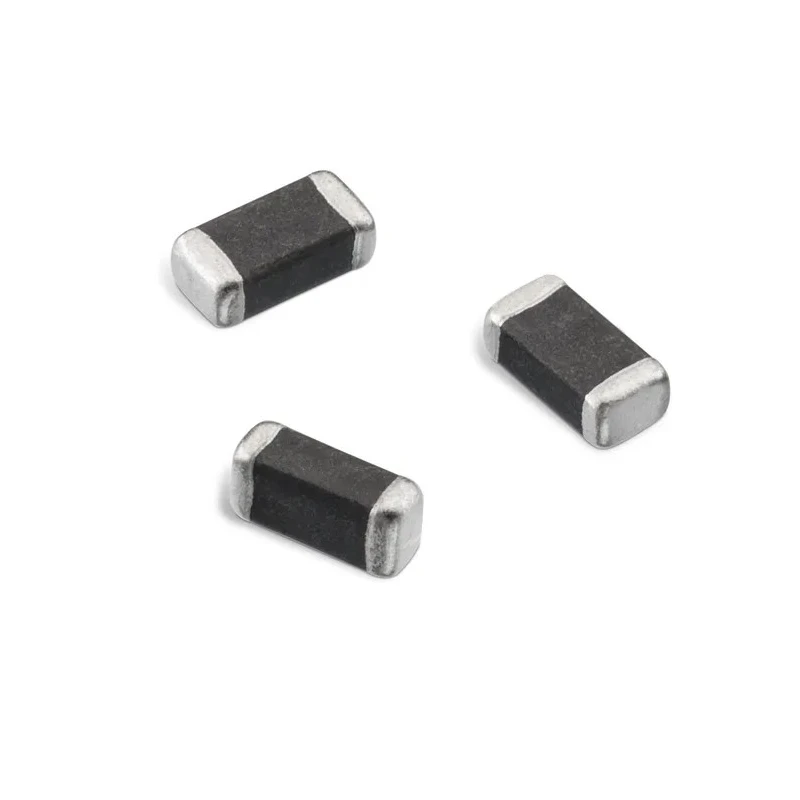

Wurth Elektronik WE-CBF 0603 Unshielded Multilayer Surface Mount Inductor with Ferrite Core, 200mA, ±25% Tolerance 74279265

Wurth Elektronik 74279265 is an unshielded multilayer surface mount inductor featuring a ferrite core, designed in a compact 0603 (1.6mm x 0.8mm x 0.8mm) package. It delivers efficient power supply decoupling and electromagnetic interference (EMC) suppression in high-frequency applications.

This component supports a maximum DC current of 200mA and operates across a wide temperature range from -55°C up to 125°C, conforming to the automotive AEC-Q200 standard for reliability in demanding environments.

The multilayer construction ensures low DC resistance of 450mΩ, reducing losses and improving circuit efficiency. The ±25% inductance tolerance provides flexibility in design, while the ferrite core material enhances absorption of unwanted interference signals without requiring an earth connection.

The inductor is surface mount terminated and moulded for robust mechanical and thermal stability, compatible with reflow and wave soldering processes. Its non-shielded design offers effective broadband EMC protection directly on printed circuit boards, making it suitable for applications in power supplies, oscillators, data lines, and filter circuits.

Suitable for power supply decoupling and EMC interference suppression. Designed with multilayer construction for low DC resistance and minimal signal loss. Maximum DC current rating of 200 mA with ±25% inductance tolerance.

Operating temperature range from -55°C to 125°C meeting AEC-Q200 automotive standards. Termination suitable for surface mount technology with excellent soldering properties. Non-shielded design offering effective high-frequency interference attenuation.

Constructed with ferrite core material for enhanced magnetic absorption. Packaging in tape and reel format facilitates automated assembly.

Originally manufactured in Taiwan, Province of China, this component combines high packing density and reliable operation for industrial, automotive, telecommunications, and electronic manufacturing uses. Its small form factor supports miniaturization trends in modern electronic devices. For comprehensive range, refer to Wurth Elektronik’s WE-CBF series in the Surface Mount Inductor category.
