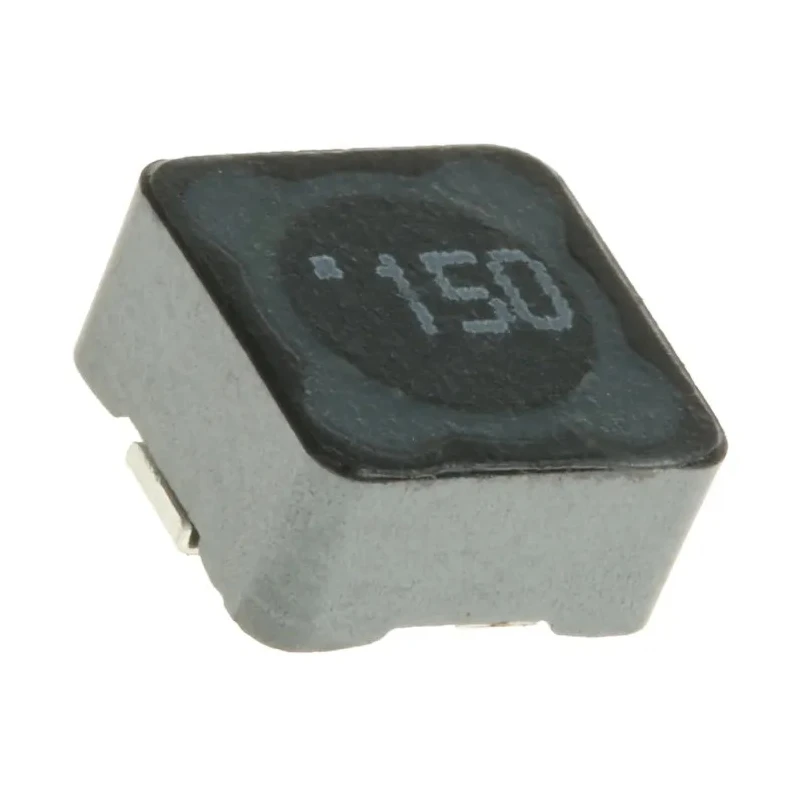

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 15μH ±20 % 1.6 A Idc 7345 WE-PD 744777115
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 7.3mm |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | EU&2015, RoHS 2011, REACH or declared EC1907, Halogen Free JEDEC 709B, 863, 2006 |
| Package/Case | 7345 |
| Maximum DC Current | 1.6A |
| Maximum DC Resistance | 810mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 19.5MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded construction minimizes leakage field.
- High current load capacity of 1.6 amperes.
- Compact 7.3 mm length and 4.5 mm height dimensions.
- Operating temperature range from -40°C to +125°C.
- Complies with automotive standard AEC-Q200 for quality assurance.
- Core material comprised of ferrite for optimal performance.
- Surface mount termination style for efficient PCB integration.
- Maximum self-resonant frequency of 19.5 MHz ensures suitability for high-frequency applications.
Product Description
Wurth Elektronik 744777115 is a shielded wirewound surface mount inductor featuring a ferrite core and offering an inductance of 15 μH ±20 % with a maximum DC current rating of 1.6 A. Packaged in a 7345 size tape & reel, this inductor is designed for compact PCB assemblies requiring minimal leakage fields.
The device operates reliably across a wide temperature range from -40°C to +125°C, making it suitable for automotive and industrial applications conforming to the AEC-Q200 standard. The ferrite core and magnetically shielded wirewound construction enhance energy storage and current capacity.
This inductor's surface mount termination enables easy automated placement during assembly, with a maximum DC resistance of 810 mΩ and a maximum self-resonant frequency of 19.5 MHz ensuring efficiency in switching power regulators and DC-DC converters.
Typical applications include switching regulators with high efficiency, integrated DC-DC converters, and graphics card power circuits. The design supports high vibration and shock environments due to its robust one-piece plastic base construction.
Environmental compliances such as RoHS 2011, REACH, and halogen free certifications ensure this component meets current regulatory requirements. Delivered in tape & reel packaging, it is optimized for high volume production.
Magnetically shielded wirewound inductor construction reduces electromagnetic interference. High current rating suitable for power applications. Broad operational temperature range from -40°C to 125°C. Compact dimensions with 7.3 mm length and 4.5 mm height.
Automotive grade with AEC-Q200 qualification. Compliant with multiple environmental standards including RoHS and REACH. Surface mount termination style for modern electronics manufacturing. Maximum self-resonant frequency of 19.5 MHz for efficient switching.
Explore more Surface Mount Inductors and electronic components at EnvMart for industrial, automotive, and consumer electronics production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 15 μH with a tolerance of ±20%.
The maximum DC current rating is 1.6 A, making it suitable for high current applications.
It has a compact size with a length and depth of 7.3 mm and a height of 4.5 mm.
The operating temperature range is from -40°C to +125°C, allowing for use in various environments.
The maximum self-resonant frequency is 19.5 MHz, which is suitable for high-frequency applications.
It features a surface mount termination style, facilitating efficient integration into PCB assemblies.
It complies with automotive standard AEC-Q200 and environmental standards such as RoHS 2011 and REACH.
The core material is ferrite, which enhances performance and energy storage capabilities.
It is packaged in tape & reel format, optimized for high volume production and automated assembly.
The maximum DC resistance is 810 mΩ, contributing to its efficiency in power applications.
Typical applications include switching regulators, integrated DC-DC converters, and graphics card power circuits.
This inductor features a wirewound construction, which helps minimize electromagnetic interference.
