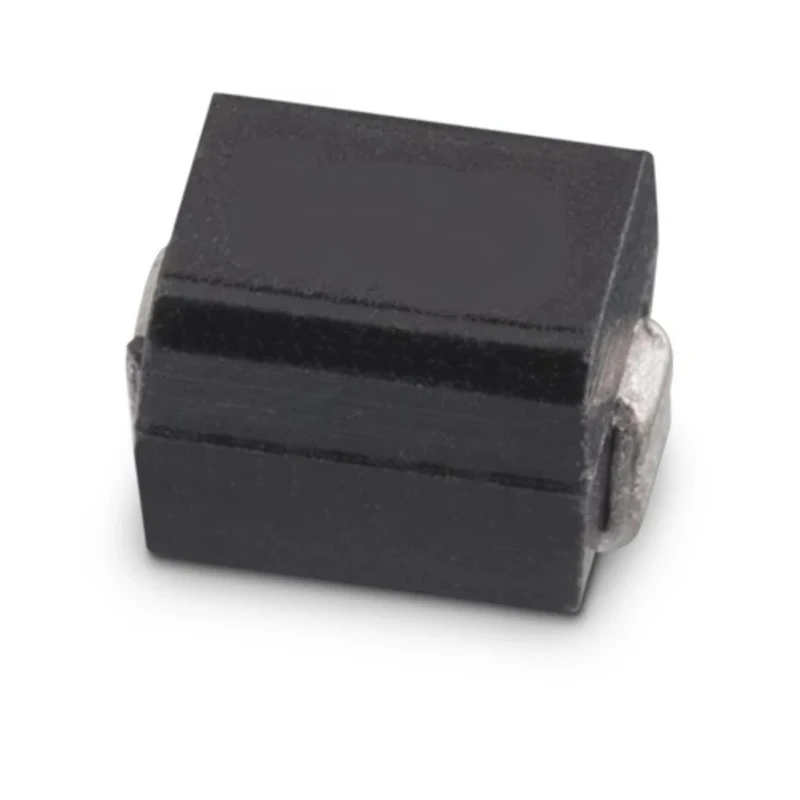

Wurth Elektronik WE-GF 1812 Unshielded Wirewound Surface Mount Inductor 100μH ±10% 110mA 8Ω 8MHz 74476620
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | 74476620 |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | WE-GF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 1812 |
| Maximum DC Current | 110mA |
| Pin Count | 2 |
| Maximum DC Resistance | 8Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 8MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core to ensure low losses and stability.
- Compact 1812 package measures 4.5mm in length and 3.2mm in height and depth.
- Supports a maximum DC current of 110mA and a maximum DC resistance of 8Ω.
- Operates reliably across a temperature range from -40°C to 105°C.
- Features a maximum self-resonant frequency of 8MHz with a minimum quality factor of 40.
- Surface mount termination style facilitates easy PCB assembly via tape and reel packaging.
- Compliant with RoHS and REACH standards, ensuring environmentally safe manufacturing.
Product Description
Wurth Elektronik 74476620 WE-GF series 1812 surface mount inductors are precision wirewound components designed for high-frequency circuits such as HF amplifiers, oscillators, transponders, LC filters, and adapter networks. These inductors utilize a ferrite core for enhanced magnetic performance, supporting up to 110mA DC current with a low DC resistance of 8Ω to minimize power loss.
The compact 1812 package size offers dimensions of 4.5mm length and 3.2mm height and depth, ideal for space-constrained PCB layouts. Operating temperature ranges from -40°C to 105°C ensure reliability under varied environmental conditions. The device exhibits a maximum self-resonant frequency of 8MHz and a quality factor above 40, suitable for demanding RF and high-frequency applications.
Available in tape and reel packaging, these inductors enable efficient automated placement during PCB assembly. The termination style is surface mount compatible, simplifying integration into modern electronic manufacturing processes.
Manufactured under strict environmental compliance, the Wurth Elektronik WE-GF inductors conform to RoHS and REACH standards, supporting sustainable electronics design. Ferrite core for low-loss magnetic performance. Compact 1812 package dimensions optimized for PCB layouts.
Max DC current 110mA ensures suitability for low-power circuits. Operating temperature range from -40°C to 105°C guarantees durability. High quality factor and self-resonant frequency for RF applications. Tape and reel packaging supports automated manufacturing.
Ideal for industrial, telecommunications, automotive electronics, and consumer electronic applications, the WE-GF inductors combine performance and reliability for demanding electronic designs. Explore more Surface Mount Inductors and electronic components from Wurth Elektronik at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100μH with a tolerance of ±10%.
It supports a maximum DC current of 110mA.
The dimensions of the 1812 package are 4.5mm in length and 3.2mm in height and depth.
The maximum self-resonant frequency is 8MHz.
The minimum quality factor is 40.
It operates reliably across a temperature range from -40°C to 105°C.
The inductor is constructed with a ferrite core, which ensures low losses and stability.
It is packaged in tape and reel format, facilitating easy automated PCB assembly.
The inductor is compliant with RoHS and REACH standards, ensuring environmentally safe manufacturing.
It features a surface mount termination style, making it suitable for modern electronic manufacturing processes.
The maximum DC resistance is 8Ω, which helps minimize power loss.
It is suitable for high-frequency circuits such as HF amplifiers, oscillators, transponders, and LC filters.
