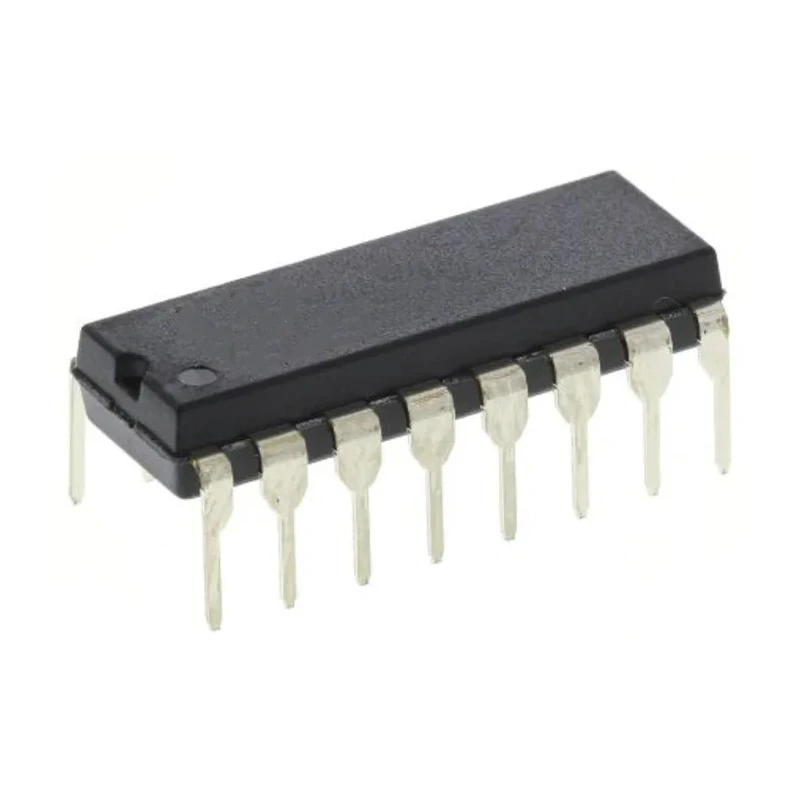

Renesas Electronics Line Transceiver, 3 State, Inverting, 16-Pin PDIP, CMOS Logic Family, Single 5V Supply HIN202ECPZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 5.33mm |
| Length | 19.68mm |
| Model | HIN202ECPZ |
| Width | 8.25mm |
| Mount Type | Through Hole |
| Output type | 3 State |
| Series | HIN202 |
| Input Type | CMOS, TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| IC Type | Line Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Maximum Propagation Delay Time @ CL | 10μs |
| Supply Current | 15mA |
Key Features
- Operates from a single +5V power supply for ease of integration.
- Features onboard voltage doubler and inverter for RS-232 signal levels.
- CMOS logic family with TTL compatible input enables versatile interfacing.
- Low power consumption with a supply current of 15mA enhances efficiency.
- Designed for through-hole mounting in a compact PDIP 16-pin package.
- Supports operating temperature range from 0°C to 70°C for reliable performance.
- Propagation delay time is a maximum of 10 microseconds at capacitive load.
- Inverting polarity ensures correct signal translations for serial communication.
Product Description
Renesas Electronics HIN202ECPZ is a line transceiver IC designed for serial communication, featuring a 3 state, inverting function housed in a 16-pin PDIP package. It operates on a single 5V power supply, eliminating the need for dual voltage rails and simplifying power requirements. This transceiver complies with EIA RS-232E and V.28 standards, making it ideal for applications where ±12V power supplies are unavailable.
The device integrates onboard voltage doubler and inverter circuits, ensuring proper RS-232 voltage levels from a single supply. Utilizing CMOS logic family and compatible TTL inputs, it provides versatile interfacing options with other digital components. Low supply current of 15mA supports energy-efficient designs.
With a maximum propagation delay of 10μs at the specified capacitive load, the HIN202ECPZ ensures timely data transmission and reception in communication systems. Its through-hole PDIP packaging of 16 pins allows straightforward PCB mounting and handling.
Operating reliably within a temperature range from 0°C to 70°C, this component suits industrial and commercial electronic communication equipment. The compact dimensions (19.68mm length, 8.25mm width, 5.33mm height) facilitate integration into standard circuit boards.
Single +5V power supply operation simplifies system design. Integrated voltage doubler and inverter circuits for RS-232 signal compliance. CMOS logic family with TTL compatible inputs ensures broad compatibility. Low supply current (15mA) reduces power consumption.
16-pin PDIP package facilitates easy through-hole mounting. Operating temperature range 0°C to 70°C enables use in varied environments. Maximum propagation delay time of 10μs guarantees reliable timing. Compact physical dimensions ease board layout and space constraints.
Inverting polarity supports accurate serial signal conversion. Conforms to EIA RS-232E and V.28 standards without ±12V supply requirement.
This line transceiver is suitable for industrial, communication, computer interface, and embedded systems requiring reliable RS-232 communication. Browse more Line Interface ICs and related semiconductor products at EnvMart for industrial and electronic project solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5V.
It operates within a temperature range of 0°C to 70°C.
This line transceiver is housed in a 16-pin PDIP package, designed for through-hole mounting.
The supply current for this unit is 15mA, which supports energy-efficient designs.
It utilizes a CMOS logic family with TTL compatible inputs, enabling versatile interfacing options.
The maximum propagation delay time is 10 microseconds at the specified capacitive load.
The output type of this line transceiver is 3 State, allowing for flexible signal management.
This model is suitable for industrial, communication, computer interface, and embedded systems requiring reliable RS-232 communication.
The dimensions are 19.68mm in length, 8.25mm in width, and 5.33mm in height.
It integrates onboard voltage doubler and inverter circuits to achieve proper RS-232 voltage levels from a single supply.
The polarity of this unit is inverting, which supports accurate serial signal conversion.
This line transceiver complies with EIA RS-232E and V.28 standards, making it suitable for applications without ±12V power supplies.
