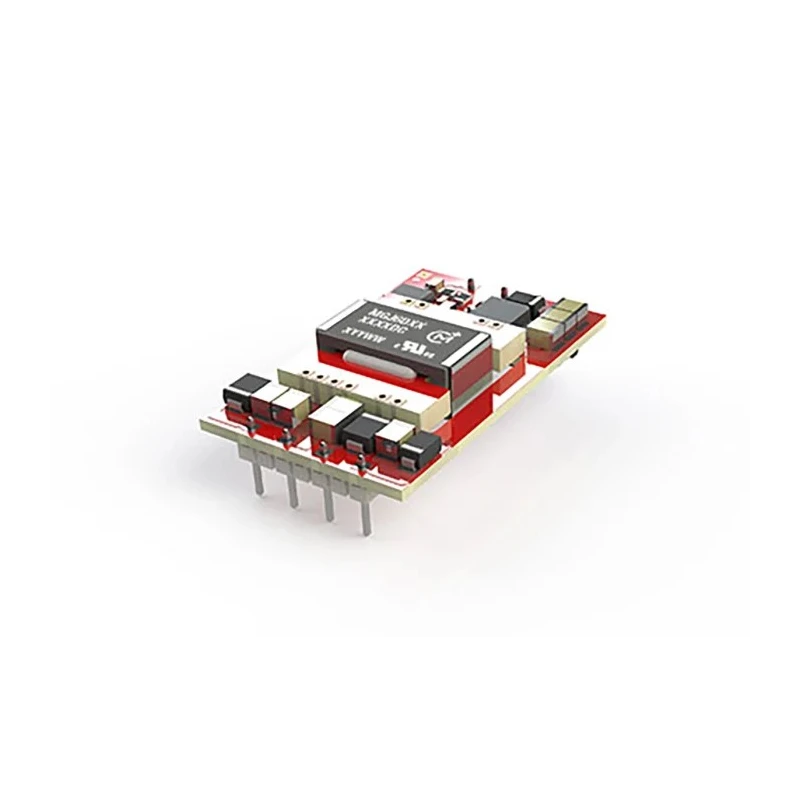

Murata Power Solutions DC/DC Converter, 20V dc Output, -5 V dc/240 mA Output, 9V dc Input, Operating Temperature -40°C MGJ6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 20V d |
| Brand | Murata Power Solutions |
| Length | 45.47mm |
| Model | MGJ6 |
| Depth | 9.88mm |
| Width | 27.81mm |
| Series | MGJ6 |
| Output Current | 240mA |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 20, -5V dc |
| Minimum Input Voltage | 9V dc |
Key Features
- Offers high isolation and ultra low coupling capacitance of 15pF for improved performance.
- Designed for gate drive circuits in IGBTs and MOSFETs within bridge circuits.
- Surface mount package structure facilitating compact PCB design.
- Continuous barrier withstand voltage of 3kV DC and isolation test voltage of 5.7kV DC ensures reliability.
- Maximum operating temperature of +105°C and minimum of -40°C enable use in harsh industrial environments.
- Ideal for motor drives, inverters, and various industrial electronic power management applications.
Product Description
Murata Power Solutions MGJ6 DC/DC Converter model MGJ6 is engineered to supply isolated, asymmetric bipolar output voltages of 20V and -5V at 240 mA output current with a minimum input voltage of 9V DC. Designed specifically for high-side and low-side gate drive circuits for IGBTs and MOSFETs, it optimizes system efficiency in bridge circuits.
This converter operates reliably across a wide temperature range from -40°C up to +105°C, making it suitable for demanding industrial environments. Its surface-mount package ensures easy mounting on printed circuit boards where space is at a premium. The device features a continuous barrier withstand voltage of 3 kV DC and withstands high isolation test voltages up to 5.7 kV DC, assuring long service life and enhanced system reliability.
With compact physical dimensions of 45.47 mm length, 27.81 mm width, and 9.88 mm depth, this power module fits perfectly in motor drives, inverters, and other industrial electronic power equipment requiring isolated power conversion. The ultra-low coupling capacitance of 15 pF further minimizes interference, enhancing signal integrity in sensitive applications.
High isolation and ultra low coupling capacitance of 15pF enhances performance in sensitive gate-drive circuits. Compact surface-mount package enables efficient PCB layout and space saving. Wide operating temperature range from -40°C to +105°C suitable for harsh environments.
Continuous barrier withstand voltage of 3 kV DC and isolation test voltage of 5.7 kV DC ensure robust insulation. Asymmetric bipolar output voltages of 20V and -5V DC with 240mA output current.
This DC/DC Converter from Murata Power Solutions is ideal for use in industrial, manufacturing, HVAC, motor-driven equipment, inverters, and power management systems. It supports efficient and reliable power supply solutions in applications demanding high electrical isolation, stable bipolar output voltages, and strong thermal endurance.
Explore more power conversion and voltage regulation solutions in the Electronics & Electricals category on EnvMart for comprehensive technical and industrial-grade products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides asymmetric bipolar output voltages of 20V and -5V DC.
The MGJ6 DC/DC Converter delivers a maximum output current of 240 mA.
It requires a minimum input voltage of 9V DC to function properly.
The device operates reliably within a temperature range of -40°C to +105°C.
This unit has dimensions of 45.47 mm in length, 27.81 mm in width, and 9.88 mm in depth.
The continuous barrier withstand voltage is rated at 3 kV DC.
It can withstand an isolation test voltage of up to 5.7 kV DC.
It features a surface-mount package structure, facilitating compact PCB design.
It is ideal for motor drives, inverters, and various industrial electronic power management applications.
The MGJ6 has an ultra-low coupling capacitance of 15 pF, which enhances performance in sensitive applications.
The country of origin for this converter is India.
This model is part of the MGJ6 series by Murata Power Solutions.
