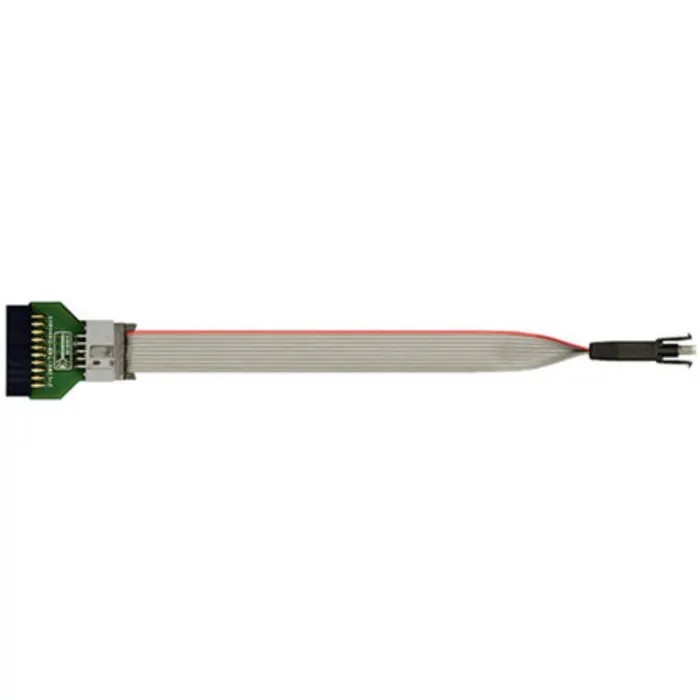

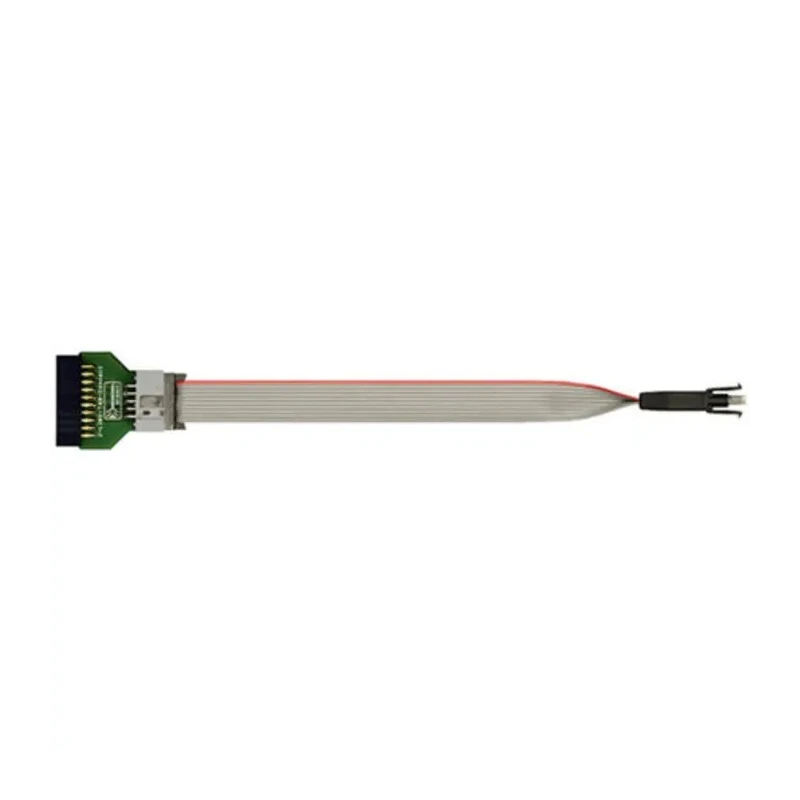

SEGGER Development Kit Accessory J-Link 10-Pin Needle Adapter 8.06.04 J-Link 10-Pin Needle Adapter

SEGGER 8.06.04 J-Link 10-Pin Needle Adapter is a specialized development kit accessory designed for connecting J-Link probes to printed circuit boards (PCBs) that lack mating connectors or dedicated programming headers. It provides a reliable interface for in-circuit programming and debugging in electronic development environments.

The adapter is compatible with a broad range of J-Link probes, including the J-Link BASE Emulator, J-Link PLUS, J-Link PRO, J-Link ULTRA+, J-Link EDU, Flasher ARM, and Flasher Portable models. Its high-quality spring pins ensure secure and consistent electrical connections to the target PCB, enhancing signal integrity and operational reliability during programming cycles.

With three locating pins strategically incorporated, the adapter physically prevents incorrect insertion orientation, safeguarding both the probe and the target hardware from potential damage. Its compact form factor occupies minimal PCB space, making it suitable for dense PCB layouts and embedded system development projects.

The adapter plugs into the 20-pin 0.1 inch J-Link probe connector, eliminating the need for additional connectors on the target PCB. It also does not require an external power source, although it provides the option to power the target hardware via the J-Link probe, simplifying test setups.

This accessory is widely used in industrial, laboratory, and manufacturing contexts where seamless and secure programming of embedded systems is critical. It supports efficient development cycles in electronics engineering, firmware development, and device testing applications.

The adapter enables connection of J-Link Probes to PCBs without mating connectors or programming headers. Compatible with multiple J-Link probe models for versatile development use. High-reliability spring pins ensure durable and stable electrical connection.

Three locating pins prevent accidental misconnection during installation. Compact footprint suitable for space-constrained PCB layouts. Directly plugs into 20-pin 0.1 inch J-Link probe connector. No need for external power supply; supports powering the target via J-Link.

This product belongs to the SEGGER brand and is part of the Development Tool Accessories category at EnvMart, supporting a wide range of development and debugging toolkits.
