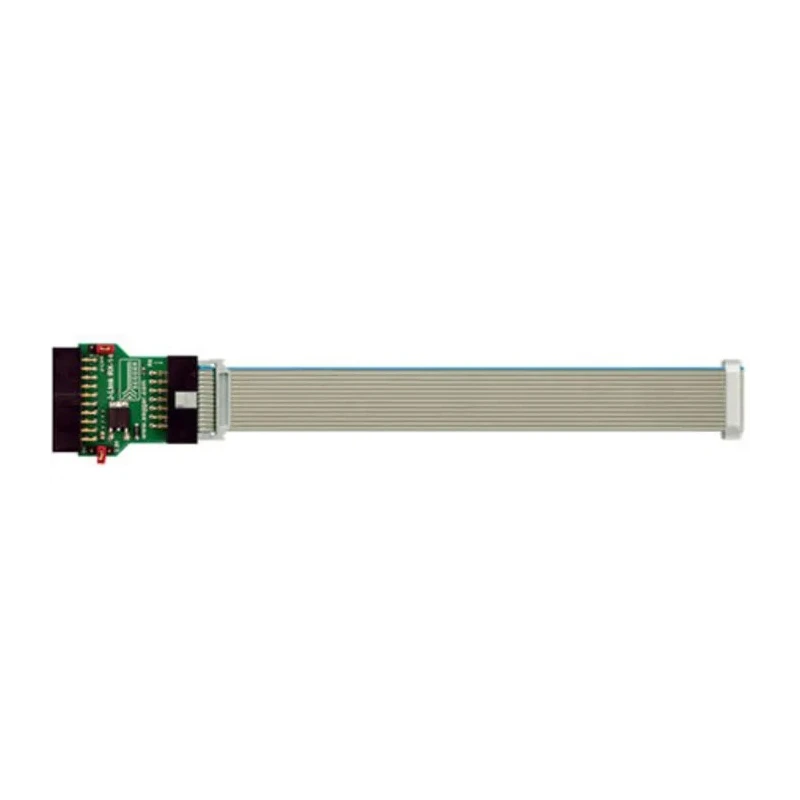

SEGGER Development Kit Accessory Adapter for Use with J-Link Probes 8.06.01 J-Link RX Adapter
Specifications
| Country of Origin | India |
|---|---|
| Brand | SEGGER |
| Model | 8.06.01 J-Link RX Adapter |
| Accessory Type | Adapter |
| For Use With | J-Link Probes |
| Connect via FINE | RX111/RX210/RX21A/RX220 |
| Connect via JTAG | RX610/RX621/RX62G/RX62N/RX62T/RX630/RX631/RX63N/RX63T |
| See Debug Probe | J-Link Base 131-1319 |
Key Features
- Maps from J-Link 20-pin 0.1in connector to 14-pin 0.1in Renesas connector.
- Allows JTAG and FINE connections to Renesas RX family microcontroller devices.
- Supports connection via FINE for RX111, RX210, RX21A, RX220 processors.
- Supports connection via JTAG for RX610, RX621, RX62G, RX62N, RX62T, RX630, RX631, RX63N, RX63T processors.
- Includes LF33CDT +3.3V at 500mA LDO voltage regulator for stable power supply.
- Features JTAG/FINE select link to switch between connection types.
- Input from J-Link probe via 20-pin 0.1in socket.
- Output to target device via RSK 14-pin header.
Product Description
SEGGER 8.06.01 J-Link RX Adapter is a specialized development kit accessory designed for seamless interfacing with J-Link probes, providing connectivity to Renesas RX family microcontrollers. It translates the standard J-Link 20-pin 0.1in connector to the 14-pin 0.1in Renesas connector enabling both JTAG and FINE debug connections.
This adapter supports processor varieties including RX111, RX210, RX21A, and RX220 via FINE connection, and RX610, RX621, RX62G, RX62N, RX62T, RX630, RX631, RX63N, RX63T via JTAG connections. It integrates an LF33CDT +3.3V at 500mA low dropout (LDO) voltage regulator to ensure consistent power supply during debugging sessions.
The device features a JTAG/FINE select link for toggling between connection modes, with input received through a 20-pin 0.1in socket from the J-Link probe and output provided to the target microcontroller through an RSK 14-pin header. Compatibility and reliability make it an essential tool accessory for professionals working with embedded Renesas RX microcontrollers in industrial, development, and testing environments.
Maps J-Link 20-pin connector to Renesas 14-pin connector for JTAG and FINE interfaces. Supports wide range of Renesas RX processors enhancing flexibility. Integrated +3.3V 500mA voltage regulator ensures stable operation.
Compact adapter facilitates easy deployment in debug setups. Ideal for software development, testing, and hardware debugging applications. Compatible with J-Link Base debug probe (RS stock no. 131-1319).
This high-quality Development Kit Accessory from SEGGER ensures efficient debugging workflows and improved productivity in embedded system development targeting Renesas RX microcontrollers. Explore EnvMart’s extensive range of development tools and accessories for comprehensive embedded system solutions.
