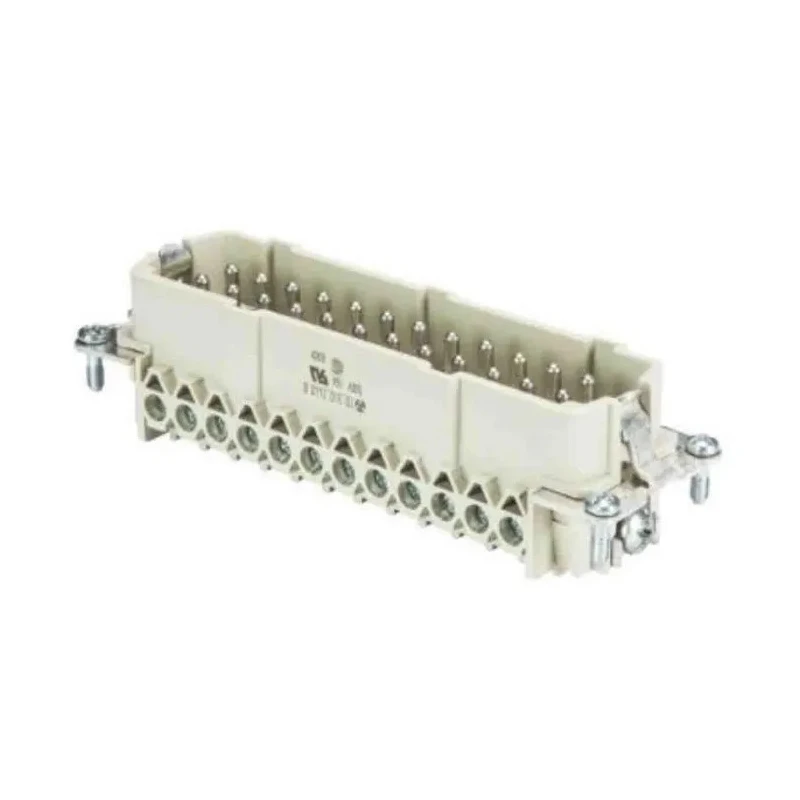

Wieland Male Insert Panel Mount Screw 24 Way 16A 500V Revos BASIC 70.310.2440.0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Wieland |
| Orientation | Straight |
| Current | 16A |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Series | Revos BASIC |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | DIN EN 61984, CSA, UL |
| Pole Format | 24+E |
| Contact Plating | Tin Plated |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- High-quality 24-way male insert designed for secure panel mounting applications.
- Rated for 16A current and 500V voltage for high-performance operation.
- Features screw termination for reliable and straightforward wiring.
- Straight orientation and 2-row layout for efficient integration.
- Robust copper alloy contacts with tin plating for excellent conductivity and durability.
- Wide operating temperature range from -40°C up to 120°C enhances versatility.
- V0 flammability class according to UL94 increases safety in demanding environments.
Product Description
The Wieland 70.310.2440.0 is an industrial-grade male insert connector specifically designed to be panel mounted in demanding environments. Part of the Revos BASIC series, this heavy duty component provides a secure, robust interface for electrical connections requiring high reliability.
This model features 24 contact points in a compact 2-row configuration, as well as an additional ground to ensure safe operation and proper earthing. The connector's rated maximum operating current of 16A and a voltage rating of 500V make it apt for power distribution in control panels, automation systems, heavy machinery, and industrial equipment where stability and performance are critical.
Screw terminal connections provide a secure and maintenance-friendly wiring method, allowing for easy installation and servicing, especially in industrial panels routinely subjected to vibration or demanding usage. The copper alloy contacts, tin-plated for enhanced corrosion resistance, deliver reliable electrical conduction over a long service life.
Designed with a straight orientation and panel mount configuration, the male insert is tailored for integration into fixed equipment. The UL94 V0 flammability class rating as well as adherence to internationally recognized standards such as DIN EN 61984, CSA, and UL certifications confirm its suitability for use in hazardous or highly regulated environments where safety is paramount.
The plug is engineered to operate effectively across a broad thermal range (-40°C - 120°C), making it suitable for both indoor and outdoor deployments in harsh environments. Typical applications include use in control panels, process automation, distribution boards, factory automation, electrical enclosures, water treatment facilities, and heavy industrial systems.
Overall, the Wieland 70.310.2440.0 male panel mount insert offers a combination of mechanical robustness, electrical capacity, and compliance essential for industrial, utility, and commercial electrical connector systems where reliability is a necessity.
To explore more panel-mounted industrial connectors and electrical components from Wieland and other leading brands, browse the Electronic Connector category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current rating for this male insert connector is 16A.
This model is rated for a voltage of 500V.
It operates effectively across a wide temperature range from -40°C to 120°C.
This male insert features a total of 24 contacts.
It utilizes a screw termination type for reliable wiring.
The connector has a straight orientation designed for panel mounting applications.
The contacts are made from copper alloy and are tin plated for enhanced conductivity and corrosion resistance.
This model complies with DIN EN 61984, CSA, and UL standards.
This connector is designed for panel mount installation.
The connector features a male contact gender.
The country of origin for this connector is India.
This male insert is suitable for applications in control panels, process automation, distribution boards, and heavy industrial systems.
