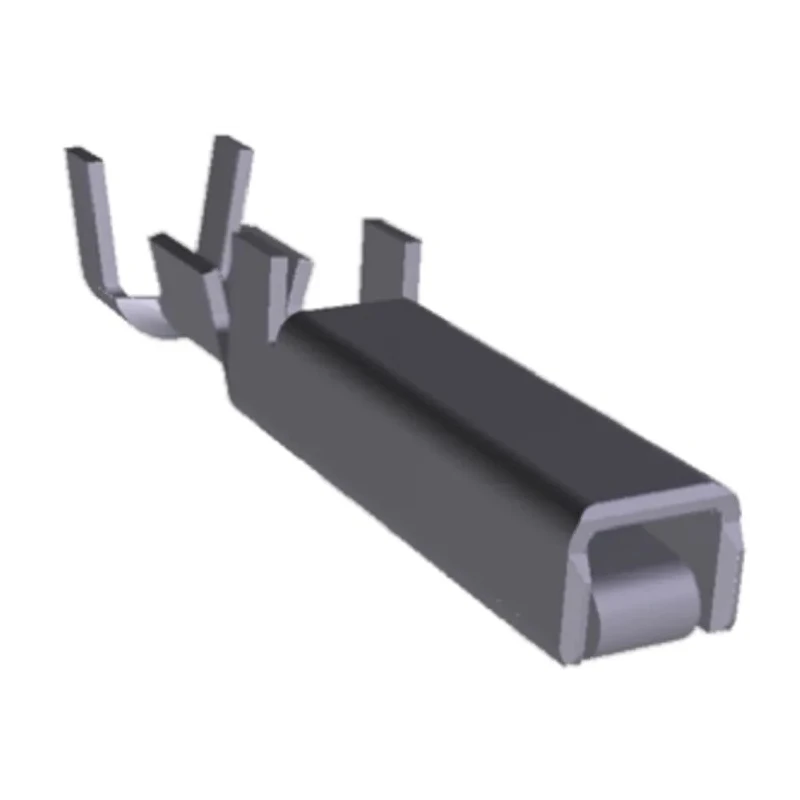

TE Connectivity Dynamic 3000 Female Crimp Terminal 24 - 20 AWG, 15A, Bright Tin, 17.8mm 1-175195-5
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Current | 15A |
| Length | 17.8mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Dynamic 3000 Connector Housing |
| Contact Plating | Bright Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Female crimp terminal for Dynamic 3000 connector housing.
- Supports 24 AWG minimum and 20 AWG maximum wire size.
- High current capacity of up to 15A for combined signal and power use.
- Bright tin plating on copper alloy contacts enhances electrical conductivity.
- Twist-resistant box design with three-point contact for reliability.
- Operates within -55°C to 105°C temperature range.
- Suitable for industrial machinery and vibration-prone environments.
Product Description
TE Connectivity 1-175195-5 is a Dynamic 3000 Series female crimp terminal designed for use in Dynamic 3000 connector housings. This terminal is engineered to support high-current combined signal and power transmission, with a rating up to 15A, making it suitable for demanding industrial machinery and commercial systems.
The contact is constructed from copper alloy with bright tin plating, providing excellent electrical conductivity and corrosion resistance. Its twist-resistant box type design incorporates three points of contact, which increases electrical reliability and ensures stable performance even in environments subjected to vibration.
This crimp terminal accommodates wires as small as 24 AWG and as large as 20 AWG, with minimum and maximum wire sizes of 0.2mm² and 0.5mm² respectively. It is compatible with standard crimp tooling procedures and can be easily inserted and locked into the Dynamic 3000 connector housing, providing a secure connection with an audible click. Removal is equally straightforward using the recommended extraction tooling.
The terminal operates reliably within a wide temperature range from -55°C up to 105°C, and can withstand repeated insertions and withdrawals thanks to its robust construction. For applications requiring increased durability, both standard and high-pressure versions are available, supporting use in environments with frequent motion or mechanical vibration.
Applications for this product include industrial machinery, signal and power distribution systems, control panels, and any scenario where the integrity of electrical connections is critical. These contacts are used extensively in combined signal and power implementations, ensuring safe and robust electrical terminations.
Key features include a high current capacity, reliable plating, and compatibility with Dynamic 3000 series housings. The product is manufactured in Japan, ensuring strict quality standards and engineering.
Browse more TE Connectivity connectors and terminals in the Electronic Connector category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal has a current capacity of up to 15A, making it suitable for combined signal and power transmission.
It accommodates wire sizes from 24 AWG (0.2mm²) to 20 AWG (0.5mm²).
The terminal operates reliably within a temperature range of -55°C to 105°C.
The contact is made from copper alloy and features bright tin plating for enhanced electrical conductivity and corrosion resistance.
It can be easily inserted and locked into the Dynamic 3000 connector housing, providing a secure connection with an audible click.
The length of this terminal is 17.8mm.
Yes, its twist-resistant box design and three-point contact enhance reliability, making it suitable for industrial machinery and vibration-prone environments.
This terminal uses a crimp termination type, compatible with standard crimp tooling procedures.
This terminal is manufactured in Japan, ensuring strict quality standards and engineering.
It is suitable for applications including industrial machinery, signal and power distribution systems, and control panels where electrical connection integrity is critical.
This terminal is a female crimp terminal, designed for use with Dynamic 3000 connector housings.
The contact features bright tin plating which enhances electrical conductivity and provides corrosion resistance.
