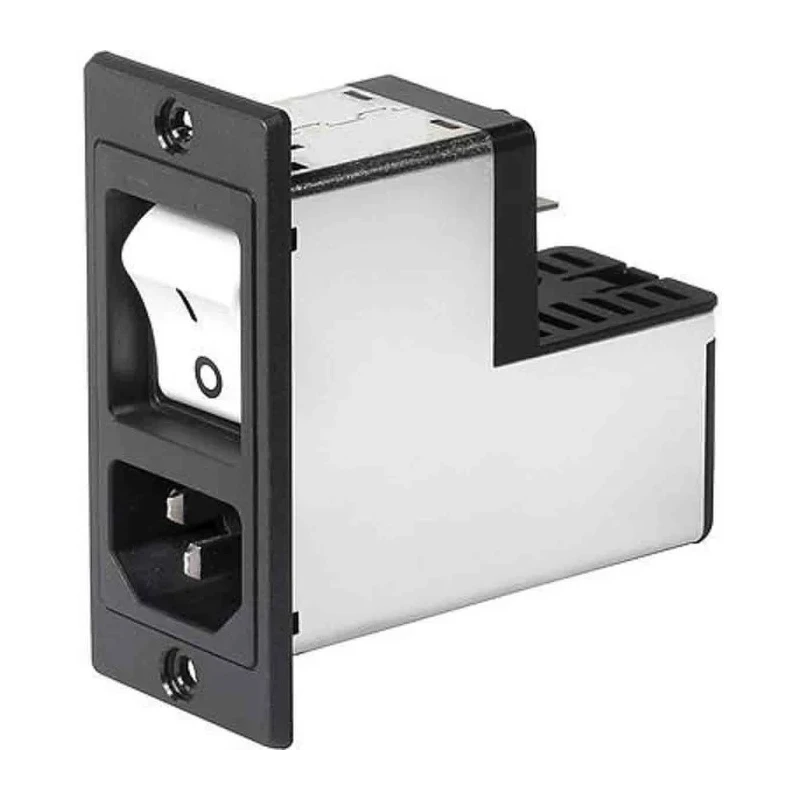

Schurter IEC Connector with Line Filter, Circuit Breaker TA35, C14, 250V AC, 6A, 2-Pole, DG12 Series, 3-109-560

The Schurter 3-109-560 is a high-performance IEC appliance inlet connector integrating a line filter and a TA35 two-pole circuit breaker. This module is purpose-built for reliable and safe connection of AC power in equipment such as industrial machinery, laboratory instrumentation, and sensitive electronic devices. With a rated voltage of 250V AC and current capacity of up to 6A, the connector provides efficient power management for both general industrial and medical applications.

The DG12 series product combines three essential functions: an appliance inlet for AC power entry, a circuit breaker for overload and short-circuit protection, and a line filter for suppressing electromagnetic interference (EMI). The integrated circuit breaker is available in both illuminated and non-illuminated forms, allowing the unit to provide immediate visual status and rapid power disconnection when needed. The filter is constructed for both standard and medical-grade requirements, making this IEC connector suitable for a wide range of demanding environments.

Designed with flexibility and ease of installation in mind, the 3-109-560 supports both screw and snap-in mounting from the front panel. Quick connect terminals (6.3 x 0.8 mm) facilitate fast electrical connections. The recessed rocker switch enhances safety and minimizes the risk of accidental operation, while the inclusion of a V-Lock cord retaining system ensures secure cable attachments in high-vibration installations.

This product operates reliably over a wide temperature range, from -25°C to 60°C, and is equipped to handle frequencies of 50 Hz or 60 Hz. With a compact panel-mount-ready housing of 76mm height and 81.6mm depth, it helps save valuable space in your equipment design while offering full functionality. The included 5x20 mm fuse slot further expands its protective features.

Schurter's IEC panel connectors are trusted worldwide in industrial equipment, medical devices, laboratory systems, and commercial power electronics. The 3-109-560 model is engineered for applications where power entry, line filtering, and overload protection must be consolidated in a single, space-efficient solution. Its robust performance and European-origin quality make it a dependable choice for equipment designers and maintenance professionals.
