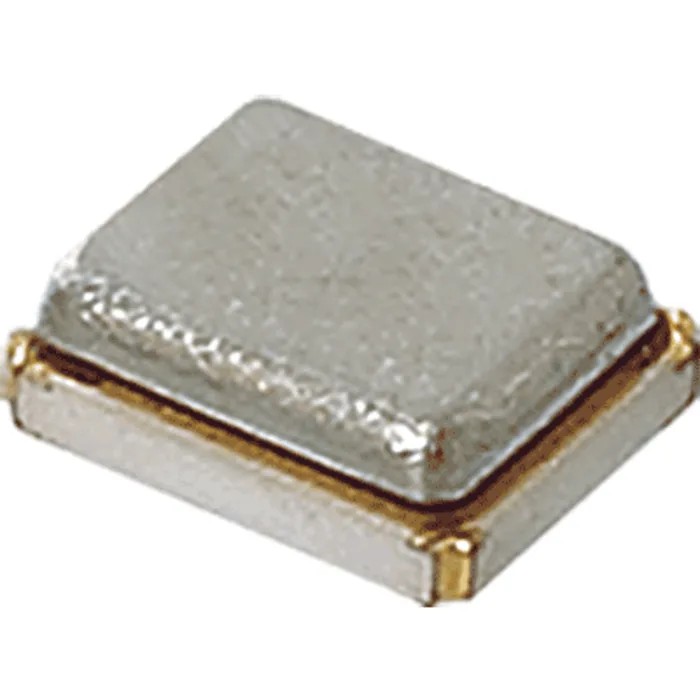

Murata 32 MHz Crystal Unit Surface Mount 4-Pin 1.6 mm x 2 mm x 0.65 mm ±10 ppm XRCGB32M000F1SBBR0

Murata XRCGB32M000F1SBBR0 32 MHz Crystal Unit is a high-precision surface mount electronic component designed for stable frequency oscillation with ±10 ppm tolerance. This 4-pin crystal unit has a compact footprint measuring 1.6 mm in length, 2 mm in width, and 0.65 mm in height, allowing for efficient use of PCB space and integration into modern small portable equipment and visual devices.

The crystal unit features an 8 pF load capacitance, which helps maintain frequency stability and load matching, essential for sensitive electronic circuits. Its operating temperature range from -40°C to 105°C ensures robust functionality in diverse environmental conditions, making it suitable for industrial, communication, and consumer electronics applications.

With a series resistance of 50 Ω, this crystal unit minimizes signal losses and contributes to the quality of waveform generation. The component is lead-free and compliant with the RoHS directive, supporting eco-friendly manufacturing and disposal practices.

Typical applications include PCs, visual equipment, and portable devices that rely on precise timing, such as Wi-Fi and Bluetooth communication clocks. The compact size and stability make it ideal for modern electronics requiring small and accurate frequency components.

Designed for surface mounting with a compact 4-pin package for easy PCB integration. Dimensions of 1.6 mm length, 2 mm width, and 0.65 mm height enable minimal board space usage. Standard frequency of 32 MHz supports applications requiring stable oscillations.

Load capacitance of 8 pF ensures accurate load matching and frequency stability. Operates in a temperature range from -40°C to 105°C for reliable performance in various environments. Series resistance of 50 Ω for effective signal quality and minimal losses.

Compliant with RoHS directive, ensuring lead-free and environmentally friendly construction. Suitable for use in communication clocks such as Wi-Fi and Bluetooth devices.

This Murata crystal unit provides high precision and compact form factor suitable for industrial, laboratory, telecommunications, and consumer electronics applications. It is an essential component for designers seeking reliable and efficient frequency control.
