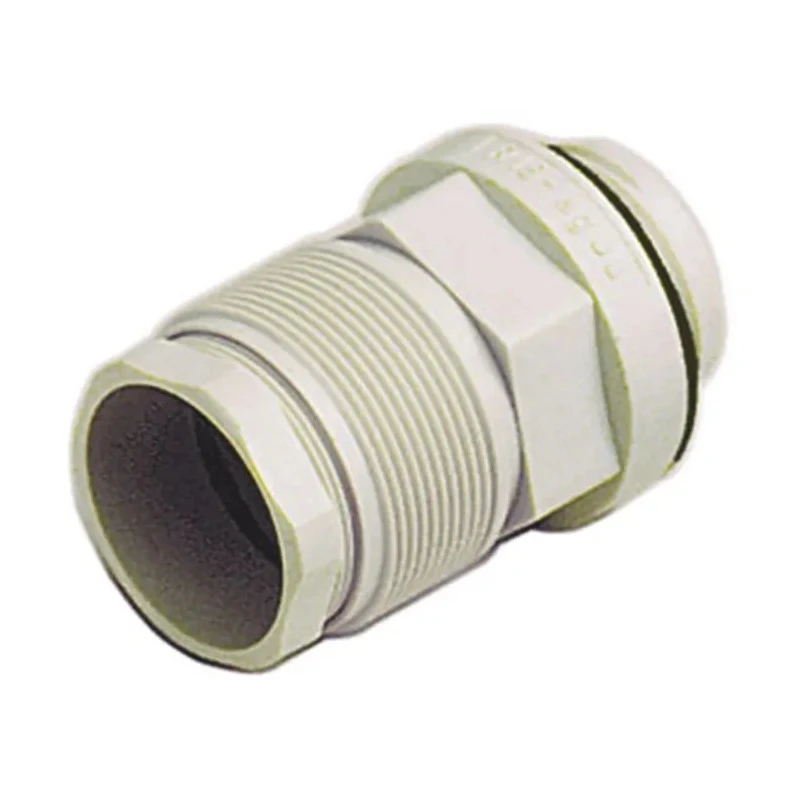

HARTING Industrial Circular Connector Housing, 3 Contacts, Screw Mount, 13.5 mm, Socket Male, IP65 09150000101
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 25V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 10A |
| IP Rating | IP65 |
| Mount Type | Screw |
| Housing Material | Polycarbonate, Thermoplastic |
| Contact Material | Copper Alloy |
| Series | R15 |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver over Gold Plated |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Mating Type | Screw Lock |
| Connector Size | 13.5 mm |
| Plug/Socket | Socket |
Key Features
- Features a 13.5 mm connector size suitable for industrial applications.
- The socket is male gender with a screw termination type for secure connections.
- Rated for IP65 protection, ensuring dust tight and water jet resistance.
- Operates at a voltage of 25V and current up to 10A.
- Constructed from polycarbonate and thermoplastic housing materials for durability.
- Contacts plated with silver over gold to guarantee corrosion resistance and excellent conductivity.
- Designed for temperature range -40°C to 125°C for versatile operation.
- Belongs to the robust R15 series with straight orientation and screw lock mating type.
Product Description
HARTING 09150000101 Industrial Circular Connector Housing is designed for demanding industrial environments. This housing accommodates 3 contacts with a screw mounting type, ensuring secure and stable electrical connections. The connector size is 13.5 mm, compatible with industry standard applications.
Constructed with a polycarbonate thermoplastic housing, the product is designed for robustness and longevity. High-quality contacts made of copper alloy with silver over gold plating provide excellent conductivity and resistance against corrosion, critical for reliable power and signal transmission.
Rated IP65, this housing resists ingress from dust and water jets, making it suitable for harsh industrial conditions. It supports an operating voltage of 25V and a current rating of 10A. The temperature range spans from -40°C to 125°C, allowing the connector to function optimally under extreme temperature variations.
The connector is a socket with male contact gender, featuring screw type termination and a screw locking mating type, which strengthens connection security and prevents accidental disconnections in vibration-prone environments.
Part of the HARTING R15 series, this industrial circular connector is designed for applications requiring compact, durable connectors with easy and reliable mounting options. It finds use in manufacturing, automation, machinery interfaces, and other industrial electrical assembly tasks.
Features a 13.5 mm connector size suitable for industrial applications. The socket is male gender with a screw termination type for secure connections. Rated for IP65 protection, ensuring dust tight and water jet resistance.
Operates at a voltage of 25V and current up to 10A. Constructed from polycarbonate and thermoplastic housing materials for durability. Contacts plated with silver over gold to guarantee corrosion resistance and excellent conductivity.
Designed for temperature range -40°C to 125°C for versatile operation. Belongs to the robust R15 series with straight orientation and screw lock mating type. Ideal for industrial circular connector applications needing reliable performance.
This product is manufactured in Germany under strict quality control. It serves critical roles in industrial electrical systems and provides reliable interconnection solutions for harsh environments. Explore more HARTING connectors and industrial electrical components in the Electronics & Electrical category at EnvMart.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector housing is 10A.
This model operates at a voltage of 25V.
It is rated IP65, ensuring it is dust-tight and resistant to water jets.
The housing is constructed from polycarbonate and thermoplastic materials.
It is designed to operate within a temperature range of -40°C to 125°C.
This connector housing accommodates 3 contacts.
It features a screw termination type for secure connections.
The contact gender of this connector is male.
This connector is part of the HARTING R15 series.
It supports screw mounting for stable electrical connections.
The contacts are plated with silver over gold to ensure corrosion resistance and excellent conductivity.
It is manufactured in Germany under strict quality control.
