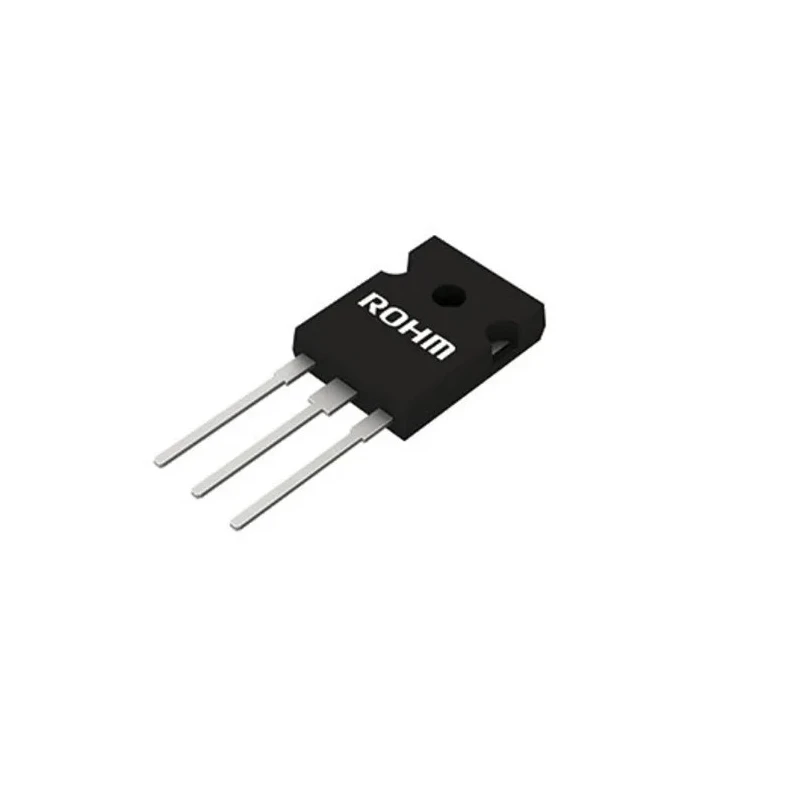

ROHM 1200 V 30 A Rectifier & Schottky Diode Schottky 3-Pin TO-247N SCS230KE2GC11

Free Delivery in India | Lowest Global Shipping Charges

ROHM 1200 V 30 A Rectifier & Schottky Diode Schottky 3-Pin TO-247N SCS230KE2GC11

Name: ROHM 1200 V 30 A Rectifier & Schottky Diode Schottky 3-Pin TO-247N SCS230KE2GC11
Brand: ROHM
SKU: 173671
Price: 20.28 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Model	SCS230KE2GC11
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	TO-247N
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	300μA
Peak Non-Repetitive Forward Surge Current Ifsm	480A
Maximum Forward Voltage Vf	1.8V

Key Features

Supports a peak reverse repetitive voltage of 1200 V for reliable blocking.
Maximum continuous forward current is 30 A for heavy-duty applications.
Packages in TO-247N through-hole with 3-pin configuration for easy mounting.
Peak reverse current limited to 300 μA ensuring low leakage.
Maximum forward voltage drop of 1.8 V minimizes power loss.
Operating temperature ranges from -55°C to 175°C for wide environmental tolerance.
High peak non-repetitive forward surge current at 480 A supports transient loads.
Construction optimized to reduce recovery time and support high-speed switching.

Product Description

ROHM SCS230KE2GC11 Rectifier & Schottky Diode Schottky 3-Pin TO-247N is a silicon carbide diode designed for power electronics applications requiring high efficiency and reliability. It features a 1200 V peak reverse repetitive voltage rating and a continuous forward current capacity of 30 A, suitable for demanding industrial and commercial environments.

The diode's TO-247N package enables durable through-hole mounting, making integration into power supply circuits straightforward. Its single diode configuration provides efficient rectification with minimal forward voltage drop of 1.8 V to reduce conduction losses. The device supports high peak surge currents of up to 480 A, ensuring robustness against transient conditions.

This diode operates reliably across a wide temperature range from -55°C to a maximum of 175°C, enabling use in harsh environments such as automotive electronics and renewable energy systems like solar inverters. The low peak reverse current of 300 μA contributes to overall system efficiency by minimizing leakage currents.

ROHM's SCS series silicon carbide Schottky diodes exhibit low recovery time and reduced temperature dependence, allowing for high-speed switching essential in modern power conversion technologies. Compliance with RoHS directives ensures environmental safety and regulatory compliance.

Supports a maximum continuous forward current of 30 A and peak reverse repetitive voltage of 1200 V. 3-pin TO-247N package for secure mechanical and electrical connection. Wide operational temperature range from -55°C to 175°C suitable for industrial use.

Low forward voltage and reverse leakage current improve energy efficiency. High surge current capability at 480 A for transient events. Ideal for switch mode power supplies, uninterruptible power supplies, solar inverters, motor drives, air conditioners, and electric vehicle charging applications.

This product is targeted at engineers and manufacturers seeking reliable rectification and protection diodes for demanding power electronic circuits. Browse the Electronics & Electricals Semiconductor catalog on EnvMart for a full range of Schottky diodes and rectifiers from top brands like ROHM.
