Cynergy3 RSF70 Series Horizontal Viton Float Switch, 1 m Cable, NO/NC, 300 V AC/DC Max, 1A RSF77H100GV/RS

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 RSF70 Series Horizontal Viton Float Switch, 1 m Cable, NO/NC, 300 V AC/DC Max, 1A RSF77H100GV/RS

Name: Cynergy3 RSF70 Series Horizontal Viton Float Switch, 1 m Cable, NO/NC, 300 V AC/DC Max, 1A RSF77H100GV/RS
Brand: Cynergy3
SKU: 194739
Price: 60.65 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF77H100GV/RS
Cable Length	1m
Mount Type	Horizontal
Housing Material	Polyvinyl Fluoride
Series	RSF70
Maximum Operating Temperature	105°C
Switch output	NO/NC
Minimum Operating Temperature	-10°C
Maximum Current	1A
Maximum dc Voltage	300V dc
Standards/Approvals	UL File No.E171218
Maximum AC Voltage	300V ac
Gasket Material	Viton

Key Features

The float switch is designed for horizontal mounting for ease of installation.
It features a Viton gasket which ensures chemical resistance and a leakproof seal.
Supports a maximum switching current of 1A to optimize energy efficiency.
Operates within a wide temperature range of -10°C to 105°C, suitable for harsh industrial environments.
Capable of handling maximum AC and DC voltages of 300V each.
The housing is constructed of durable Polyvinyl Fluoride (PVDF), resistant to solvents, acids, and bases.
Switch function can be toggled between Normally Open (NO) and Normally Closed (NC) by rotating the switch 180° during installation.
Suitable for use in industrial tanks, commercial dishwashers, auxiliary vehicle tanks, and vending machines.

Product Description

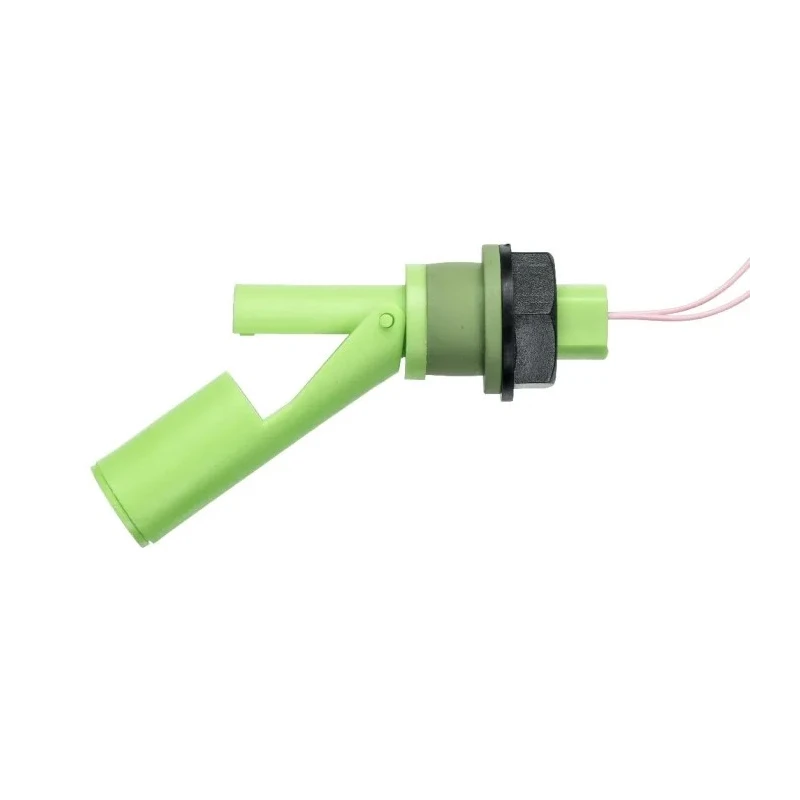

Cynergy3 RSF77H100GV/RS Horizontal Viton Float Switch with 1 m cable is engineered for efficient liquid level monitoring and control in commercial and industrial tanks. This float switch from the RSF70 Series is notable for its chemical-resistant Polyvinyl Fluoride (PVDF) housing, making it highly durable against solvents, acids, and bases encountered in demanding environments.

The device operates effectively across a temperature range of -10°C to 105°C, making it well-suited for various industrial, agricultural, HVAC, and manufacturing applications where reliable fluid detection is critical.

This float switch allows flexibility with a switch function that can be switched from Normally Open (NO) to Normally Closed (NC) by rotating it 180° during installation. The inclusion of a Viton gasket enhances chemical resistance and ensures an effective, leakproof seal, which is essential for maintaining system integrity.

Designed for horizontal mounting externally on tank walls, it eliminates the need for internal access, providing a practical solution for hard-to-access tanks. It supports a maximum switching current of 1 A and can handle maximum AC and DC voltages of 300 V, supporting efficient and reliable electrical performance.

Horizontal mounting for ease of installation on tank walls. Viton gasket for chemical resistance and leakproof operation. 1 A maximum switching current for efficient energy usage. Wide operating temperature range from -10°C to 105°C.

Maximum AC/DC voltage rating of 300 V. Durable Polyvinyl Fluoride housing for harsh chemical environments. Switch function can toggle between NO and NC for versatile applications. Ideal for industrial tanks, commercial dishwashers, and vending machines.

External mounting eliminates the need for tank interior access.

This float switch is an excellent component for industrial automation, water treatment, and process control systems where precise liquid level monitoring is required. It ensures system reliability, energy efficiency, and chemical resistance in challenging environments.
